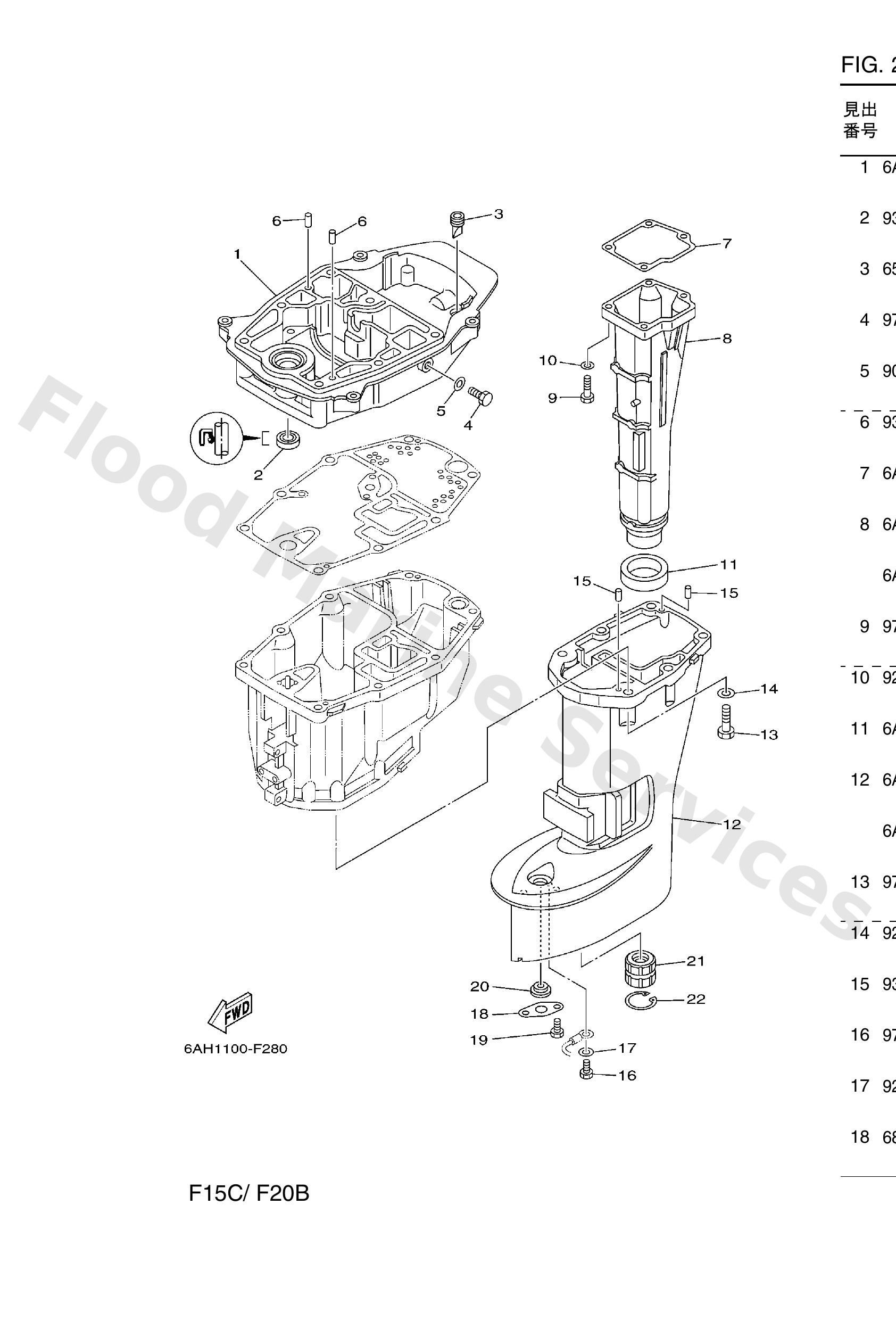

Diagram: アツパーケーシング

Diagram

Parts List

6AH41137005B
Guide, exhaust
Diagram Reference: 1
Get Part
9310112M63
Oil seal
Diagram Reference: 2
Get Part
65W4271700
Rubber, seal 2
Diagram Reference: 3
Get Part
9709508014
Bolt, hexagon deep recess
Diagram Reference: 4
Get Part
9043008143
Gasket (256-11198-00)
Diagram Reference: 5
Get Part
9360619M23
Pin, dowel
Diagram Reference: 6
Get Part
6AH4113400
Gasket, exhaust manifold
Diagram Reference: 7
Get Part
6AH14711005B
Muffler 1
Diagram Reference: 8
Get Part
6AH14711105B
Muffler 1
Diagram Reference: 8
Get Part
9707506025
Bolt
Diagram Reference: 9
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 10
Get Part
6AH4113800
Seal, ext. 1
Diagram Reference: 11
Get Part
6AH45111004D
Casing, upper
Diagram Reference: 12
Get Part
6AH45111104D
Casing, upper
Diagram Reference: 12
Get Part
9707508030
Bolt, hexagon (fj1)
Diagram Reference: 13
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 14
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 15
Get Part
9709505010
Bolt (682)
Diagram Reference: 16
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 17
Get Part
68T4532100
Plate
Diagram Reference: 18
Get Part
9709506008
Bolt (fj1)
Diagram Reference: 19
Get Part
9048014M54
Grommet
Diagram Reference: 20
Get Part
6824531800
Bushing, drive shaft
Diagram Reference: 21
Get Part
9342030042
Circlip (650)
Diagram Reference: 22
