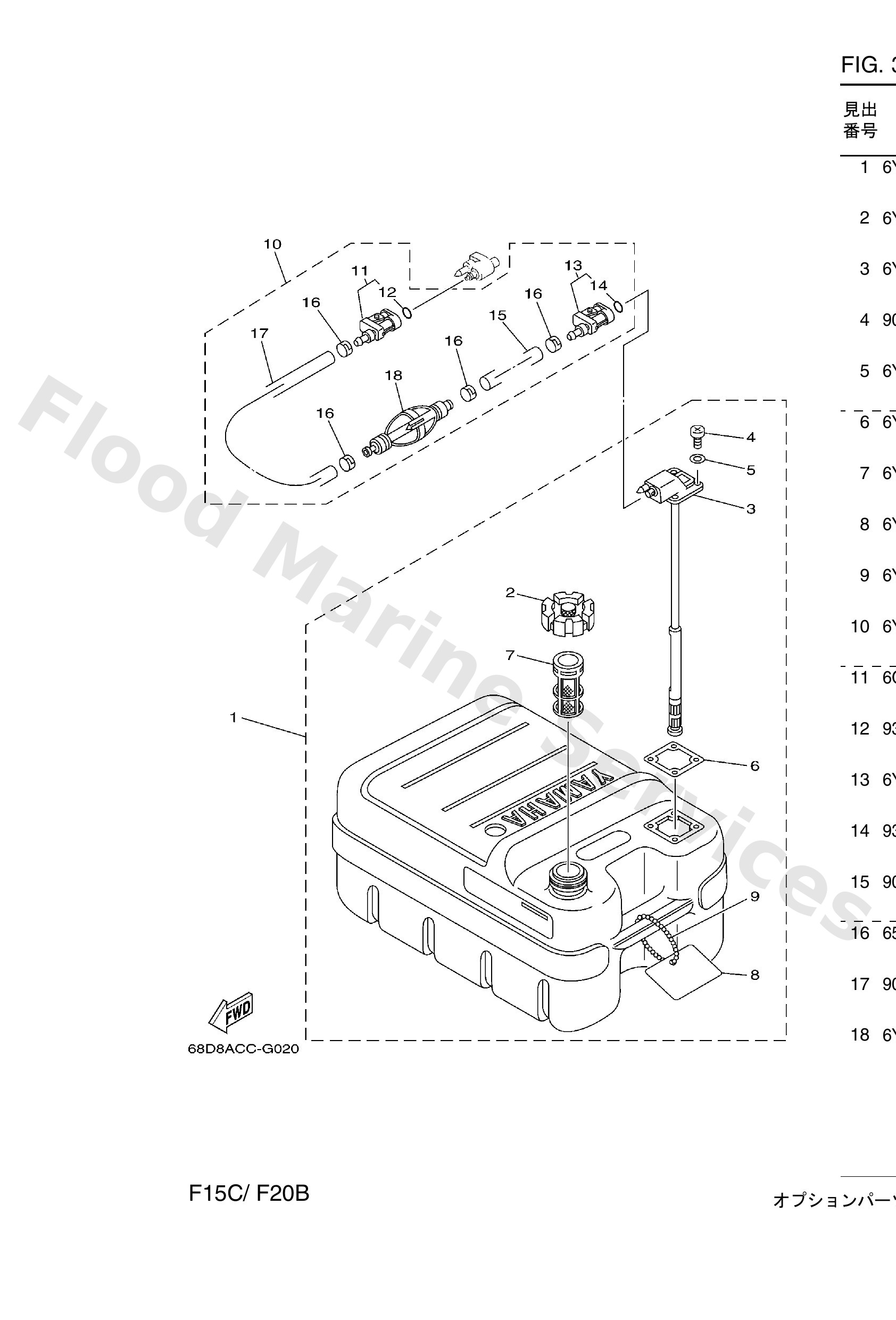

Diagram: フユエルタンク
Parts List
Cap assembly
Diagram Reference: 2
Fuel meter assembly
Diagram Reference: 3
Screw, pan head
Diagram Reference: 4
Seal
Diagram Reference: 5
Gasket, fuel meter
Diagram Reference: 6
Strainer
Diagram Reference: 7
ラベル , コーシヨン
Diagram Reference: 8
チエーン , ボール
Diagram Reference: 9
Fuel pipe comp. 1
Diagram Reference: 10
Fuel pipe joint comp. 2
Diagram Reference: 11
O-ring (655)
Diagram Reference: 12
Fuel pipe joint comp. 2
Diagram Reference: 13
Hose (l3000)
Diagram Reference: 15
Band 1
Diagram Reference: 16
Hose (l1000)
Diagram Reference: 17
Primer pump assembly
Diagram Reference: 18
