Yamaha Outboard Parts - 2ND HELM HARNESS - Helm Master EX (2020)

6X98258A10 (UR)

2nd st harness (p) 8m-26ft

Diagram Reference: 1

6X98258A20 (UR)

2nd st harness (p) 12m-38ft

Diagram Reference: 1

6X98258A00 (UR)

2nd st harness (p) 5m-16ft

Diagram Reference: 1

6Y88537101

End of line resister

Diagram Reference: 2

6X98258A50 (UR EXCEPT SINGLE ENGINE)

2nd st harness (s) 12m-38ft

Diagram Reference: 3

6X98258A40 (UR EXCEPT SINGLE ENGINE)

2nd st harness (s) 8m-26ft

Diagram Reference: 3

6X98258A30 (UR EXCEPT SINGLE ENGINE)

2nd st harness (s) 5m-16ft

Diagram Reference: 3

6X98258A80 (UR TRIPLE/QUAD ENGINE)

2nd st harness (c) 12m-38ft

Diagram Reference: 4

6X98258A70 (UR TRIPLE/QUAD ENGINE)

2nd st harness (c) 8m-26ft

Diagram Reference: 4

6X98258A60 (UR TRIPLE/QUAD ENGINE)

2nd st harness (c) 5m-16ft

Diagram Reference: 4

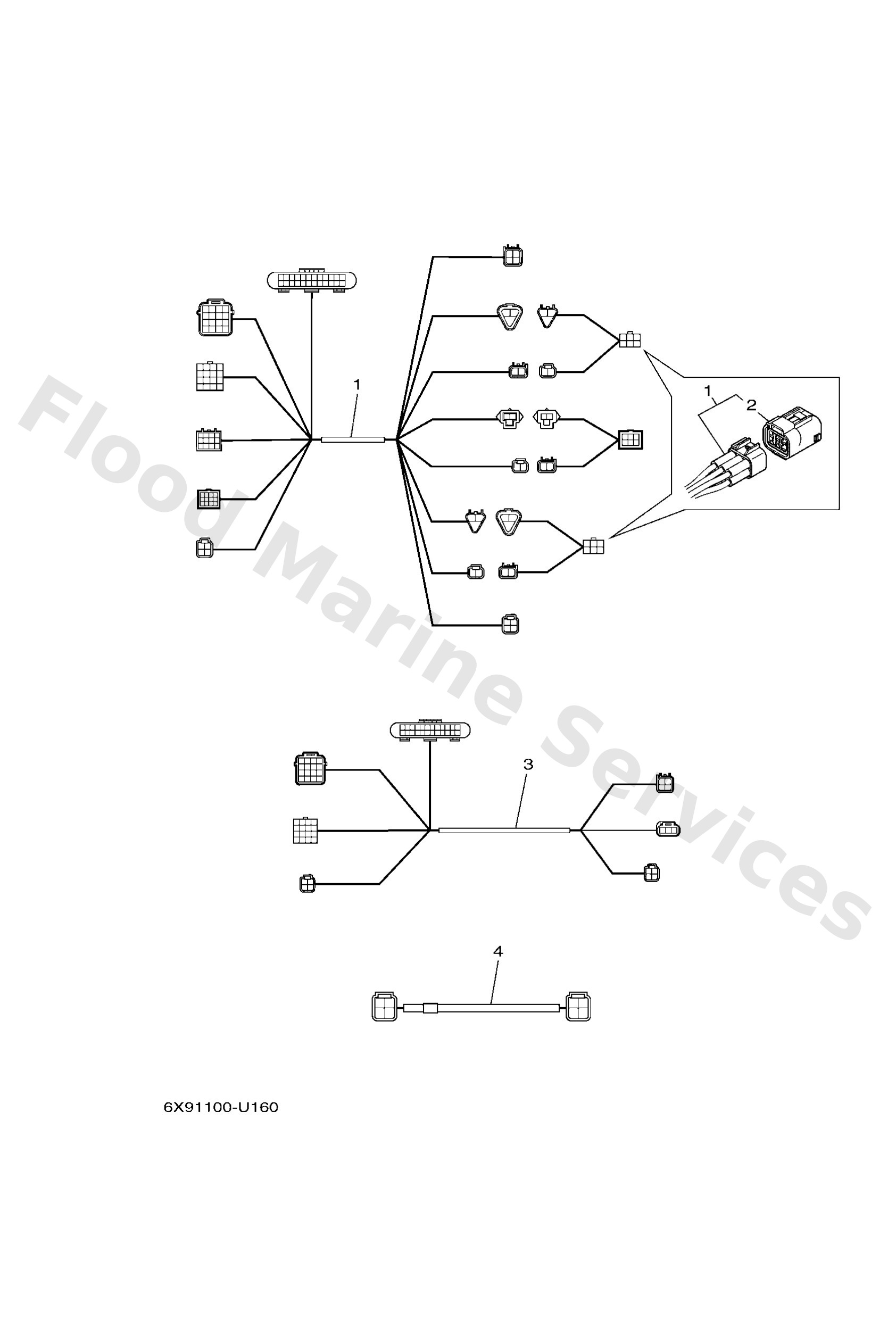

Diagram: 2ND HELM HARNESS
