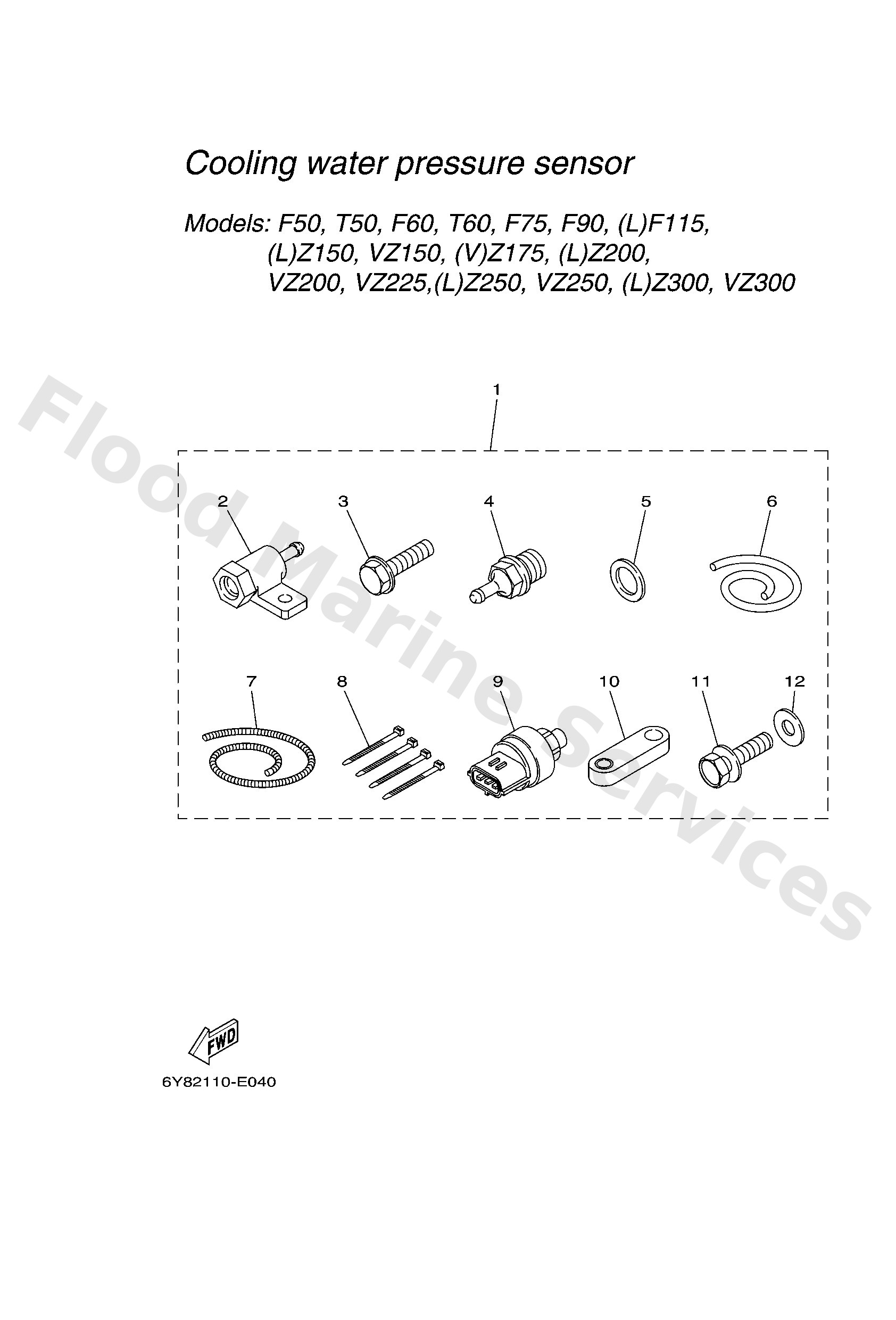

Diagram: ALTERNATE 2

Diagram

Parts List

60V8A4L001 (LM)
Sensor, module
Diagram Reference: 1
Get Part
60V8366D00
Adaptor, input
Diagram Reference: 2
Get Part
9589506025 (EXCEPT F50/T50/F60/T60)
Bolt, flange deep recess
Diagram Reference: 3
Get Part
60V8366700
Sender, water pressure
Diagram Reference: 4
Get Part
9043014115
Gasket (663)
Diagram Reference: 5
Get Part
9044507018
Hose (l1457)
Diagram Reference: 6
Get Part
9044707015
Hose, cover (l: 1300mm)
Diagram Reference: 7
Get Part
9046511M10
Clamp
Diagram Reference: 8
Get Part
6Y58366B00
Sensor, water pressure
Diagram Reference: 9
Get Part
60V8257V00 (HPDI MODELS)
Plate, connector
Diagram Reference: 10
Get Part
9709506016 (F50/T50/F60/T60)
Bolt, hexagon deep recess
Diagram Reference: 11
Get Part
9299506600 (F50/T50/F60/T60)
Washer, plain (646)
Diagram Reference: 12
Get Part
