50DEMTO (1991)
Alternate 2

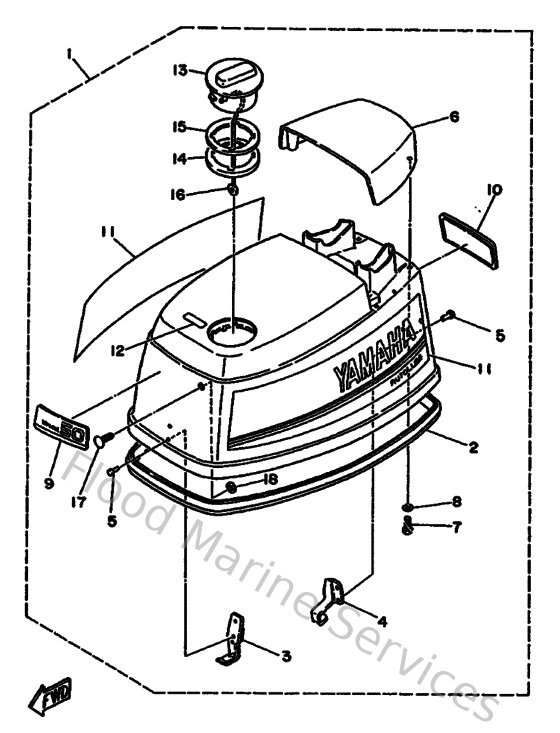

Diagram: Alternate 2
Parts List
Reference
Description
Price
2
6H4426150000
Seal
Loading…
↗
3
6H4426510000
Hook 1
Loading…
↗
4
6H4426520000
Hook 2
Loading…
↗
5
9026604M0100
Rivet (689)
Loading…
↗
7
973950601600
Bolt, hexagon deep recess
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
13
6H12177H0200
Disk cap 2
Loading…
↗
14
6H3217320000
Seal 1
Loading…
↗
15
6H3217350000
Seal 2
Loading…
↗
16
6H1426940000
Band
Loading…
↗
17
9033805M1200
Plug(6h4)
Loading…
↗
18
9018305M0600
Nut, spring(6h4)
Loading…
↗
