25QEO (1996)
Alternate 2 ((PARTIE ELECTRIQUE : 25VEN/30)

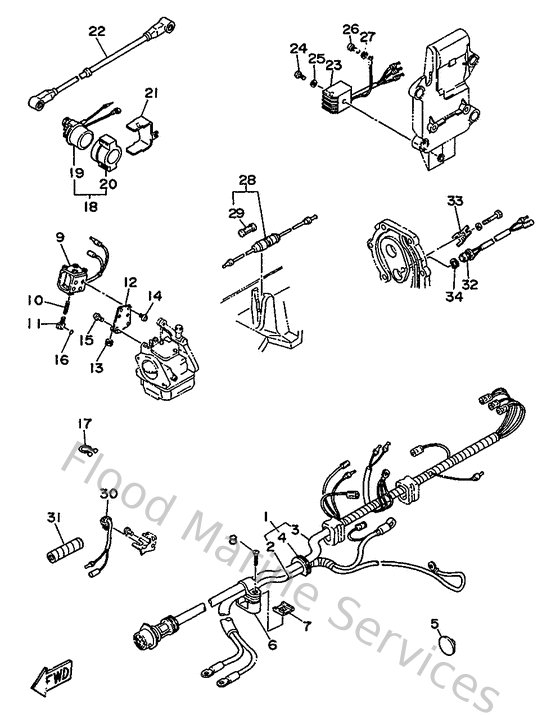

Diagram: Alternate 2 ((PARTIE ELECTRIQUE : 25VEN/30)
Parts List
Reference
Description
Price
1
61T825800000
Wire harness assembly 2
Loading…
↗
2
61T825900000
Wire harness assembly
Loading…
↗
3
689821051300
Battery cable
Loading…
↗
4
689427245000
Grommet
Loading…
↗
5
904801716500
Grommet(663)
Loading…
↗
6
689825940000
Clamp
Loading…
↗
7
682425250000
Plate, friction 1
Loading…
↗
8
9016106M0000
Screw, tapping(6e7)
Loading…
↗
9
61T861110000
Coil, solenoid
Loading…
↗
10
682861160000
Wire, pull
Loading…
↗
11
682861170000
Hook, wire pull
Loading…
↗
12
61T861120000
Stay, solenoid
Loading…
↗
13
904801015500
Grommet(664)
Loading…
↗
14
985800400600
Screw, pan head (7h3)
Loading…
↗
15
985800501200
Screw,pan head (646)
Loading…
↗
16
932100326100
O-ring (663)
Loading…
↗
17
904651814700
Clamp
Loading…
↗
18
6G1819411000
Starter relay
Loading…
↗
20
6G1819520000
Holder, relay
Loading…
↗
21
61T819450000
Plate, Switch Fitting
Loading…
↗
22
689825310200
Wire, lead
Loading…
↗
23
664819706200
Rectifier assembly
Loading…
↗
24
985800552500
Screw, panhead (a93)
Loading…
↗
25
929900560000
Washer, plain (646)
Loading…
↗
26
970800601200
Bolt(gh1)
Loading…
↗
27
929950610000
Washer(6a1)
Loading…
↗
28
682821501000
Fuse holder assembly
Loading…
↗
29
682821510000
Fuse
Loading…
↗
30
689825400100
Neutral switch ass'y
Loading…
↗
31
9044610M0200
Tube (6e5)
Loading…
↗
32
61T825600000
Thermo switch assembly
Loading…
↗
33
61T825880000
Plate
Loading…
↗
34
990091750000
Circlip(24h)
Loading…
↗
