50DEMTO (1993)
Alternate 4

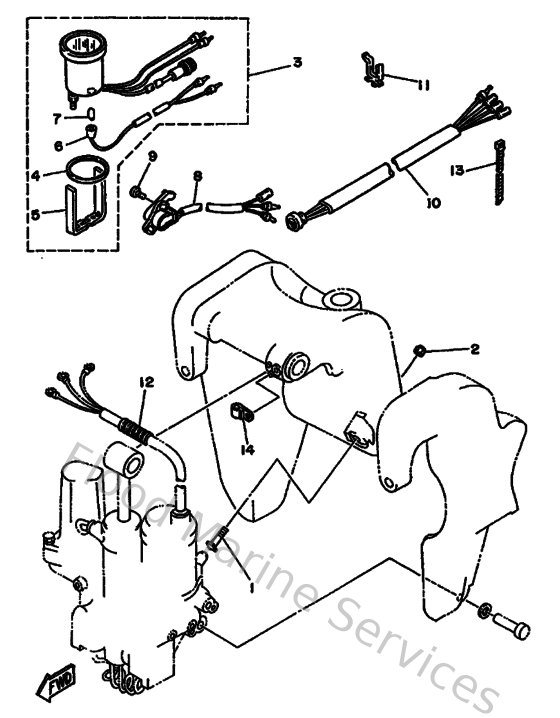

Diagram: Alternate 4
Parts List
Reference
Description
Price
1
688433760100
Bolt, thrust receiver
Loading…
↗
2
957800830000
Nut, nylon (6j8)
Loading…
↗
3
6Y5836701000
Pro Series 11 Trim Meter (Black)
Loading…
↗
4
688836640000
Damper
Loading…
↗
5
6Y5835770000
Plate, fitting
Loading…
↗
6
6Y5835362000
Socket, Meter
Loading…
↗
7
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…
↗
8
6H5836720000
Trim Sender
Loading…
↗
9
985800601600
Screw pan head
Loading…
↗
10
6E5825531000
Extension, Wire Harness
Loading…
↗
11
9046409M1300
Clamp (6h1)
Loading…
↗
12
9044014M0000
Pipe(6h4)
Loading…
↗
13
9046511M1000
Clamp
Loading…
↗
14
904650802800
Clamp (1e6)
Loading…
↗
