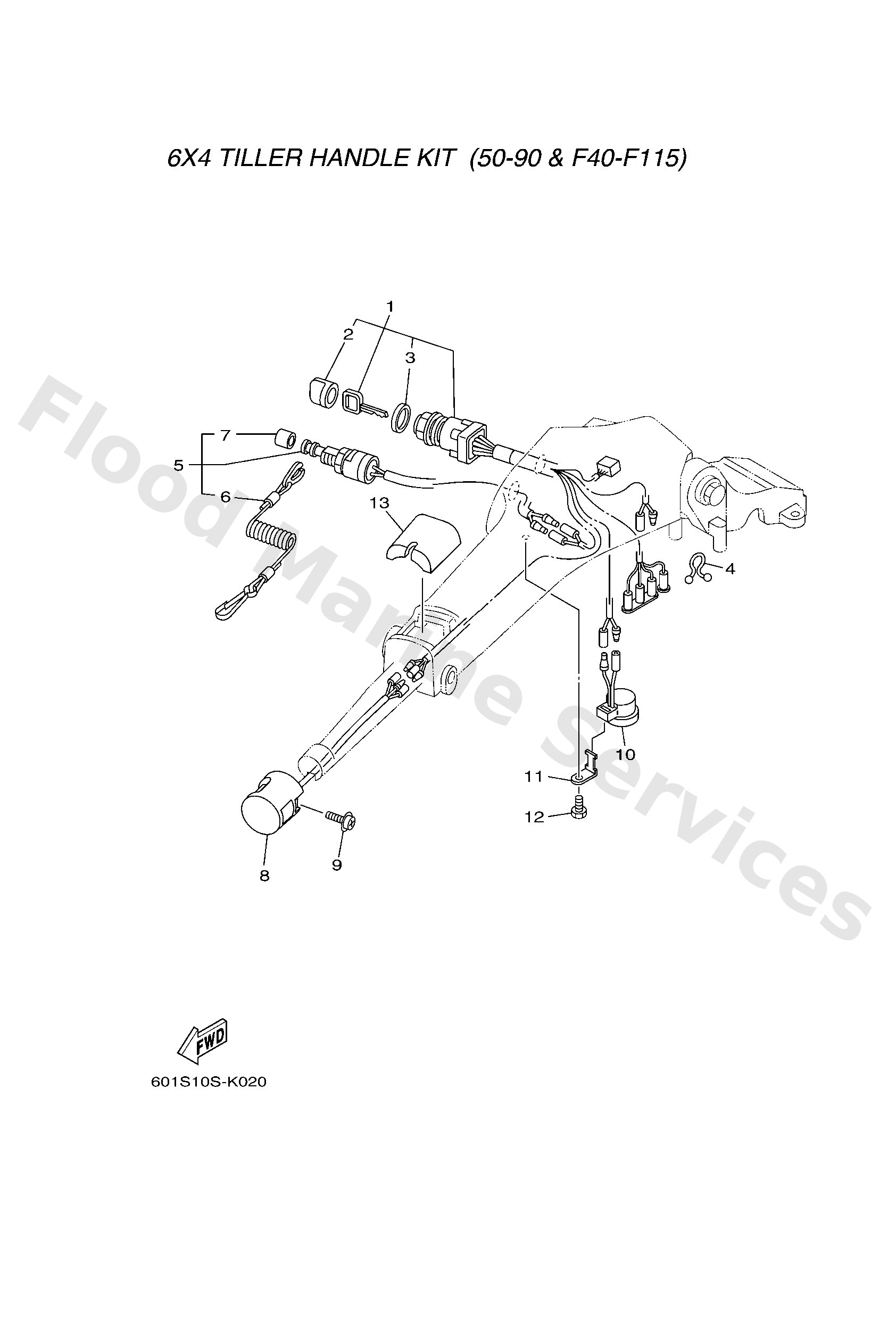

Diagram: BASE HANDLE ELECTRICAL

Diagram

Parts List

6X48251001
Main switch assembly
Diagram Reference: 1
Get Part
6768257701
Cap, key
Diagram Reference: 2
Get Part
7038253200
Cap
Diagram Reference: 3
Get Part
9046408M07
Clamp
Diagram Reference: 4
Get Part
69W8257500
Engine stop switch assembly
Diagram Reference: 5
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 6
Get Part
6898257Y00
Cap
Diagram Reference: 7
Get Part
6X48256300
Trim & tilt switch assembly
Diagram Reference: 8
Get Part
9798006216
Screw, with washer(6h2)
Diagram Reference: 9
Get Part
6X48338300
Buzzer
Diagram Reference: 10
Get Part
6X48338600
Stay, buzzer
Diagram Reference: 11
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 12
Get Part
6X48194201
Cover
Diagram Reference: 13
Get Part
