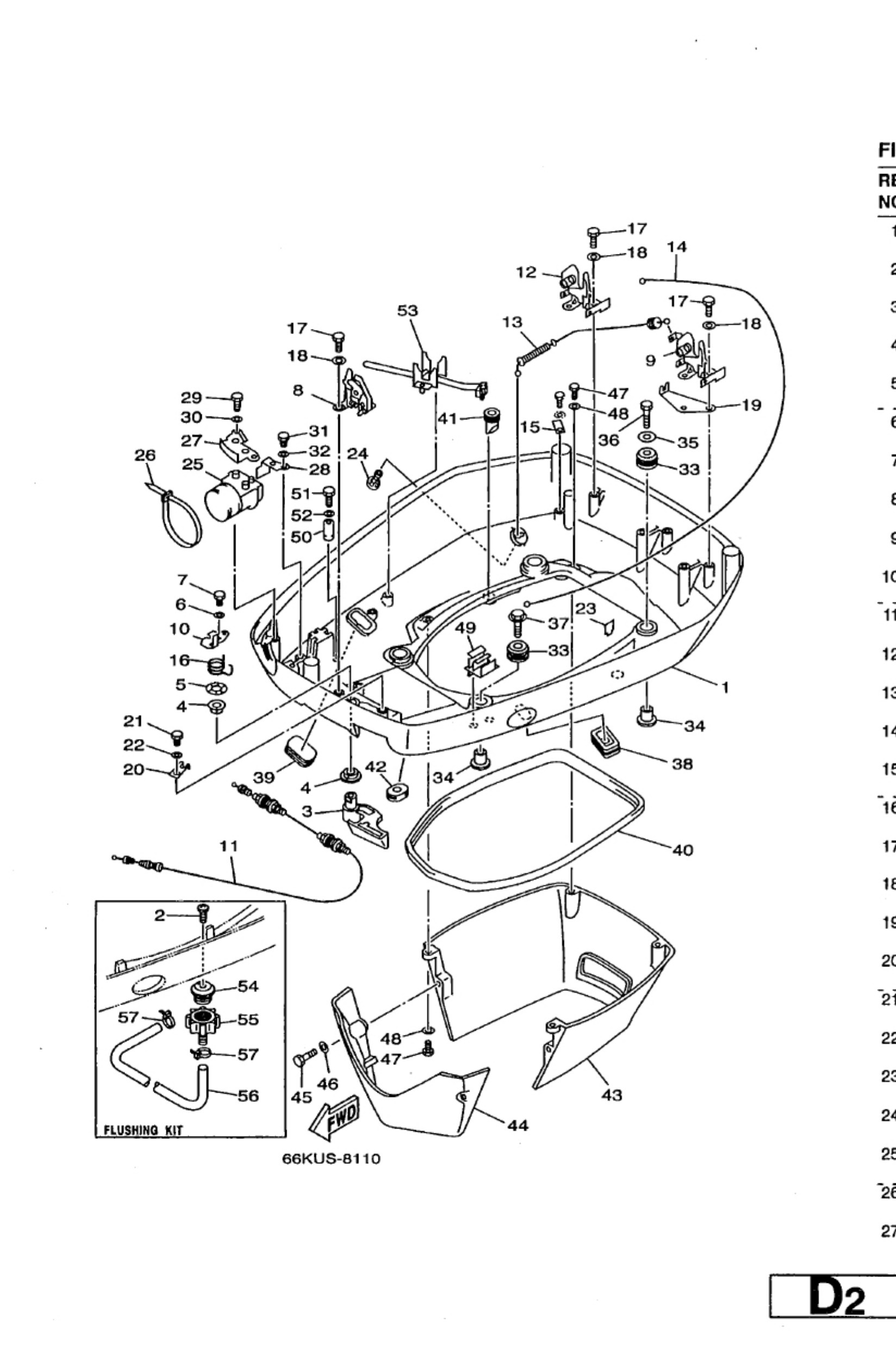

Diagram: BOTTOM

Diagram

Parts List

9016905M00 (FLUSHING KIT)
Screw truss head tapping
Diagram Reference: 2
Get Part
9038613M88
Bush(6r3)
Diagram Reference: 4
Get Part
9020106M30
Washer, plate (6a1)
Diagram Reference: 6
Get Part
9010906M50
Bolt(61a)
Diagram Reference: 7
Get Part
6R34282400
Base, clamp lever
Diagram Reference: 8
Get Part
6R34281101
Stay
Diagram Reference: 9
Get Part
6R34281600
Lever, clamp
Diagram Reference: 10
Get Part
6R34285010
Wire, complete
Diagram Reference: 11
Get Part
6R34281110
Stay
Diagram Reference: 12
Get Part
61A4285001
Wire Complete
Diagram Reference: 13
Get Part
61A4285020
Wire, complete
Diagram Reference: 14
Get Part
6824411700
Bracket
Diagram Reference: 15
Get Part
6 (i)
Pnc)production Number Code
Diagram Reference: 16
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 17
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 18
Get Part
6N74282800
Plate, clamp
Diagram Reference: 19
Get Part
6R34282800
Plate, clamp
Diagram Reference: 20
Get Part
9709506010
Bolt
Diagram Reference: 21
Get Part
6N74284100
Mark, Clamp
Diagram Reference: 23
Get Part
6E54439100
Nipple, hose
Diagram Reference: 24
Get Part
66KUS8110
52 92995-06600
Diagram Reference: 24
Get Part
61A42738025B
Plate, fitting
Diagram Reference: 27
Get Part
GR31258000 (FLUSHING KIT)
Joint assembly
Diagram Reference: 55
Get Part
9044511M36 (FLUSHING KIT)
Hose (l700)
Diagram Reference: 56
Get Part
9046511M10 (FLUSHING KIT)
Clamp
Diagram Reference: 57
Get Part
573
-
Diagram Reference: 57
Get Part
