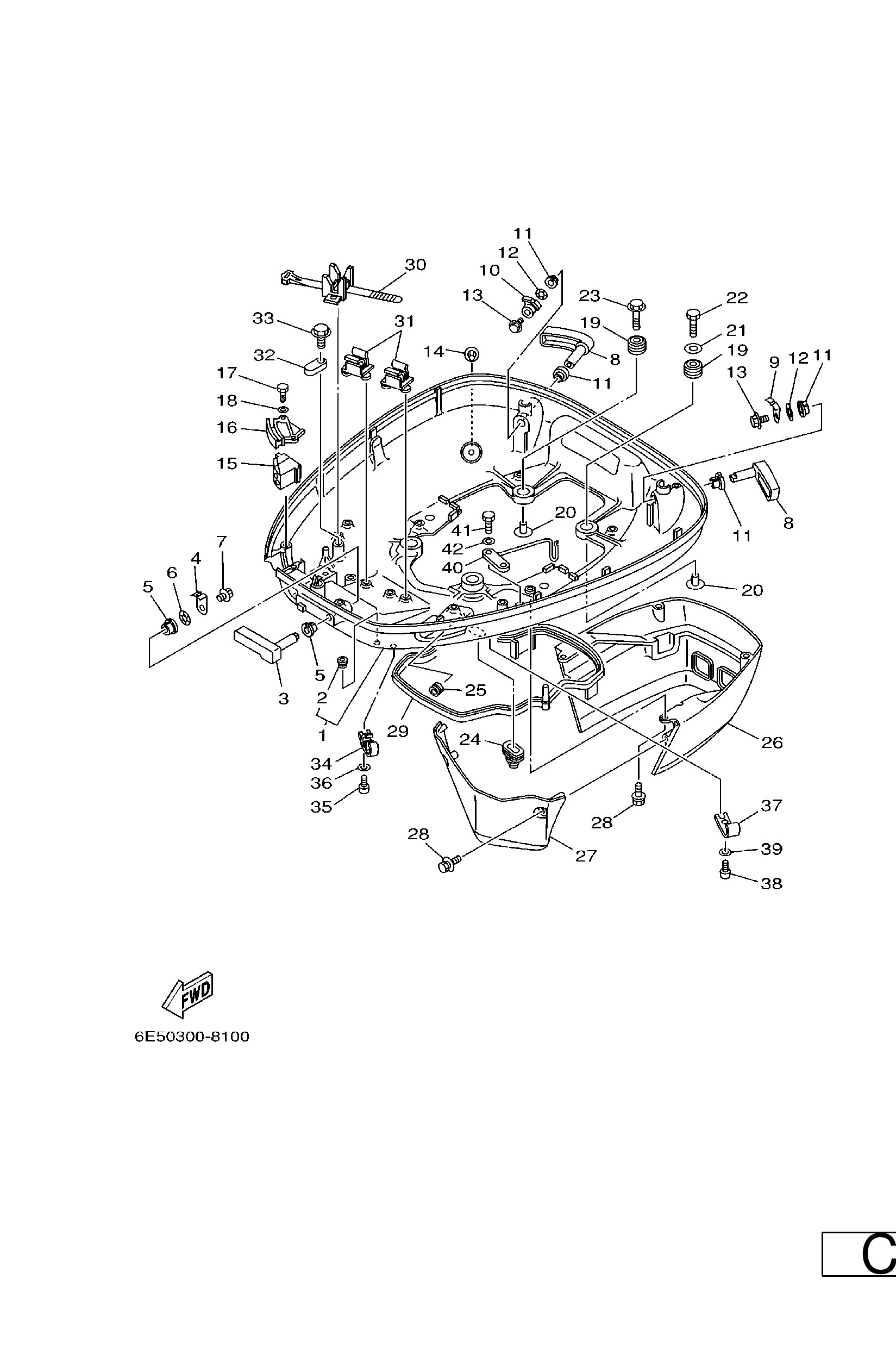

Diagram: BOTTOM COWLING

Diagram

Parts List

6H44274800
Grommet
Diagram Reference: 2
Get Part
6884281600
Lever, clamp 2
Diagram Reference: 4
Get Part
9038613M38
Bushing (697)
Diagram Reference: 5
Get Part
9020613M10
Washer, wave (6e5)
Diagram Reference: 6
Get Part
9011906M09
Bolt, with washer
Diagram Reference: 7
Get Part
6G54281600
Lever, clamp 2
Diagram Reference: 9
Get Part
6E54281601
Lever, clamp 2
Diagram Reference: 10
Get Part
6E54439100
Nipple, hose
Diagram Reference: 14
Get Part
6E54272511
Grommet
Diagram Reference: 15
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 17
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 18
Get Part
9048022M15
Grommet (6e5)
Diagram Reference: 19
Get Part
9038708M37
Coller (6e5)
Diagram Reference: 20
Get Part
9020108M54
Washer, plate (6e5)
Diagram Reference: 21
Get Part
9707508035
Bolt(70w)
Diagram Reference: 22
Get Part
9011908M22
Bolt, with washer
Diagram Reference: 23
Get Part
6884272610
Grommet
Diagram Reference: 24
Get Part
9048013M24
Grommet (6e9)
Diagram Reference: 25
Get Part
9759506520
Bolt(7u8)
Diagram Reference: 28
Get Part
6E54271600
Rubber, Seal 1
Diagram Reference: 29
Get Part
6888259400
Clamp
Diagram Reference: 30
Get Part
6E58259400
Clamp
Diagram Reference: 31
Get Part
6E58258800
Plate
Diagram Reference: 32
Get Part
6E52436701
Clamp, fuel pipe 2
Diagram Reference: 34
Get Part
9015706M01
Screw (6e5)
Diagram Reference: 35
Get Part
6E52436710
Clamp, fuel pipe 2
Diagram Reference: 37
Get Part
6K78258800
Plate
Diagram Reference: 40
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 41
Get Part
