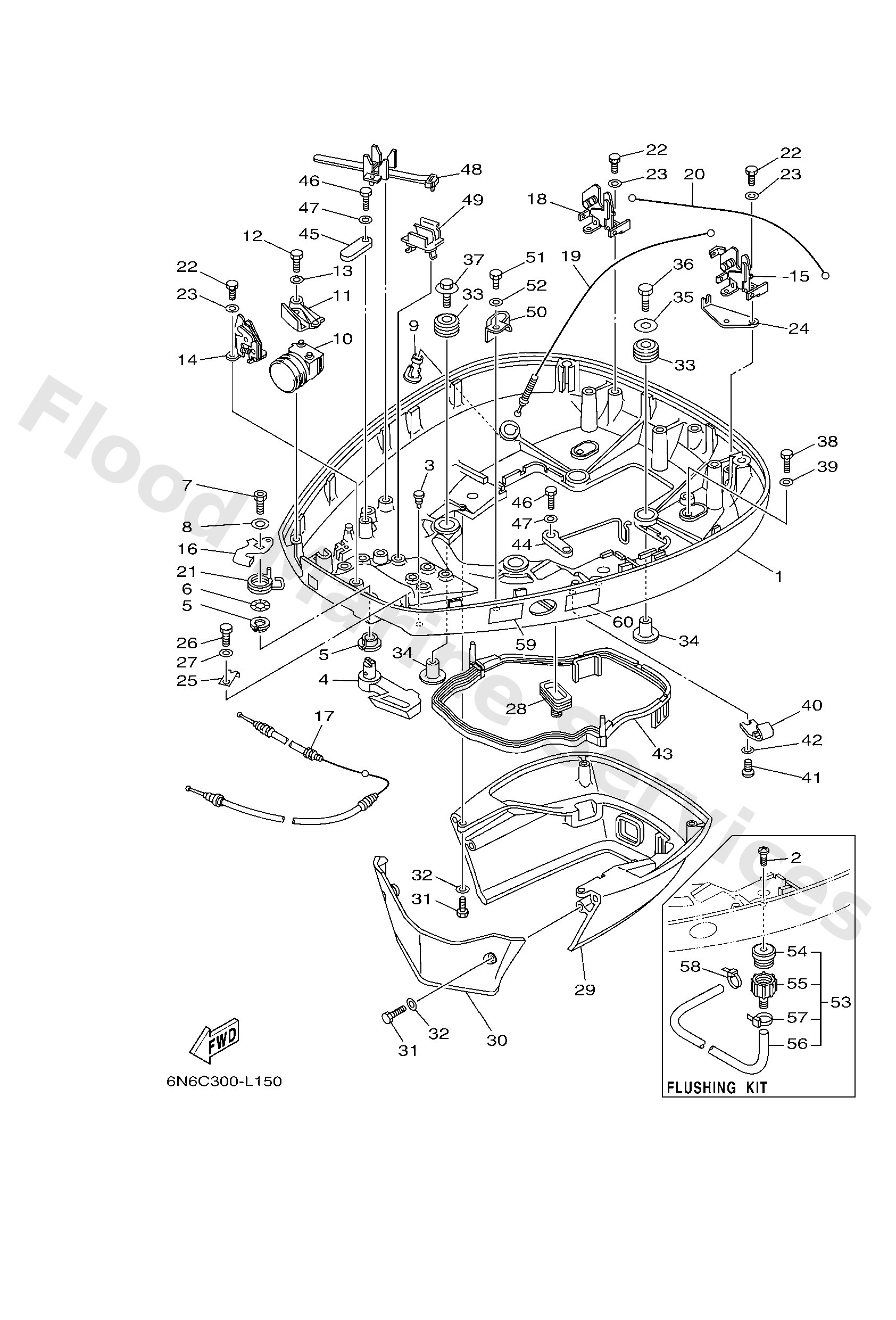

Diagram: BOTTOM COWLING

Diagram

Parts List

6N742711438D
Cowling, bottom
Diagram Reference: 1
Get Part
9016905M00
Screw truss head tapping
Diagram Reference: 2
Get Part
6H44274800
Grommet
Diagram Reference: 3
Get Part
6N742815018D
Lever, clamp
Diagram Reference: 4
Get Part
9038613M88
Bush(6r3)
Diagram Reference: 5
Get Part
9020613M10
Washer, wave (6e5)
Diagram Reference: 6
Get Part
9010908M45
Bolt(6r3)
Diagram Reference: 7
Get Part
9299008200
Ybs66-8 washer, plain
Diagram Reference: 8
Get Part
6E54439100
Nipple, hose
Diagram Reference: 9
Get Part
6N74272530
Grommet
Diagram Reference: 10
Get Part
6N742738028D
Plate, fitting
Diagram Reference: 11
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 12
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 13
Get Part
6R34282400
Base, clamp lever
Diagram Reference: 14
Get Part
6R34281101
Stay
Diagram Reference: 15
Get Part
6R34281600
Lever, clamp
Diagram Reference: 16
Get Part
6N74285000
Wire, complete
Diagram Reference: 17
Get Part
6R34281110
Stay
Diagram Reference: 18
Get Part
6N74285010
Wire, complete
Diagram Reference: 19
Get Part
6N74285020
Wire, complete
Diagram Reference: 20
Get Part
6R34281300
Spring, clamp lever
Diagram Reference: 21
Get Part
6N74282800
Plate, clamp
Diagram Reference: 24
Get Part
6R34282801
Plate, clamp
Diagram Reference: 25
Get Part
9709506010
Bolt
Diagram Reference: 26
Get Part
6884272610
Grommet
Diagram Reference: 28
Get Part
6N742741018D
Apron
Diagram Reference: 29
Get Part
6R342771018D
Apron
Diagram Reference: 30
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 31
Get Part
9048022M15
Grommet (6e5)
Diagram Reference: 33
Get Part
9038708M37
Coller (6e5)
Diagram Reference: 34
Get Part
9020108M54
Washer, plate (6e5)
Diagram Reference: 35
Get Part
9707508035
Bolt(70w)
Diagram Reference: 36
Get Part
9011908M22
Bolt, with washer
Diagram Reference: 37
Get Part
6E52436710
Clamp, fuel pipe 2
Diagram Reference: 40
Get Part
9015706M01
Screw (6e5)
Diagram Reference: 41
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 42
Get Part
6E54271600
Rubber, Seal 1
Diagram Reference: 43
Get Part
6K78258800
Plate
Diagram Reference: 44
Get Part
6E58258800
Plate
Diagram Reference: 45
Get Part
6888259400
Clamp
Diagram Reference: 48
Get Part
6E58259400
Clamp
Diagram Reference: 49
Get Part
9046512M25
Clamp (6e5)
Diagram Reference: 50
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 51
Get Part
6R3Y125J70
Flushing kit
Diagram Reference: 53
Get Part
6R31257200
Adapter
Diagram Reference: 54
Get Part
6R31258000
Joint assembly
Diagram Reference: 55
Get Part
9044511M35
Hose (l700)
Diagram Reference: 56
Get Part
9046511M10
Clamp
Diagram Reference: 57
Get Part
6AH4279440
Label, warning (ge
Diagram Reference: 59
Get Part
6AH4279450
Label, warning (ge
Diagram Reference: 60
Get Part
