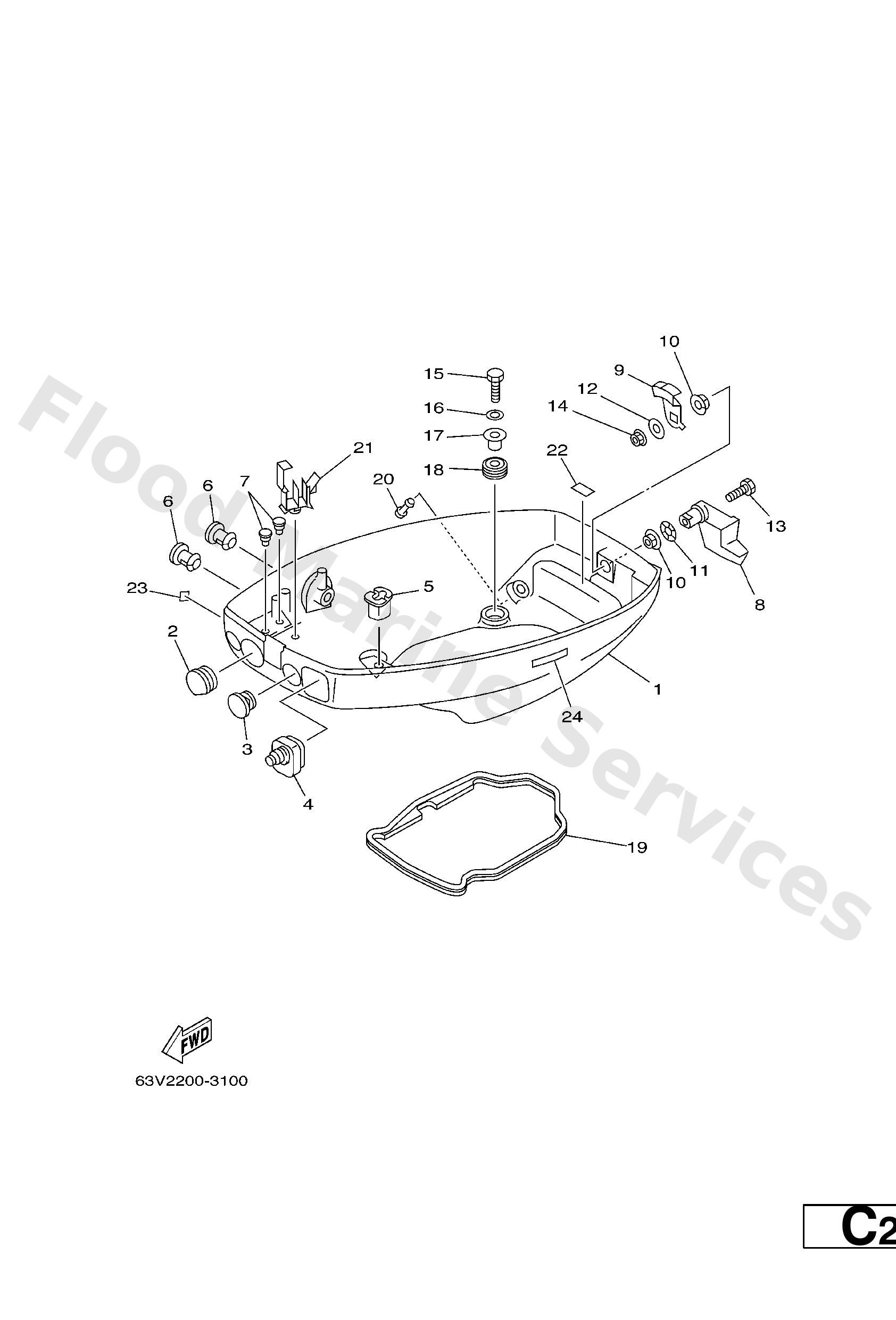

Diagram: BOTTOM COWLING
Parts List
Cowling, bottom
Diagram Reference: 1
Grommet
Diagram Reference: 2
Grommet
Diagram Reference: 3
Grommet
Diagram Reference: 4
Grommet
Diagram Reference: 4
Grommet
Diagram Reference: 5
Grommet
Diagram Reference: 6
Grommet (6e3)
Diagram Reference: 7
Lever, clamp
Diagram Reference: 8
Lever, clamp 2
Diagram Reference: 9
Bushing (6g1)
Diagram Reference: 10
Washer, wave (666)
Diagram Reference: 11
Washer,plate (6k8)
Diagram Reference: 12
Bolt
Diagram Reference: 13
Nut
Diagram Reference: 14
Washer, plain (646)
Diagram Reference: 16
Collar (6g1)
Diagram Reference: 17
Grommet (6g1)
Diagram Reference: 18
Rubber, seal 1
Diagram Reference: 19
Nipple, hose
Diagram Reference: 20
Clamp(63v)
Diagram Reference: 21
Mark 1
Diagram Reference: 22
Mark 1
Diagram Reference: 22
Label, Caution
Diagram Reference: 23
18 −
Diagram Reference: 24
