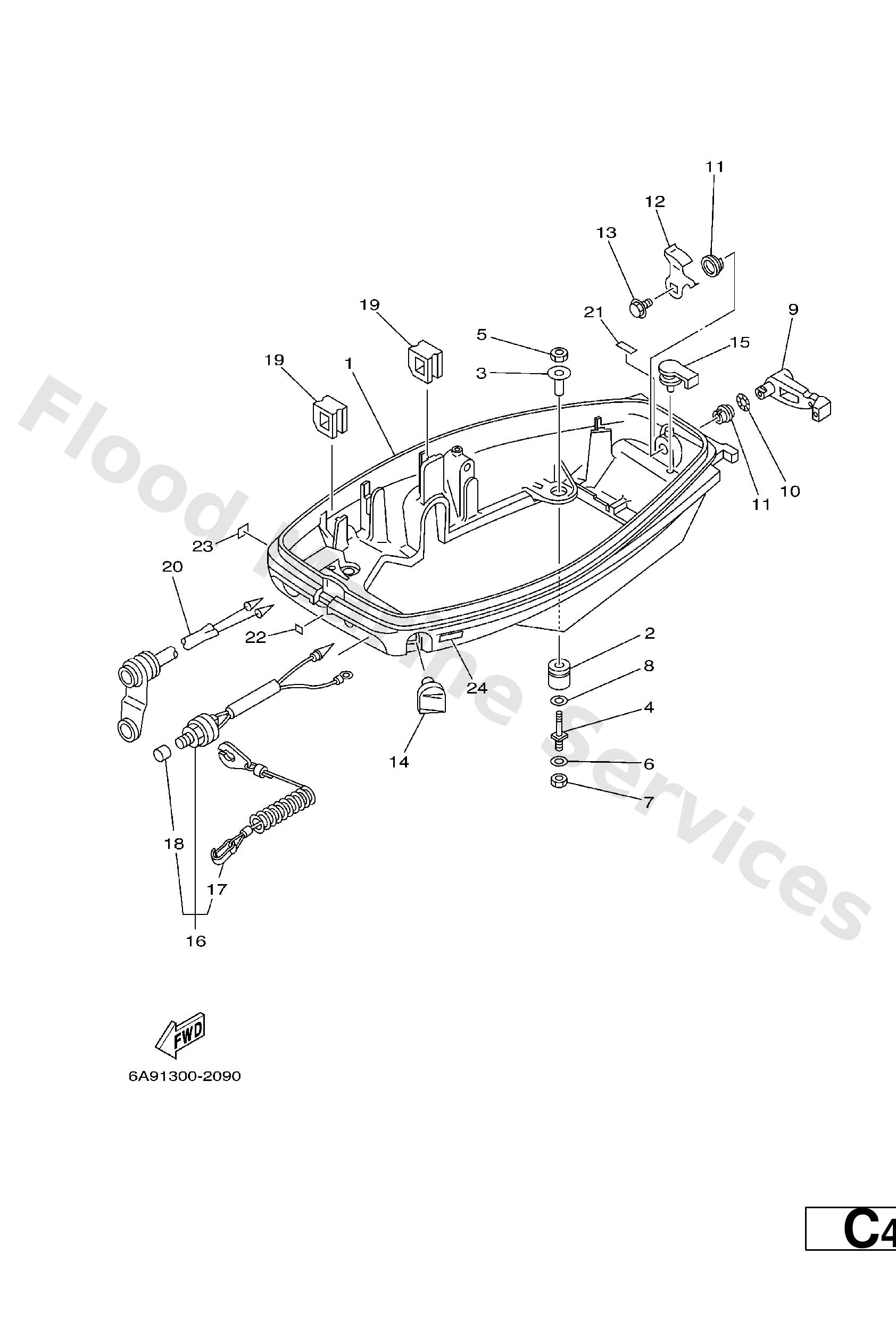

Diagram: BOTTOM COWLING

Diagram

Parts List

689--42711--04--4D
Cowling, bottom 1
Diagram Reference: 1
Get Part
90480--15M06
Grommet (689)
Diagram Reference: 2
Get Part
90387--08M25
Collar (689)
Diagram Reference: 3
Get Part
6G0--42796--00
Bolt 1
Diagram Reference: 4
Get Part
95380--08700
Nut(661)
Diagram Reference: 5
Get Part
92995--08600
Washer, plain (663)
Diagram Reference: 6
Get Part
90201--08M87
Washer (6g0)
Diagram Reference: 8
Get Part
689--42815--00
Lever, clamp 1
Diagram Reference: 9
Get Part
90206--12052
Washer, wave (666)
Diagram Reference: 10
Get Part
90386--12069
Bush(666)
Diagram Reference: 11
Get Part
689--42816--00
Lever, clamp 2
Diagram Reference: 12
Get Part
90119--06M73
Bolt(gh1)
Diagram Reference: 13
Get Part
689--42725--01
Grommet
Diagram Reference: 14
Get Part
647--42523--00
Spacer, friction
Diagram Reference: 15
Get Part
689--82575--04
Engine stop switch assembly
Diagram Reference: 16
Get Part
682--82556--00
Lanyard, stop switch
Diagram Reference: 17
Get Part
689--8257Y--00
Cap
Diagram Reference: 18
Get Part
90480--17M08
Grommet (689)
Diagram Reference: 19
Get Part
682--84381--00
2p concent 1
Diagram Reference: 20
Get Part
6644279110
Mark 1
Diagram Reference: 21
Get Part
6A14279201
Mark (100)1)
Diagram Reference: 22
Get Part
6A1--28176--00
Label, Caution
Diagram Reference: 23
Get Part
6E3--8257H--00
Plate, Mark
Diagram Reference: 24
