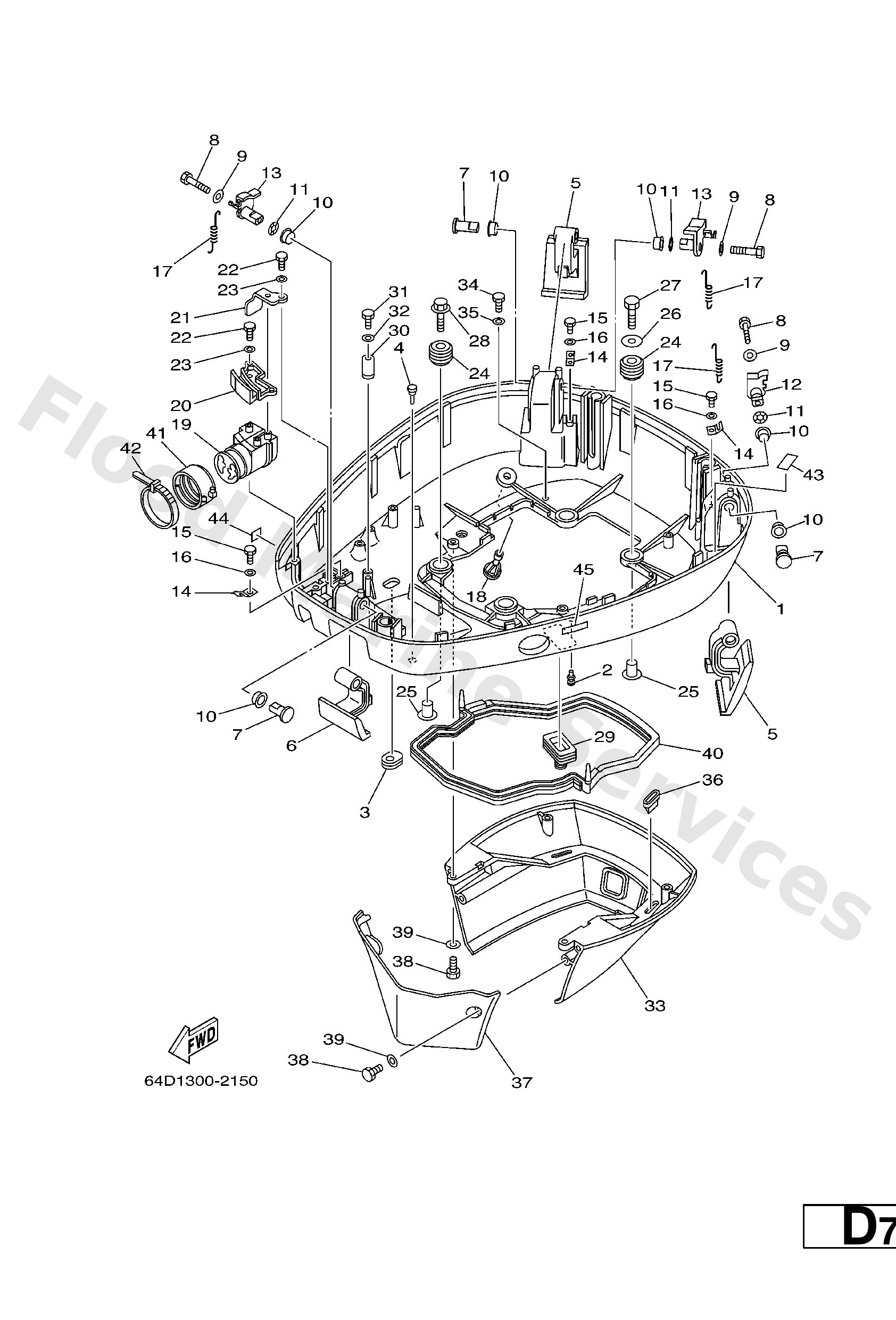

Diagram: BOTTOM COWLING

Diagram

Parts List

64D−42711−01−8D

Cowling, bottom

Diagram Reference: 1

90480−06M19

Grommet (6e3)

Diagram Reference: 2

61A−42727−00

Grommet

Diagram Reference: 3

6H4−42748−00

Grommet

Diagram Reference: 4

64D−42815−00−4D

Lever, clamp

Diagram Reference: 5

64D−42816−00−4D

Lever, clamp

Diagram Reference: 6

64D−42835−00

Pin, set1

Diagram Reference: 7

97095−06040

Bolt (682)

Diagram Reference: 8

90201−06068

Washer,plate (6k8)

Diagram Reference: 9

90386−15M73

Bush(6l2)

Diagram Reference: 10

90206−15M18

Washer, wave(6l2)

Diagram Reference: 11

64D−42818−20

Lever, clamp

Diagram Reference: 12

64D−42818−30

Lever, clamp

Diagram Reference: 13

64D−43144−00

Hook, spring

Diagram Reference: 14

97090−06012

Bolt(gh1)

Diagram Reference: 15

92990−06600

Washer, plain (646)

Diagram Reference: 16

90506−16M34

Spring, tension(64d)

Diagram Reference: 17

6E5−44391−00

Nipple, hose

Diagram Reference: 18

64D−42725−30

Grommet

Diagram Reference: 19

64D−42738−00−5B

Plate, fitting

Diagram Reference: 20

64D−42738−10−5B

Plate, fitting

Diagram Reference: 21

97095−06016

Bolt, hexagon deep recess

Diagram Reference: 22

92995−06600

Washer, plain (646)

Diagram Reference: 23

90480−22M15

Grommet (6e5)

Diagram Reference: 24

90387−08M37

Coller (6e5)

Diagram Reference: 25

90201−08M54

Washer, plate (6e5)

Diagram Reference: 26

97075−08035

Bolt(70w)

Diagram Reference: 27

90119−08M22

Bolt, with washer

Diagram Reference: 28

688−42726−10

Grommet

Diagram Reference: 29

6E5−82588−00

Plate

Diagram Reference: 30

97095−06020

Bolt(7u8)

Diagram Reference: 31

6R3−42741−02−8D

Apron

Diagram Reference: 33

64D−42717−00

Rubber, Seal 2

Diagram Reference: 36

6R3−42771−01−8D

Apron

Diagram Reference: 37

6E5−42716−10

Rubber seal 1

Diagram Reference: 40

68F−42753−00

Fastner

Diagram Reference: 41

90464−20258

Clamp

Diagram Reference: 42

6G5−42791−10

Mark 1

Diagram Reference: 43

6A1−28176−00

Label, Caution

Diagram Reference: 44

6E3−8257H−00

Plate, Mark

Diagram Reference: 45
