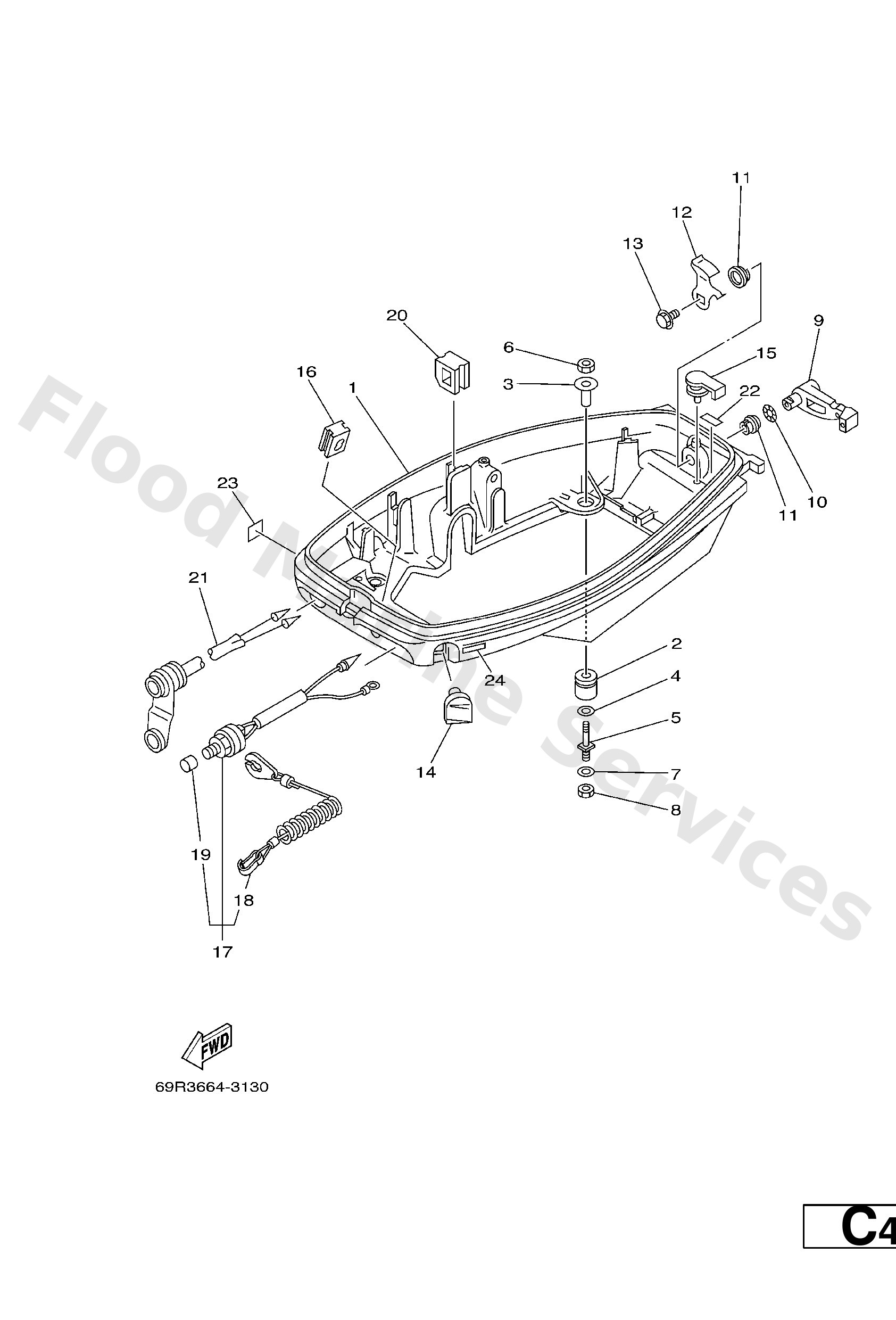

Diagram: BOTTOM COWLING

Diagram

Parts List

689−42711−04−4D
Cowling, bottom 1
Diagram Reference: 1
Get Part
90480−15M06
Grommet (689)
Diagram Reference: 2
Get Part
90387−08M25
Collar (689)
Diagram Reference: 3
Get Part
90201−08M87
Washer (6g0)
Diagram Reference: 4
Get Part
6G0−42796−00
Bolt 1
Diagram Reference: 5
Get Part
95380−08700
Nut(661)
Diagram Reference: 6
Get Part
92995−08600
Washer, plain (663)
Diagram Reference: 7
Get Part
689−42815−00
Lever, clamp 1
Diagram Reference: 9
Get Part
90206−12052
Washer, wave (666)
Diagram Reference: 10
Get Part
90386−12069
Bush(666)
Diagram Reference: 11
Get Part
689−42816−00
Lever, clamp 2
Diagram Reference: 12
Get Part
90119−06M73
Bolt(gh1)
Diagram Reference: 13
Get Part
689−42725−01
Grommet
Diagram Reference: 14
Get Part
647−42523−00
Spacer, friction
Diagram Reference: 15
Get Part
61N−26326−00
Grommet
Diagram Reference: 16
Get Part
6E9−82575−02
Engine stop switch assembly
Diagram Reference: 17
Get Part
682−82556−00
Lanyard, stop switch
Diagram Reference: 18
Get Part
689−8257Y−00
Cap
Diagram Reference: 19
Get Part
90480−17M08
Grommet (689)
Diagram Reference: 20
Get Part
682−84381−00
2p concent 1
Diagram Reference: 21
Get Part
6E7−42791−10
Mark 1
Diagram Reference: 22
Get Part
6A1−28176−00
Label, Caution
Diagram Reference: 23
Get Part
6E3−8257H−00
18 −
Diagram Reference: 24
Get Part
