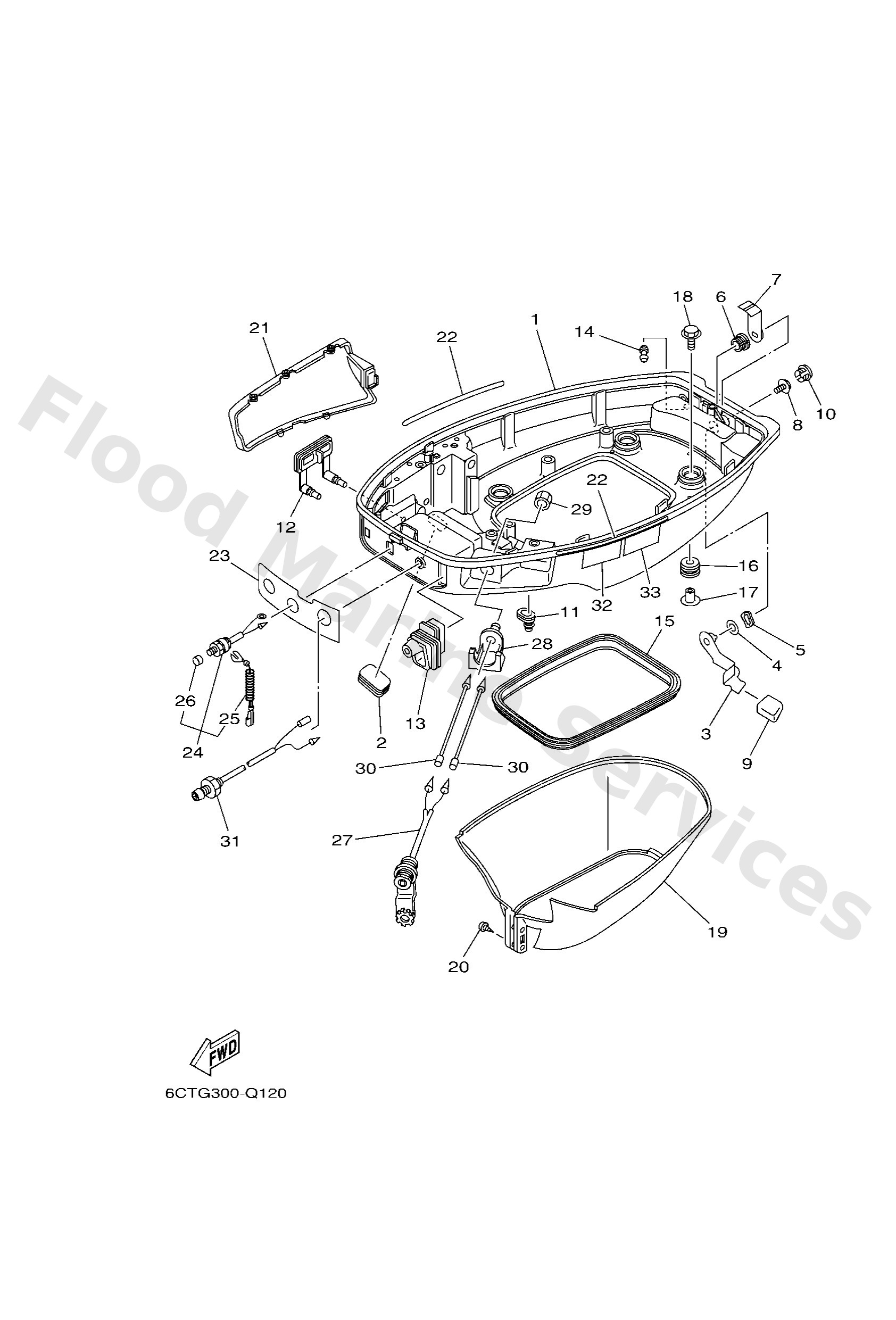

Diagram: BOTTOM COWLING

Diagram

Parts List

6J842711038D
Cowling, bottom 1
Diagram Reference: 1
Get Part
6H44272600
Grommet
Diagram Reference: 2
Get Part
6J842815004D
Lever, clamp
Diagram Reference: 3
Get Part
9020212M25
Washer, plate(6j8)
Diagram Reference: 4
Get Part
9020612052
Washer, wave (666)
Diagram Reference: 5
Get Part
9038612M61
Bush(6j8)
Diagram Reference: 6
Get Part
6J84281600
Lever, clamp
Diagram Reference: 7
Get Part
9589506012
Bolt, flange deep recess
Diagram Reference: 8
Get Part
6J84283100
Bushing
Diagram Reference: 9
Get Part
6J84272801
Cap
Diagram Reference: 10
Get Part
6G14272700
Grommet
Diagram Reference: 11
Get Part
6J84272400
Grommet
Diagram Reference: 12
Get Part
6J84272600
Grommet
Diagram Reference: 13
Get Part
6BL4439100
Nipple, hose
Diagram Reference: 14
Get Part
6J84271600
Rubber seal 1
Diagram Reference: 15
Get Part
9048009M21
Grommet (6e9)
Diagram Reference: 16
Get Part
9038706M41
Coller (6e9)
Diagram Reference: 17
Get Part
9011906M61
Bolt, with washer
Diagram Reference: 18
Get Part
6J84274101
Apron
Diagram Reference: 19
Get Part
9016406M01
Screw (6f5)
Diagram Reference: 20
Get Part
6J84272301
Cover, bottom
Diagram Reference: 21
Get Part
6J84273500
Protector
Diagram Reference: 22
Get Part
6J84271920
Panel, front lower
Diagram Reference: 23
Get Part
6898257504
Engine stop switch assembly
Diagram Reference: 24
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 25
Get Part
6898257Y00
Cap
Diagram Reference: 26
Get Part
6828438100
2p concent 1
Diagram Reference: 27
Get Part
6J88438700
Holder
Diagram Reference: 28
Get Part
6638255700
Nut
Diagram Reference: 29
Get Part
6J88255300
Extension, wire lead
Diagram Reference: 30
Get Part
6J88541000
Emergency signal light assembly
Diagram Reference: 31
Get Part
6EE4279440
Label, warning (general)
Diagram Reference: 32
Get Part
6EE4279450
Label, warning (general)
Diagram Reference: 33
