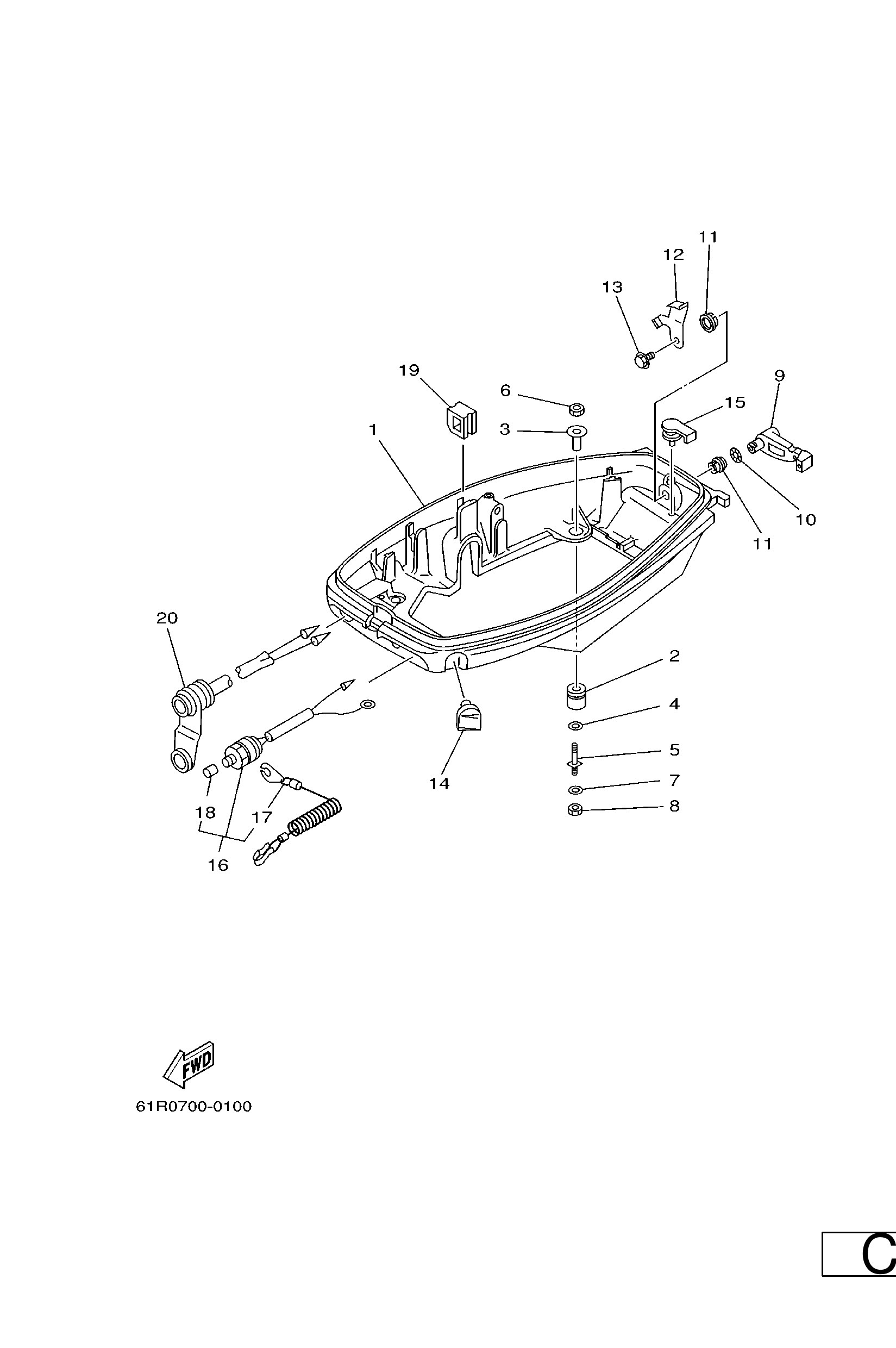

Diagram: BOTTOM COWLING

Diagram

Parts List

68942711034D
Cowling, bottom 1
Diagram Reference: 1
Get Part
9048015M06
Grommet (689)
Diagram Reference: 2
Get Part
9038708M25
Collar (689)
Diagram Reference: 3
Get Part
9020108M87
Washer (6g0)
Diagram Reference: 4
Get Part
6G04279600
Bolt 1
Diagram Reference: 5
Get Part
9538008700
Nut(661)
Diagram Reference: 6
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 7
Get Part
6894281500
Lever, clamp 1
Diagram Reference: 9
Get Part
9020612052
Washer, wave (666)
Diagram Reference: 10
Get Part
9038612069
Bush(666)
Diagram Reference: 11
Get Part
6894281600
Lever, clamp 2
Diagram Reference: 12
Get Part
9011906M73
Bolt(gh1)
Diagram Reference: 13
Get Part
6894272501
Grommet
Diagram Reference: 14
Get Part
6474252300
Spacer, friction
Diagram Reference: 15
Get Part
6E98257502
Engine stop switch assembly
Diagram Reference: 16
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 17
Get Part
6898257Y00
Cap
Diagram Reference: 18
Get Part
9048017M08
Grommet (689)
Diagram Reference: 19
Get Part
6828438100
2p concent 1
Diagram Reference: 20
Get Part
