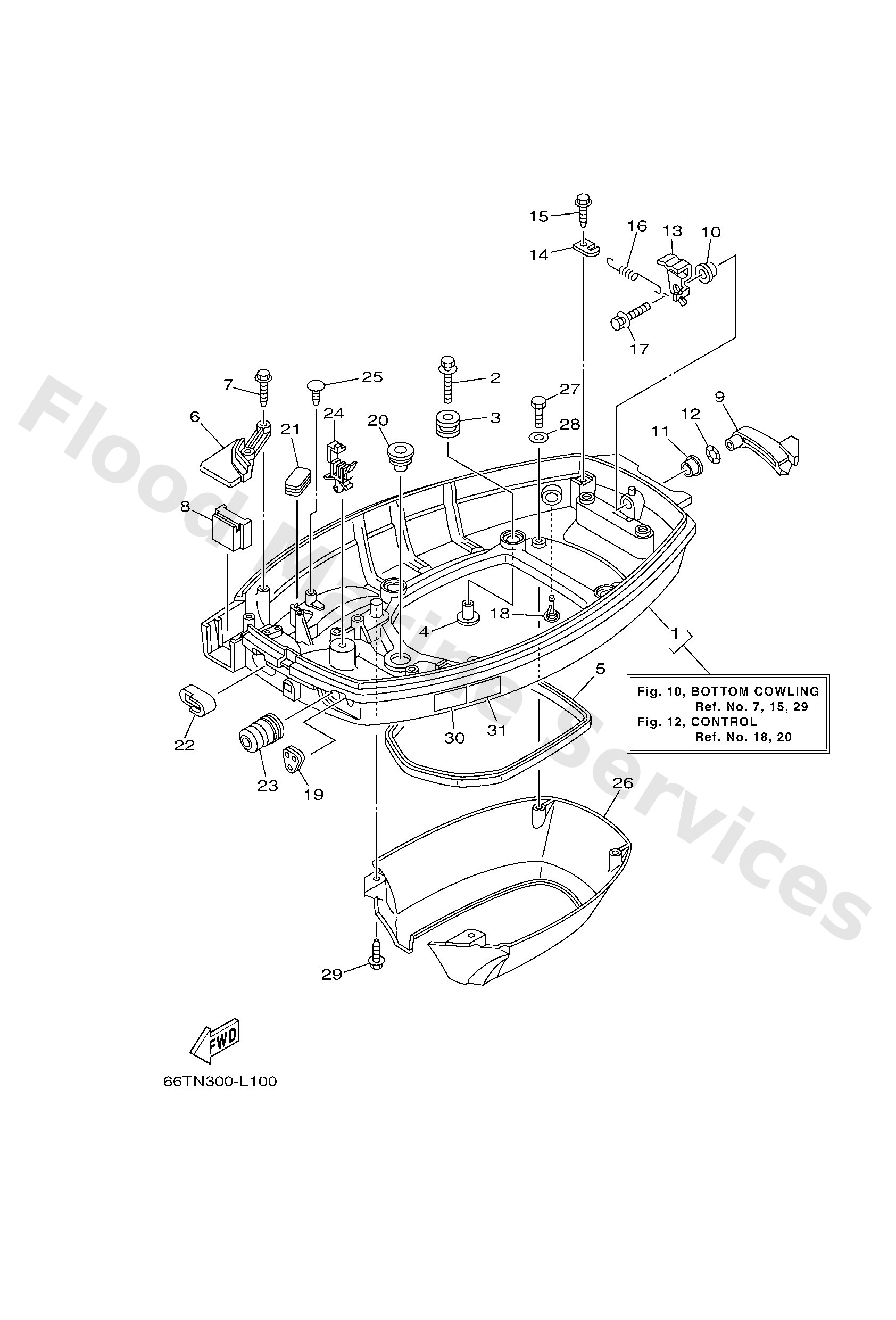

Diagram: BOTTOM COWLING

Diagram

Parts List

66T42710014D
Bottom cowling assembly
Diagram Reference: 1
Get Part
9011906M61
Bolt, with washer
Diagram Reference: 2
Get Part
9048009M21
Grommet (6e9)
Diagram Reference: 3
Get Part
9038706M41
Coller (6e9)
Diagram Reference: 4
Get Part
66T4271600
Rubber, seal 1
Diagram Reference: 5
Get Part
66T4273800CA
Plate, fitting
Diagram Reference: 6
Get Part
9010906M81
Bolt
Diagram Reference: 7
Get Part
66T4272500
Grommet
Diagram Reference: 8
Get Part
66T42815014D
Lever, clamp
Diagram Reference: 9
Get Part
9038612M37
Bushing (6f5)
Diagram Reference: 10
Get Part
9038612MA2
Bush
Diagram Reference: 11
Get Part
9020612052
Washer, wave (666)
Diagram Reference: 12
Get Part
66T4281600
Lever, clamp
Diagram Reference: 13
Get Part
66T4314400
Hook, spring
Diagram Reference: 14
Get Part
9010906M86
Bolt
Diagram Reference: 15
Get Part
9050616M34
Spring, tension(64d)
Diagram Reference: 16
Get Part
9011906M73
Bolt(gh1)
Diagram Reference: 17
Get Part
6E54439100
Nipple, hose
Diagram Reference: 18
Get Part
65W2632600
Grommet
Diagram Reference: 19
Get Part
6764272700
Grommet 4
Diagram Reference: 20
Get Part
6H44272600
Grommet
Diagram Reference: 21
Get Part
66T2432900
Seal
Diagram Reference: 22
Get Part
65W4272600
Grommet
Diagram Reference: 23
Get Part
9046525M57
Clamp(63v)
Diagram Reference: 24
Get Part
9033805M03
Plug (6h1)
Diagram Reference: 25
Get Part
66T4274100
Apron
Diagram Reference: 26
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 27
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 28
Get Part
9010906M80
Bolt
Diagram Reference: 29
Get Part
6AH4279440
Label, warning (ge
Diagram Reference: 30
Get Part
6AH4279450
Label, warning (ge
Diagram Reference: 31
Get Part
