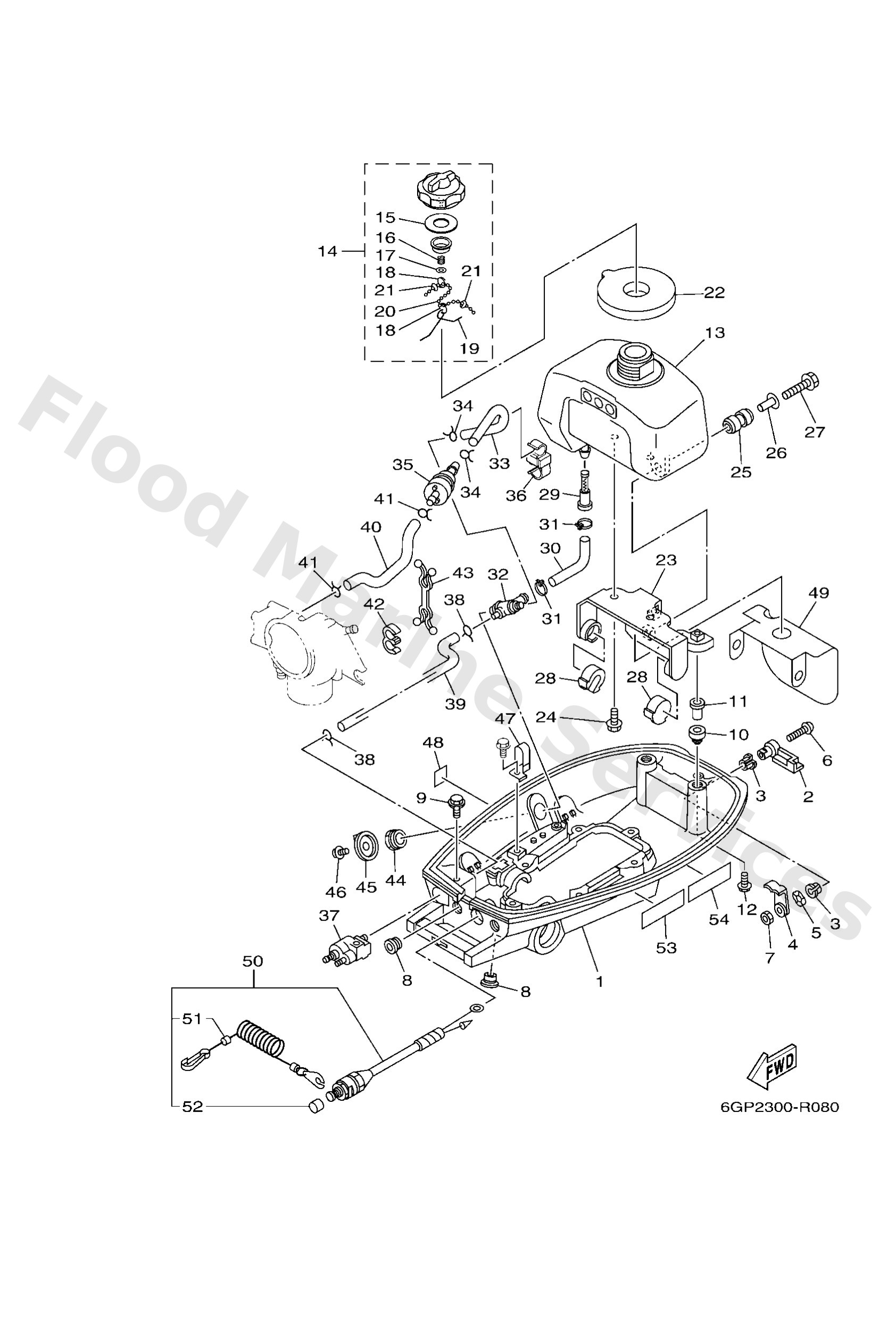

Parts List
Cowling, bottom 1
Diagram Reference: 1
Lever, clamp
Diagram Reference: 2
Bush(666)
Diagram Reference: 3
Lever, clamp
Diagram Reference: 4
Washer, wave (666)
Diagram Reference: 5
Screw, pan head(6e0)
Diagram Reference: 6
Grommet (6e0)
Diagram Reference: 8
Bolt, flange deep recess
Diagram Reference: 9
Damper, locating 2
Diagram Reference: 10
Pipe 1
Diagram Reference: 11
Bolt, flange deep recess
Diagram Reference: 12
Tank, fuel
Diagram Reference: 13
Cap assembly
Diagram Reference: 14
Packing, cap
Diagram Reference: 15
Spring, compression
Diagram Reference: 16
Ybs66-4 washer, plain
Diagram Reference: 17
Clip
Diagram Reference: 18
Hook, chain ball
Diagram Reference: 19
Chain, ball
Diagram Reference: 20
Washer, special 1
Diagram Reference: 21
Gasket, cap 1
Diagram Reference: 22
Stay, fuel tank 1
Diagram Reference: 23
Bolt, hexagon w/w deep recess
Diagram Reference: 24
Damper, ignition coil
Diagram Reference: 25
Collar
Diagram Reference: 26
Bolt, hexagon w/w deep recess
Diagram Reference: 27
Damper, locating 1
Diagram Reference: 28
Strainer 1
Diagram Reference: 29
Pipe, fuel 1
Diagram Reference: 30
Clamp (6e5)
Diagram Reference: 31
Fuel cock assembly 1
Diagram Reference: 32
Pipe 4
Diagram Reference: 33
Clip, pipe 6162435600
Diagram Reference: 34
Strainer 1
Diagram Reference: 35
Clamp
Diagram Reference: 36
Fuel pipe joint comp. 1
Diagram Reference: 37
Pipe 3
Diagram Reference: 39
Pipe 5
Diagram Reference: 40
Clamp(6j8)
Diagram Reference: 42
Clamp
Diagram Reference: 43
Nut(6e0)
Diagram Reference: 44
Lever, cock
Diagram Reference: 45
Screw, pan head (e56)
Diagram Reference: 46
Clamp(6e0)
Diagram Reference: 47
Emblem, fuel cock
Diagram Reference: 48
Cover
Diagram Reference: 49
Engine stop switch assembly
Diagram Reference: 50
Lanyard, stop switch
Diagram Reference: 51
Cap
Diagram Reference: 52
Label, safety
Diagram Reference: 53
Label, safety
Diagram Reference: 54
