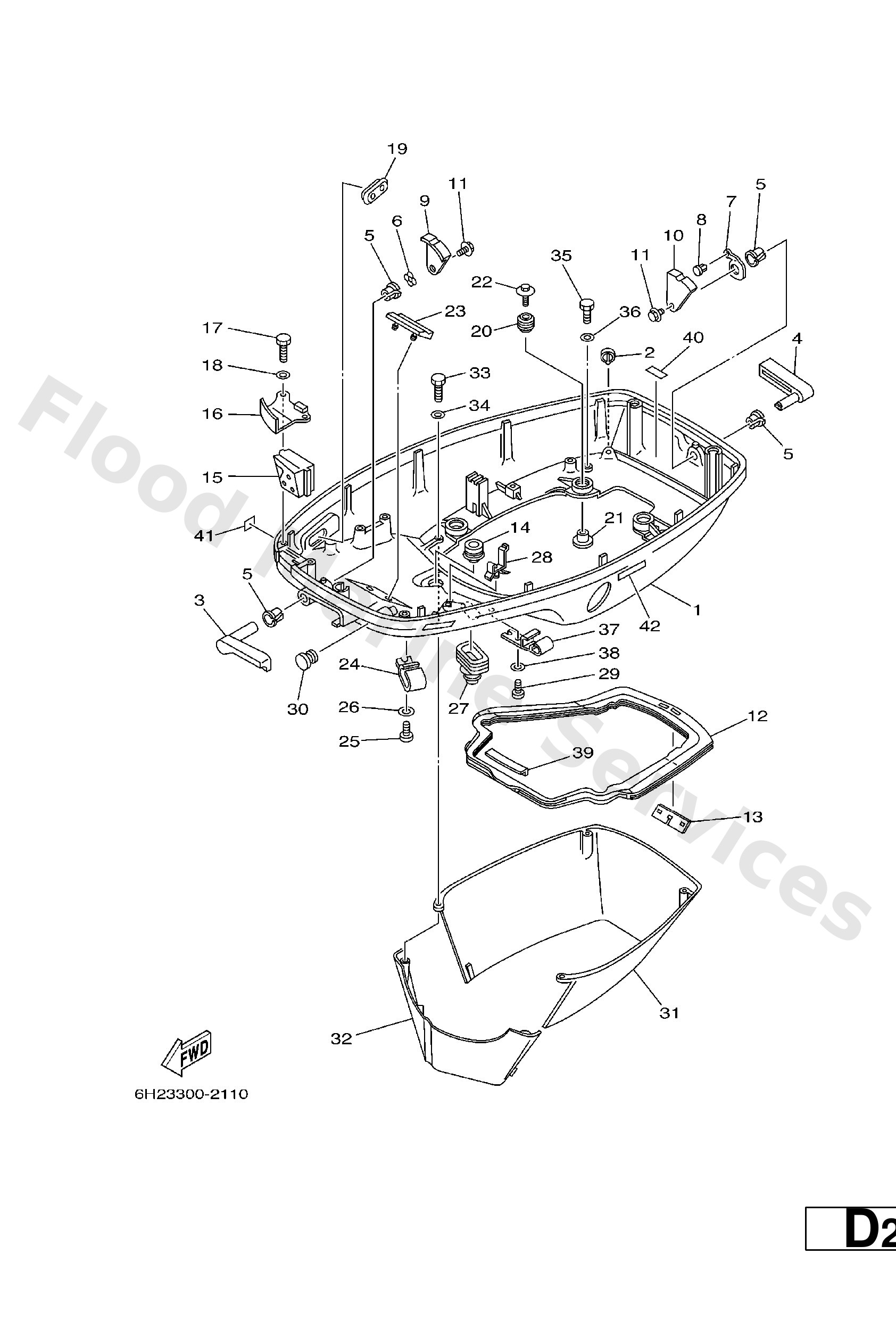

Diagram: BOTTOM COWLING

Diagram

Parts List

6H342711244D
Cowling, bottom 1
Diagram Reference: 1
Get Part
6H3--44391--01
Nipple, hose
Diagram Reference: 2
Get Part
6H3--42815--01--4D
Lever, clamp
Diagram Reference: 3
Get Part
6H3--42817--01--4D
Lever, clamp
Diagram Reference: 4
Get Part
90386--13M38
Bushing (697)
Diagram Reference: 5
Get Part
90206--13M10
Washer, wave (6e5)
Diagram Reference: 6
Get Part
6H3--42813--00
Spring, clamp lever
Diagram Reference: 7
Get Part
90269--04M03
Rivet (6h3)
Diagram Reference: 8
Get Part
6H3--42816--00
Lever, clamp 2
Diagram Reference: 9
Get Part
6H3--42818--00
Lever, clamp 4
Diagram Reference: 10
Get Part
90119--06M09
Bolt, with washer
Diagram Reference: 11
Get Part
6H3--42716--02
Rubber, seal 1
Diagram Reference: 12
Get Part
6K5--42717--00
Rubber, seal 2
Diagram Reference: 13
Get Part
6E5--42724--00
Grommet
Diagram Reference: 14
Get Part
6H3--42725--30 (UR)
Grommet
Diagram Reference: 15
Get Part
6H34272510 (UR)
Grommet
Diagram Reference: 15
Get Part
6H342738015B
Plate, fitting
Diagram Reference: 16
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 17
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 18
Get Part
6H3--42727--00
Grommet
Diagram Reference: 19
Get Part
90480--09M12
Grommet (6a0)
Diagram Reference: 20
Get Part
90387--06M69
Collar (688)
Diagram Reference: 21
Get Part
90119--06M61
Bolt, with washer
Diagram Reference: 22
Get Part
6H3--42768--00
Damper
Diagram Reference: 23
Get Part
6E5--24367--01
Clamp, fuel pipe 2
Diagram Reference: 24
Get Part
90157--06M01
Screw (6e5)
Diagram Reference: 25
Get Part
92990--06600
Washer, plain (646)
Diagram Reference: 26
Get Part
688--42726--10
Grommet
Diagram Reference: 27
Get Part
90464--09M13
Clamp (6h1)
Diagram Reference: 28
Get Part
6G1--42748--00
Grommet
Diagram Reference: 30
Get Part
6H3--42741--01--4D
Apron
Diagram Reference: 31
Get Part
6H3--42771--01--4D
Apron
Diagram Reference: 32
Get Part
97095--06025
Bolt
Diagram Reference: 33
Get Part
97095--06020
Bolt(7u8)
Diagram Reference: 35
Get Part
6H3--42718--00
Rubber, seal 3
Diagram Reference: 39
Get Part
6G5--42791--10
Mark 1
Diagram Reference: 40
Get Part
6A1--28176--00
Label, Caution
Diagram Reference: 41
Get Part
6E3--8257H--00
Plate, Mark
Diagram Reference: 42
Get Part
