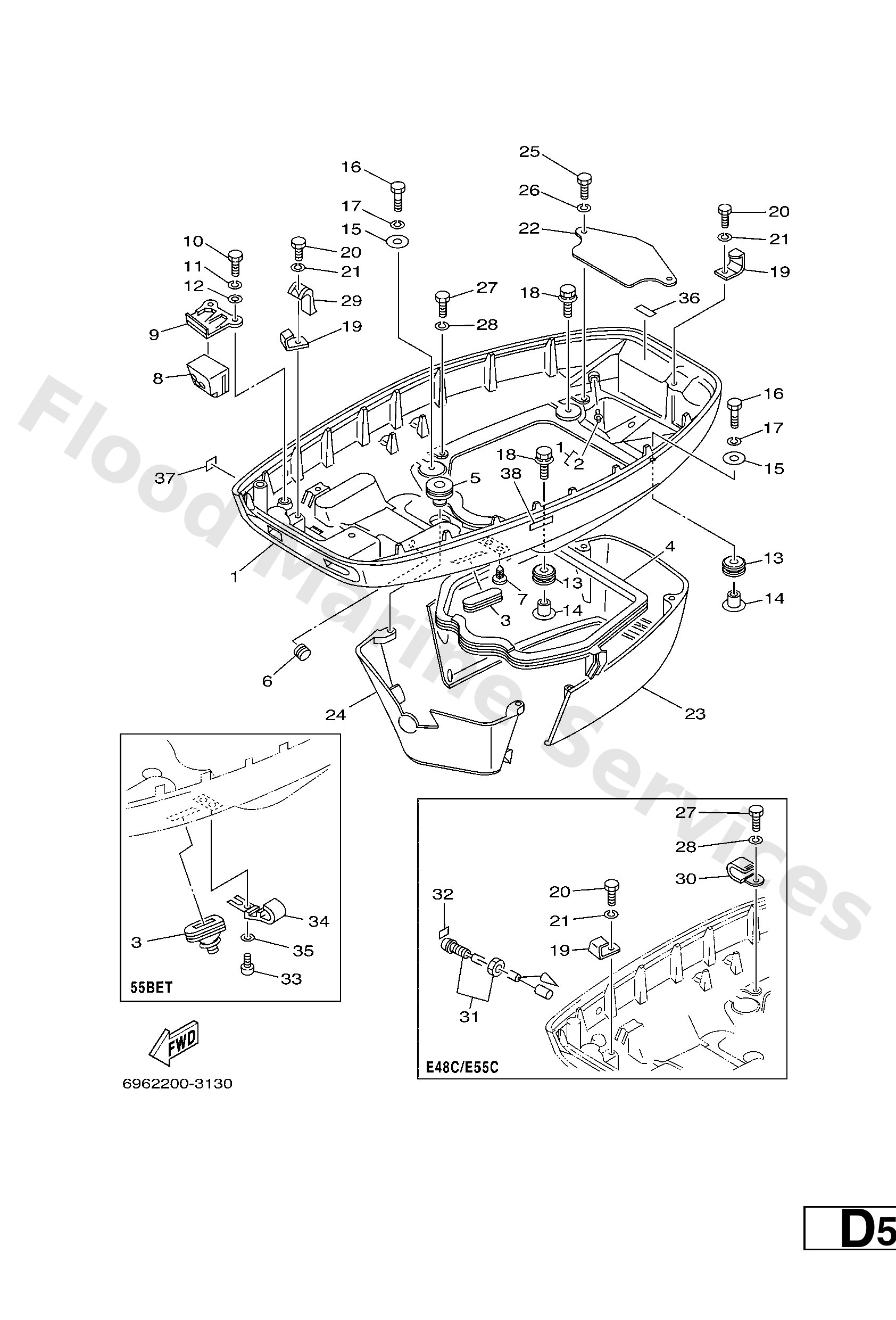

Diagram: BOTTOM COWLING

Diagram

Parts List

69642711034D
Cowling, bottom
Diagram Reference: 1
Get Part
69742711024D
Cowling, bottom
Diagram Reference: 1
Get Part
6632437600
Pipe, joint 1
Diagram Reference: 2
Get Part
6H44272600
Grommet
Diagram Reference: 3
Get Part
6884272610
Grommet
Diagram Reference: 3
Get Part
6634271601
Sea 1
Diagram Reference: 4
Get Part
6634272400
Grommet
Diagram Reference: 5
Get Part
9048012004
Grommet(661)
Diagram Reference: 6
Get Part
9033805M03
Plug (6h1)
Diagram Reference: 7
Get Part
6634272501
Grommet
Diagram Reference: 8
Get Part
6634272511
Grommet
Diagram Reference: 8
Get Part
663427380394
Plate, fitting
Diagram Reference: 9
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 10
Get Part
9299506100
Washer(6a1)
Diagram Reference: 11
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 12
Get Part
9048009M12
Grommet (6a0)
Diagram Reference: 13
Get Part
9038706M03
Collar (676)
Diagram Reference: 14
Get Part
9020106416
Washer, plate(663)
Diagram Reference: 15
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 16
Get Part
9011906M08
Bolt, with washer
Diagram Reference: 18
Get Part
6634274402
Stay
Diagram Reference: 19
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 20
Get Part
663427230194
Cover, bottom
Diagram Reference: 22
Get Part
66342741014D
Apron
Diagram Reference: 23
Get Part
66342771024D
Apron
Diagram Reference: 24
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 25
Get Part
9709506025
Bolt
Diagram Reference: 27
Get Part
6638259403
Clamp
Diagram Reference: 29
Get Part
9046506M86
Clamp
Diagram Reference: 30
Get Part
6E98541100
Overheat warning lamp
Diagram Reference: 31
Get Part
6928541500
Mark, Signal Lamp
Diagram Reference: 32
Get Part
9015706M01
Screw (6e5)
Diagram Reference: 33
Get Part
6E52436710
Clamp, fuel pipe 2
Diagram Reference: 34
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 35
Get Part
6G54279100
Mark 1
Diagram Reference: 36
Get Part
6644279100
Mark 1
Diagram Reference: 36
Get Part
6634279100
Mark 1
Diagram Reference: 36
Get Part
6G54279110 (FOR CHN)
Mark 1
Diagram Reference: 36
Get Part
6644279110 (FOR CAR,CHN)
Mark 1
Diagram Reference: 36
Get Part
6A12817600 (FOR CAR)
Label, Caution
Diagram Reference: 37
Get Part
6E38257H00 (FOR CAR)
-
Diagram Reference: 38
Get Part
