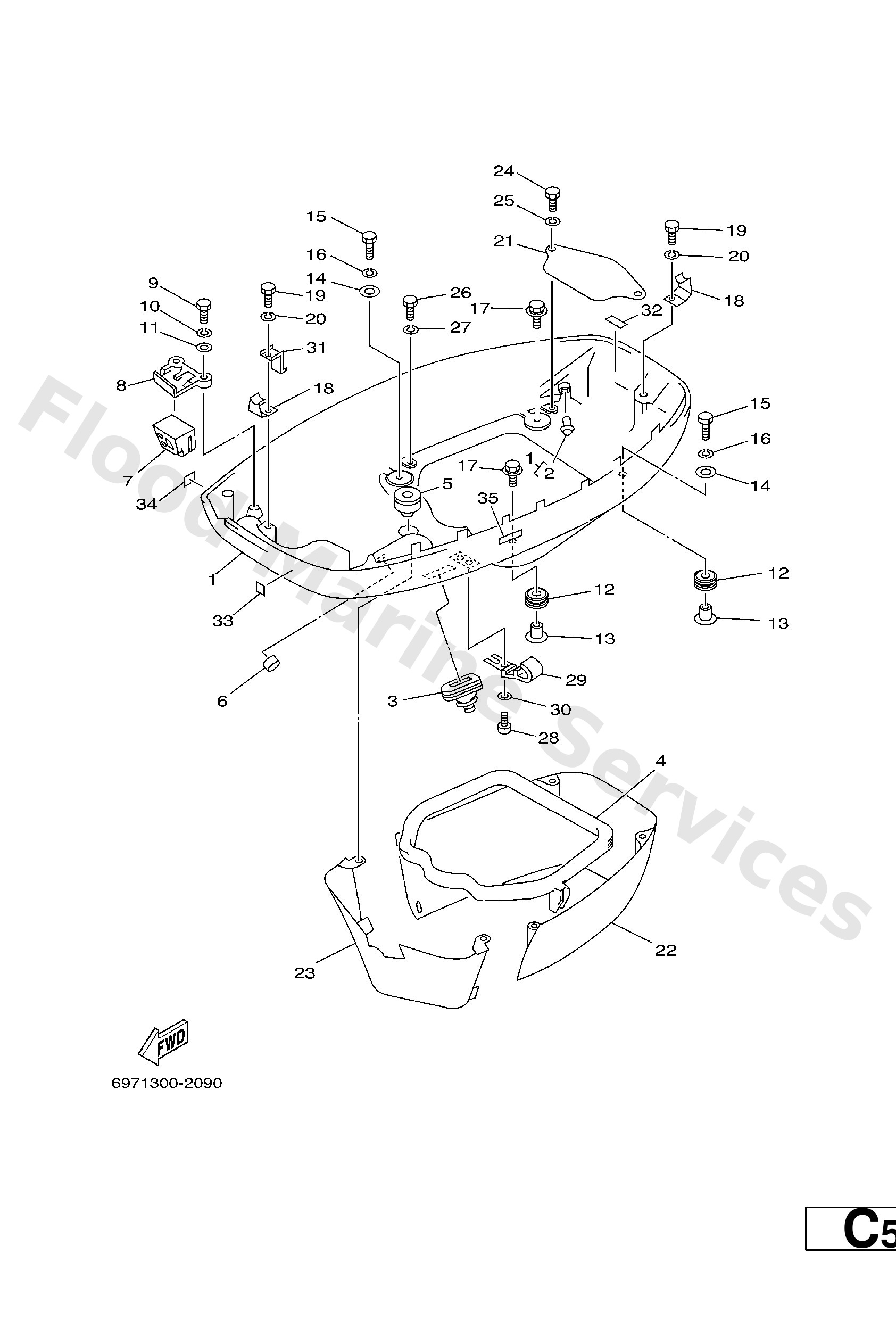

Diagram: BOTTOM COWLING

Diagram

Parts List

69742711024D
Cowling, bottom
Diagram Reference: 1
Get Part
6632437600
Pipe, joint 1
Diagram Reference: 2
Get Part
688--42726--10
Grommet
Diagram Reference: 3
Get Part
6634271601
Sea 1
Diagram Reference: 4
Get Part
663--42724--00
Grommet
Diagram Reference: 5
Get Part
9048012004
Grommet(661)
Diagram Reference: 6
Get Part
6634272501
Grommet
Diagram Reference: 7
Get Part
663427380394
Plate, fitting
Diagram Reference: 8
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
92995--06100
Washer(6a1)
Diagram Reference: 10
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 11
Get Part
90480--09M12
Grommet (6a0)
Diagram Reference: 12
Get Part
90387--06M03
Collar (676)
Diagram Reference: 13
Get Part
90201--06416
Washer, plate(663)
Diagram Reference: 14
Get Part
97095--06030
Bolt(jf7)
Diagram Reference: 15
Get Part
90119--06M08
Bolt, with washer
Diagram Reference: 17
Get Part
6634274402
Stay
Diagram Reference: 18
Get Part
97095--06014
Bolt(gj3)
Diagram Reference: 19
Get Part
663427230194
Cover, bottom
Diagram Reference: 21
Get Part
66342741014D
Apron
Diagram Reference: 22
Get Part
66342771024D
Apron
Diagram Reference: 23
Get Part
97095--06020
Bolt(7u8)
Diagram Reference: 24
Get Part
97095--06025
Bolt
Diagram Reference: 26
Get Part
90157--06M01
Screw (6e5)
Diagram Reference: 28
Get Part
6E5--24367--10
Clamp, fuel pipe 2
Diagram Reference: 29
Get Part
92990--06600
Washer, plain (646)
Diagram Reference: 30
Get Part
6638259403
Clamp
Diagram Reference: 31
Get Part
6G5--42791--10
Mark 1
Diagram Reference: 32
Get Part
6A14279201
Mark (100)1)
Diagram Reference: 33
Get Part
6A1--28176--00
Label, Caution
Diagram Reference: 34
Get Part
6E3--8257H--00
Plate, Mark
Diagram Reference: 35
