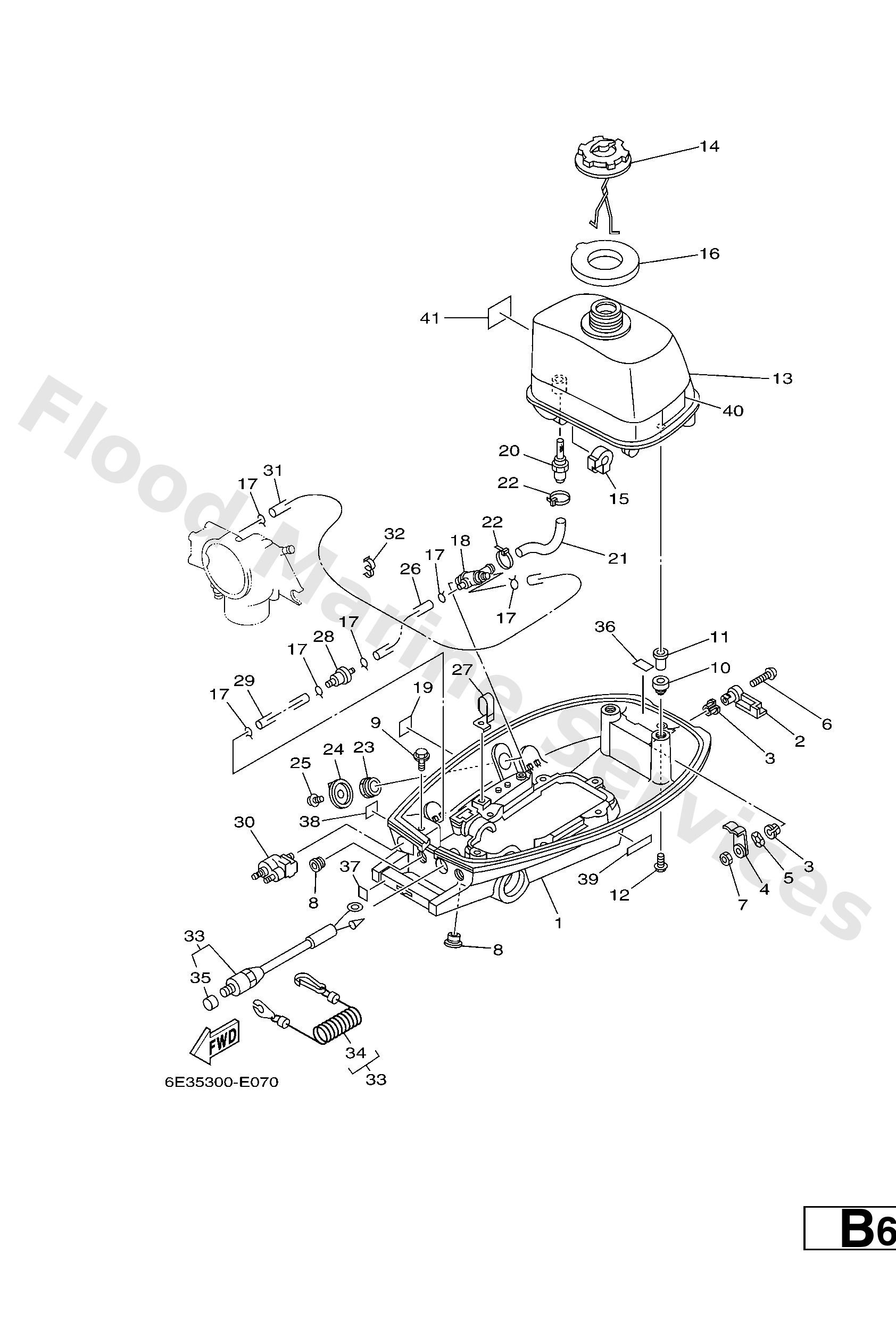

Diagram: BOTTOM COWLING

Diagram

Parts List

6E042711104D
Cowling bottom
Diagram Reference: 1
Get Part
6E042815004D
Lever, clamp
Diagram Reference: 2
Get Part
9038612069
Bush(666)
Diagram Reference: 3
Get Part
6E04281600
Lever, clamp
Diagram Reference: 4
Get Part
9020612052
Washer, wave (666)
Diagram Reference: 5
Get Part
9788506030
Screw, pan head(6e0)
Diagram Reference: 6
Get Part
9538006700
Nut
Diagram Reference: 7
Get Part
9048014M14
Grommet (6e0)
Diagram Reference: 8
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 9
Get Part
6E32418200
Damper, locating 2
Diagram Reference: 10
Get Part
6E04254200
Pipe 1
Diagram Reference: 11
Get Part
9589506025
Bolt, flange deep recess
Diagram Reference: 12
Get Part
6E024110014D
Fuel Tank Comp.
Diagram Reference: 13
Get Part
6E02461002
Cap assembly
Diagram Reference: 14
Get Part
6E02418100
Damper, locating 1
Diagram Reference: 15
Get Part
6E32464100
Gasket, cap
Diagram Reference: 16
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 17
Get Part
6E02450010
Fuel cock assembly 1
Diagram Reference: 18
Get Part
6E02459110
Emblem, fuel cock
Diagram Reference: 19
Get Part
6E02433500
Pipe, suction 1
Diagram Reference: 20
Get Part
6E02431100
Pipe, fuel 1
Diagram Reference: 21
Get Part
9046513M11
Clamp (6e5)
Diagram Reference: 22
Get Part
9017016M35
Nut(6e0)
Diagram Reference: 23
Get Part
6J12452400
Lever, cock
Diagram Reference: 24
Get Part
9015904M24
Screw, pan head (e56)
Diagram Reference: 25
Get Part
9044509M27
Hose (l180)
Diagram Reference: 26
Get Part
9046508M62
Clamp(6e0)
Diagram Reference: 27
Get Part
6462425102
Strainer 1
Diagram Reference: 28
Get Part
9044509057
Hose (l180)
Diagram Reference: 29
Get Part
6G12430402
Fuel pipe joint comp. 1
Diagram Reference: 30
Get Part
6E02431200
Pipe 2
Diagram Reference: 31
Get Part
9046409M21
Clamp(6j8)
Diagram Reference: 32
Get Part
6E08257500
Engine stop switch assembly
Diagram Reference: 33
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 34
Get Part
6898257Y00
Cap
Diagram Reference: 35
Get Part
6644279110
Mark 1
Diagram Reference: 36
Get Part
6A14279201
Mark (100)1)
Diagram Reference: 37
Get Part
6A12817600
Label, Caution
Diagram Reference: 38
Get Part
6E38257H00
Plate, Mark
Diagram Reference: 39
Get Part
6A18362541
Mark 5
Diagram Reference: 40
Get Part
6A18362551
Mark 5
Diagram Reference: 41
