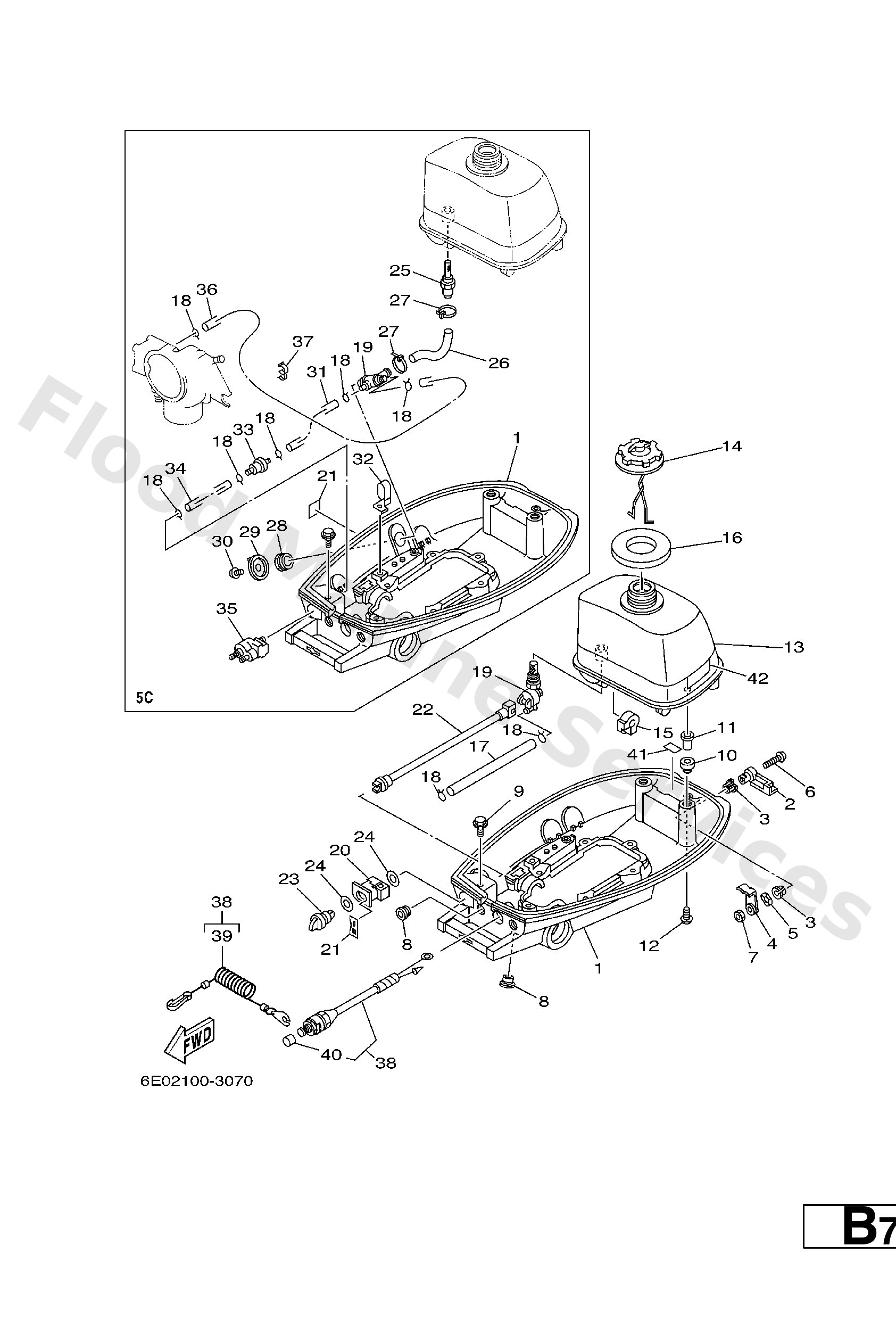

Diagram: BOTTOM COWLING

Diagram

Parts List

6E0−42711−10−4D
Cowling bottom
Diagram Reference: 1
Get Part
6E0−42711−05−4D
Cowling, bottom
Diagram Reference: 1
Get Part
6E0−42815−00−4D
Lever, clamp
Diagram Reference: 2
Get Part
90386−12069
Bush(666)
Diagram Reference: 3
Get Part
6E0−42816−00
Lever, clamp
Diagram Reference: 4
Get Part
90206−12052
Washer, wave (666)
Diagram Reference: 5
Get Part
97885−06030
Screw, pan head(6e0)
Diagram Reference: 6
Get Part
95380−06700
Nut
Diagram Reference: 7
Get Part
90480−14M14
Grommet (6e0)
Diagram Reference: 8
Get Part
95895−06020
Bolt, flange(jk3)
Diagram Reference: 9
Get Part
6E0−24182−00
Damper, locating 2
Diagram Reference: 10
Get Part
6E3−24182−00
Damper, locating 2
Diagram Reference: 10
Get Part
6E0−42542−00
Pipe 1
Diagram Reference: 11
Get Part
95895−06025
Bolt, flange deep recess
Diagram Reference: 12
Get Part
6E0−24110−01−4D
Fuel Tank Comp.
Diagram Reference: 13
Get Part
6E0−24610−02
Cap assembly
Diagram Reference: 14
Get Part
6E0−24181−00
Damper, locating 1
Diagram Reference: 15
Get Part
6E0−24641−00
Gasket, cap
Diagram Reference: 16
Get Part
6E3−24641−00
Gasket, cap
Diagram Reference: 16
Get Part
90445−09M37
Hose (l1500)
Diagram Reference: 17
Get Part
90467−08004
Clip, pipe 6162435600
Diagram Reference: 18
Get Part
6E0−24500−00
Fuel cock assembly 1
Diagram Reference: 19
Get Part
6E0−24500−10
Fuel cock assembly 1
Diagram Reference: 19
Get Part
6E0−24571−00
Bushing
Diagram Reference: 20
Get Part
6E0−24591−10
Emblem, fuel cock
Diagram Reference: 21
Get Part
6E0−24591−00
Graphic
Diagram Reference: 21
Get Part
6E0−24572−00
Shaft, fuel change
Diagram Reference: 22
Get Part
6E0−24575−01
Lever, fuel change
Diagram Reference: 23
Get Part
90202−12M17
Washer, plate (6e0)
Diagram Reference: 24
Get Part
6E0−24335−00
Pipe, suction 1
Diagram Reference: 25
Get Part
6E0−24311−00
Pipe, fuel 1
Diagram Reference: 26
Get Part
90465−13M11
Clamp (6e5)
Diagram Reference: 27
Get Part
90170−16M35
Nut(6e0)
Diagram Reference: 28
Get Part
6J1−24524−00
Lever, cock
Diagram Reference: 29
Get Part
90159−04M24
Screw, pan head (e56)
Diagram Reference: 30
Get Part
90445−09M27
Hose (l180)
Diagram Reference: 31
Get Part
90465−08M62
Clamp(6e0)
Diagram Reference: 32
Get Part
646−24251−02
Strainer 1
Diagram Reference: 33
Get Part
90445−09057
Hose (l180)
Diagram Reference: 34
Get Part
6G1−24304−02
Fuel pipe joint comp. 1
Diagram Reference: 35
Get Part
6E0−24312−00
Pipe 2
Diagram Reference: 36
Get Part
90464−09M21
Clamp(6j8)
Diagram Reference: 37
Get Part
6E0−82575−00
Engine stop switch assembly
Diagram Reference: 38
Get Part
682−82556−00
Lanyard, stop switch
Diagram Reference: 39
Get Part
689−8257Y−00
Cap
Diagram Reference: 40
Get Part
664−42791−00 (FOR USA)
Mark 1
Diagram Reference: 41
Get Part
664−42791−10 (FOR OCEANIA)
Mark 1
Diagram Reference: 41
Get Part
6A1−83625−41
Mark 5
Diagram Reference: 42
Get Part
