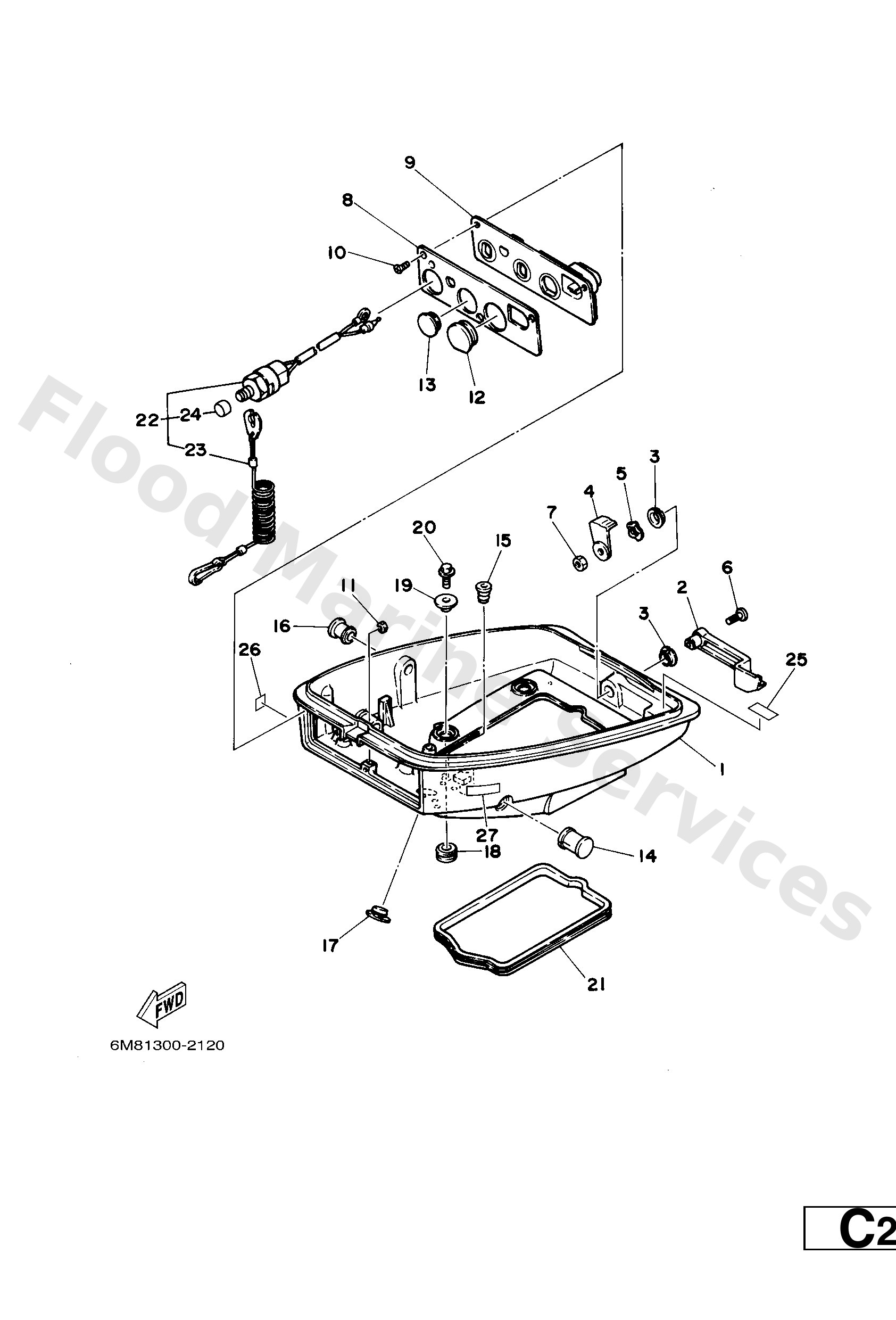

Diagram: BOTTOM COWLING

Diagram

Parts List

6N0G2711004D
Cowling, bottom 1
Diagram Reference: 1
Get Part
6N0G2815004D
Lever clamp
Diagram Reference: 2
Get Part
9038612M45
Bushing (6g1)
Diagram Reference: 3
Get Part
6E04281600
Lever, clamp
Diagram Reference: 4
Get Part
9020612052
Washer, wave (666)
Diagram Reference: 5
Get Part
9788506030
Screw, pan head(6e0)
Diagram Reference: 6
Get Part
9538006700
Nut
Diagram Reference: 7
Get Part
6N0G271980
Pannel front lower
Diagram Reference: 8
Get Part
6N0G276700
Bracket 3
Diagram Reference: 9
Get Part
9014905M02
Screw (6g1)
Diagram Reference: 10
Get Part
9538005700
Nut (656)
Diagram Reference: 11
Get Part
6G14272400
Grommet
Diagram Reference: 12
Get Part
6G14272500
Grommet
Diagram Reference: 13
Get Part
6G14272600
Grommet 3
Diagram Reference: 14
Get Part
6G14272700
Grommet
Diagram Reference: 15
Get Part
6G14274800
Grommet
Diagram Reference: 16
Get Part
6G12632600
Grommet
Diagram Reference: 17
Get Part
9048015M31
Grommet (6g1)
Diagram Reference: 18
Get Part
9038706M52
Collar (6g1)
Diagram Reference: 19
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 20
Get Part
6N0G271600
Rubber, seal 1
Diagram Reference: 21
Get Part
6E98257502
Engine stop switch assembly
Diagram Reference: 22
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 23
Get Part
6898257Y00
Cap
Diagram Reference: 24
Get Part
6E74279110
Mark 1
Diagram Reference: 25
Get Part
6H84279110
Mark 1
Diagram Reference: 25
Get Part
6N0F817600
Label, Caution
Diagram Reference: 26
Get Part
68DH257H00
-
Diagram Reference: 27
Get Part
