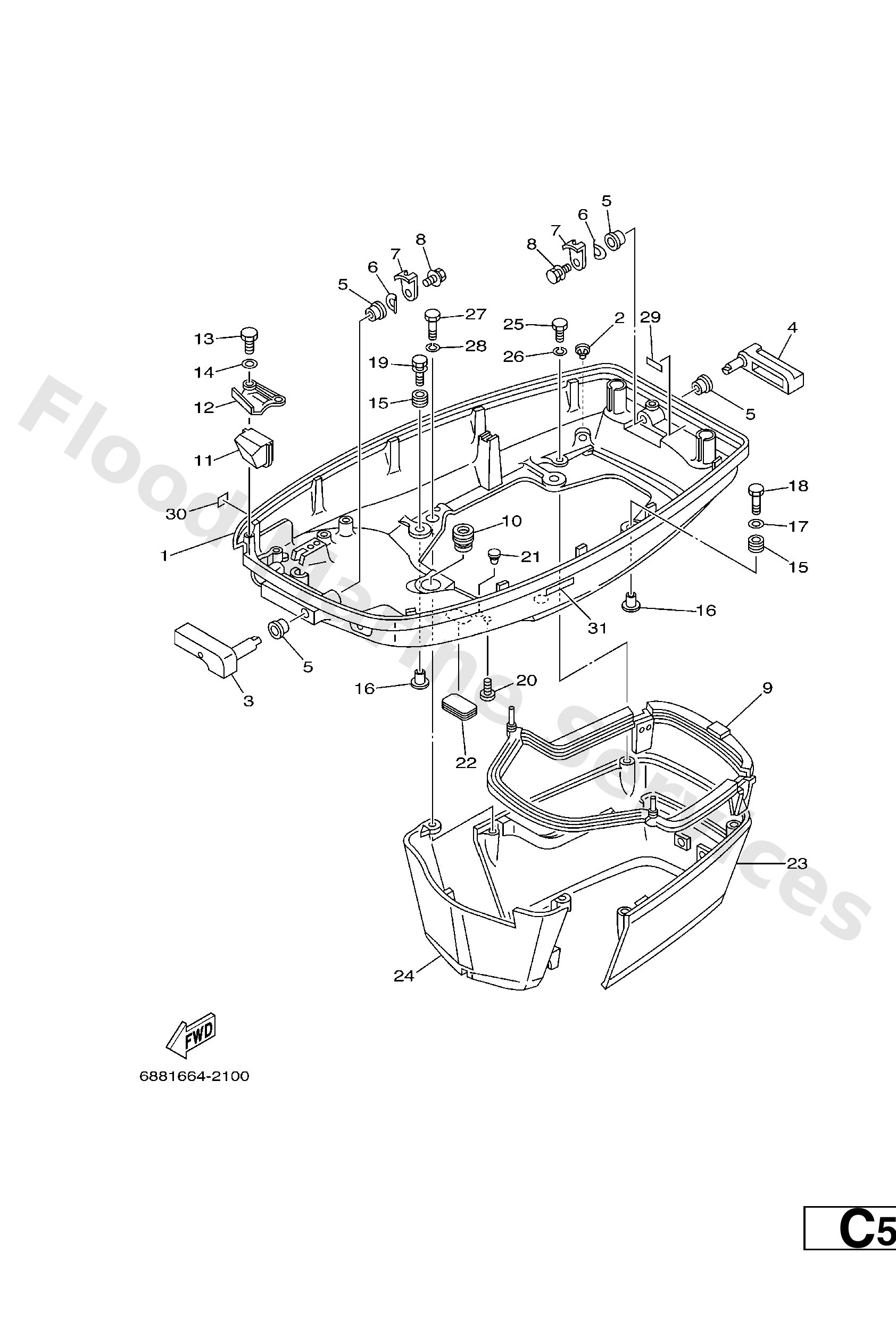

Diagram: BOTTOM COWLING

Diagram

Parts List

68842711044D
Cowling, bottom 1
Diagram Reference: 1
Get Part
6H34439101
Nipple, hose
Diagram Reference: 2
Get Part
68842815014D
Lever, clamp
Diagram Reference: 3
Get Part
68842817014D
Lever, clamp
Diagram Reference: 4
Get Part
9038613M38
Bushing (697)
Diagram Reference: 5
Get Part
9020613019
Washer, wave 6264283200
Diagram Reference: 6
Get Part
6884281600
Lever, clamp 2
Diagram Reference: 7
Get Part
9011906M09
Bolt, with washer
Diagram Reference: 8
Get Part
6884271602
Rubber seal 1
Diagram Reference: 9
Get Part
6634272400
Grommet
Diagram Reference: 10
Get Part
6884272502
Grommet
Diagram Reference: 11
Get Part
688427380194
Plate, fitting
Diagram Reference: 12
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 13
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 14
Get Part
9048009M12
Grommet (6a0)
Diagram Reference: 15
Get Part
9038706M69
Collar (688)
Diagram Reference: 16
Get Part
9020106416
Washer, plate(663)
Diagram Reference: 17
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 18
Get Part
9011906M61
Bolt, with washer
Diagram Reference: 19
Get Part
9033805M03
Plug (6h1)
Diagram Reference: 20
Get Part
7038211900
Cover, lead wire
Diagram Reference: 21
Get Part
6H44272600
Grommet
Diagram Reference: 22
Get Part
68842741014D
Apron
Diagram Reference: 23
Get Part
68842771014D
Apron
Diagram Reference: 24
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 25
Get Part
9299506100
Washer(6a1)
Diagram Reference: 26
Get Part
6G54279110
Mark 1
Diagram Reference: 29
Get Part
6A12817600
Label, Caution
Diagram Reference: 30
Get Part
6E38257H00
-
Diagram Reference: 31
Get Part
