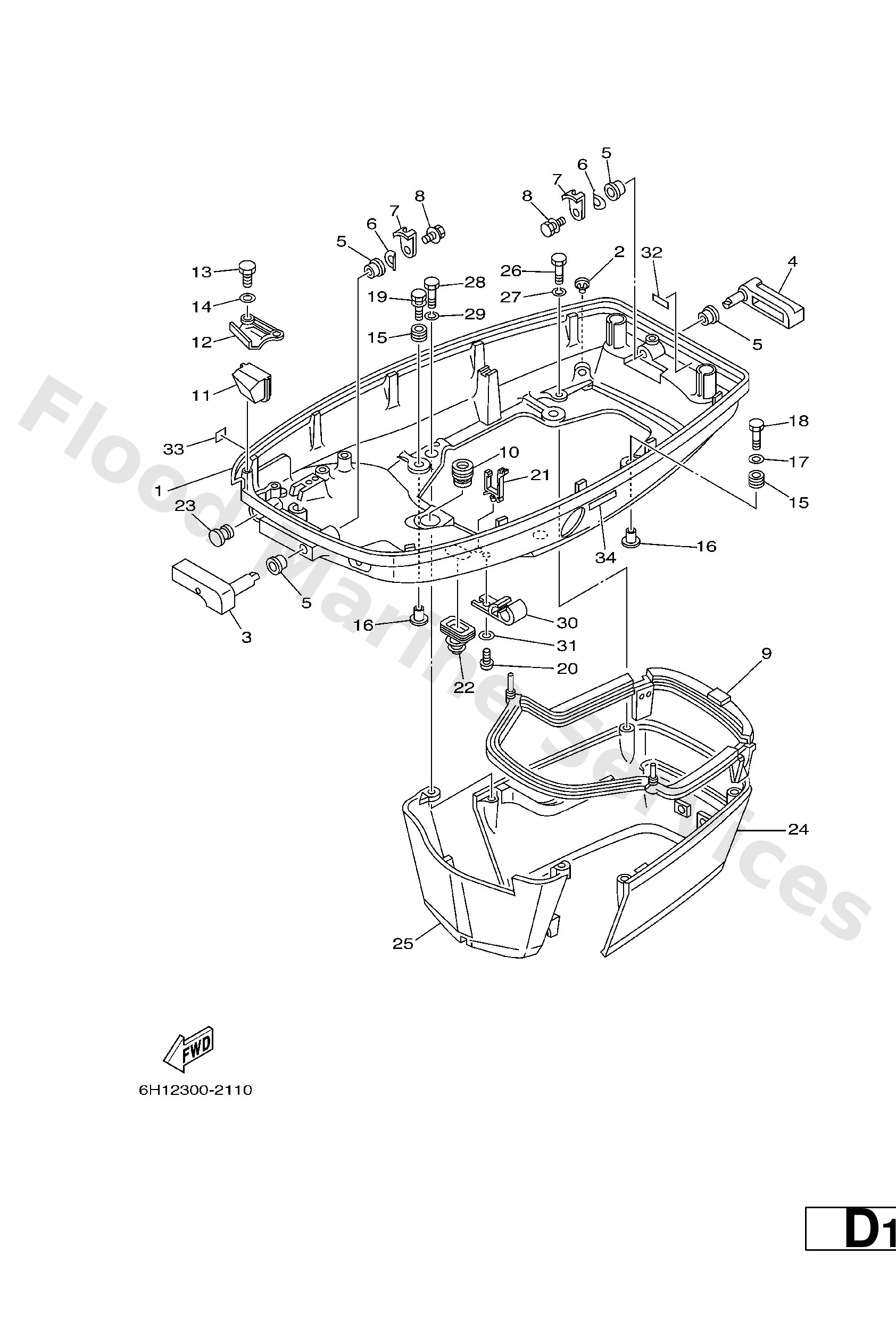

Diagram: BOTTOM COWLING

Diagram

Parts List

6H1−42711−01−4D

Cowling, bottom 1

Diagram Reference: 1

6H3−44391−01

Nipple, hose

Diagram Reference: 2

688−42815−01−4D

Lever, clamp

Diagram Reference: 3

688−42817−01−4D

Lever, clamp

Diagram Reference: 4

90386−13M38

Bushing (697)

Diagram Reference: 5

90206−13019

Washer, wave 6264283200

Diagram Reference: 6

688−42816−00

Lever, clamp 2

Diagram Reference: 7

90119−06M09

Bolt, with washer

Diagram Reference: 8

688−42716−02

Rubber seal 1

Diagram Reference: 9

663−42724−00

Grommet

Diagram Reference: 10

688−42725−20

Grommet

Diagram Reference: 11

688−42738−01−94

Plate, fitting

Diagram Reference: 12

97095−06016

Bolt, hexagon deep recess

Diagram Reference: 13

92995−06600

Washer, plain (646)

Diagram Reference: 14

90480−09M12

Grommet (6a0)

Diagram Reference: 15

90387−06M69

Collar (688)

Diagram Reference: 16

90201−06416

Washer, plate(663)

Diagram Reference: 17

97095−06030

Bolt(jf7)

Diagram Reference: 18

90119−06M61

Bolt, with washer

Diagram Reference: 19

90157−06M01

Screw (6e5)

Diagram Reference: 20

90464−15M08

Clamp (6h1)

Diagram Reference: 21

688−42726−10

Grommet

Diagram Reference: 22

6G1−42748−00

Grommet

Diagram Reference: 23

688−42741−01−4D

Apron

Diagram Reference: 24

688−42771−01−4D

Apron

Diagram Reference: 25

97095−06020

Bolt(7u8)

Diagram Reference: 26

92995−06100

Washer(6a1)

Diagram Reference: 27

6E5−24367−01

Clamp, fuel pipe 2

Diagram Reference: 30

92990−06600

Washer, plain (646)

Diagram Reference: 31

6G5−42791−10

Mark 1

Diagram Reference: 32

6A1−28176−00

Label, Caution

Diagram Reference: 33

6E3−8257H−00

18 −

Diagram Reference: 34
