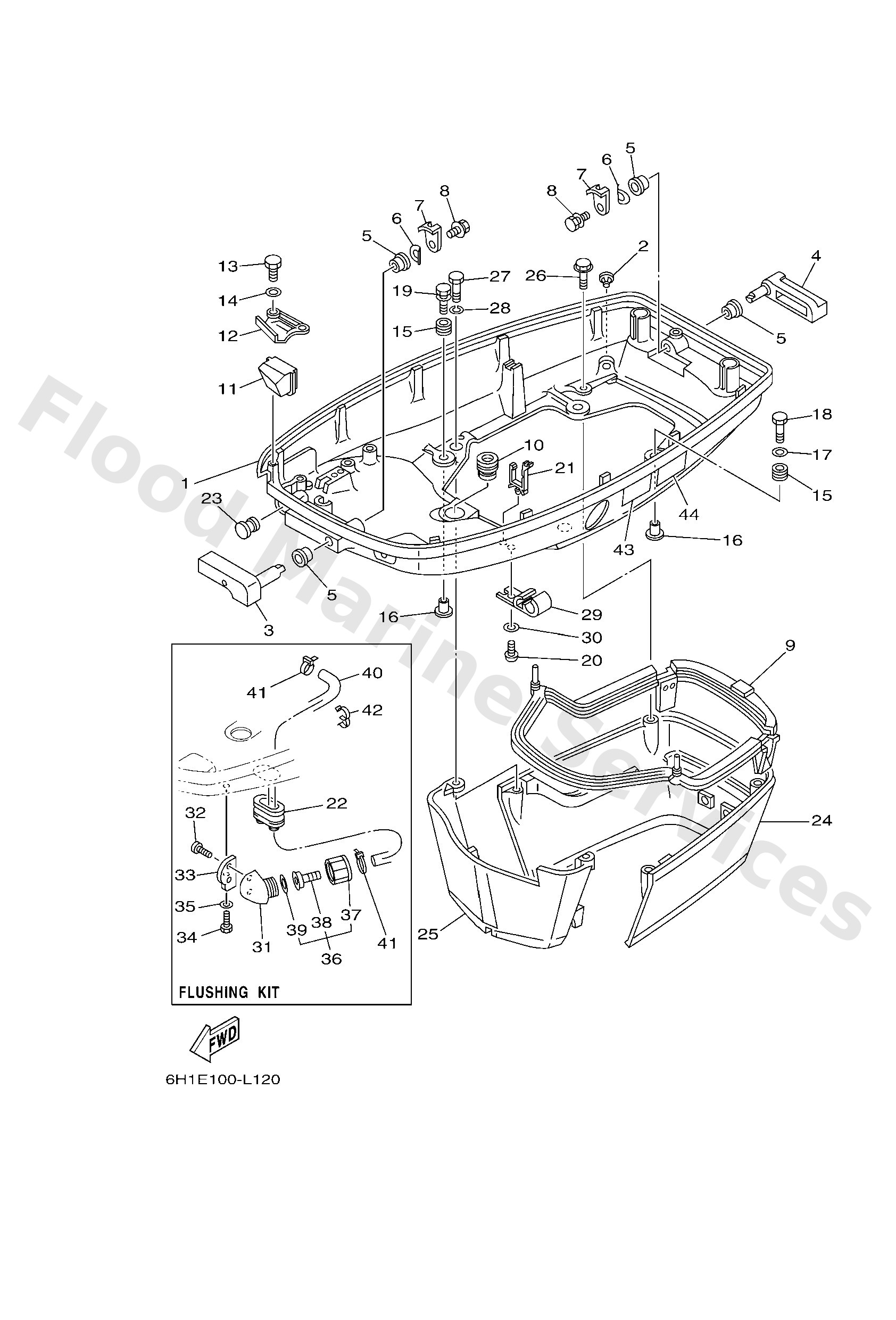

Diagram: BOTTOM COWLING

Diagram

Parts List

6H142711108D (FLUSHING KIT)
Cowling, bottom 1
Diagram Reference: 1
Get Part
6BL4439100
Nipple, hose
Diagram Reference: 2
Get Part
68842815018D
Lever, clamp
Diagram Reference: 3
Get Part
68842817018D
Lever, clamp
Diagram Reference: 4
Get Part
9038613M38
Bushing (697)
Diagram Reference: 5
Get Part
9020613019
Washer, wave 6264283200
Diagram Reference: 6
Get Part
6884281600
Lever, clamp 2
Diagram Reference: 7
Get Part
9011906M09
Bolt, with washer
Diagram Reference: 8
Get Part
6884271602
Rubber seal 1
Diagram Reference: 9
Get Part
6634272400
Grommet
Diagram Reference: 10
Get Part
6884272520
Grommet
Diagram Reference: 11
Get Part
68842738018D
Plate, fitting
Diagram Reference: 12
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 13
Get Part
9299506600 (FLUSHING KIT)
Washer, plain (646)
Diagram Reference: 35
Get Part
6BG4274800
Grommet
Diagram Reference: 15
Get Part
9038706M69
Collar (688)
Diagram Reference: 16
Get Part
9020106416
Washer, plate(663)
Diagram Reference: 17
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 18
Get Part
9011906M61
Bolt, with washer
Diagram Reference: 19
Get Part
9015706M01
Screw (6e5)
Diagram Reference: 20
Get Part
9046415M08
Clamp (6h1)
Diagram Reference: 21
Get Part
6H14272621 (FLUSHING KIT)
Grommet
Diagram Reference: 22
Get Part
6G14274800
Grommet
Diagram Reference: 23
Get Part
68842741018D
Apron
Diagram Reference: 24
Get Part
68842771018D
Apron
Diagram Reference: 25
Get Part
9759506420
Bolt(7u8)
Diagram Reference: 26
Get Part
9299506100
Washer(6a1)
Diagram Reference: 28
Get Part
6E52436701
Clamp, fuel pipe 2
Diagram Reference: 29
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 30
Get Part
68T1257200 (FLUSHING KIT)
Adapter
Diagram Reference: 31
Get Part
9016706002 (FLUSHING KIT)
Screw, tapping
Diagram Reference: 32
Get Part
6H11253500 (FLUSHING KIT)
Plate
Diagram Reference: 33
Get Part
9709506020 (FLUSHING KIT)
Bolt(7u8)
Diagram Reference: 34
Get Part
6R31258000 (FLUSHING KIT)
Joint assembly
Diagram Reference: 36
Get Part
6R31258100
Joint, hose 1
Diagram Reference: 37
Get Part
6R31258200
Joint, hose 2
Diagram Reference: 38
Get Part
6R31258300
Gasket, hose joint
Diagram Reference: 39
Get Part
6H12431201 (FLUSHING KIT)
Pipe 2
Diagram Reference: 40
Get Part
9046511M10 (FLUSHING KIT)
Clamp
Diagram Reference: 41
Get Part
9046409M31 (FLUSHING KIT)
Clamp(6m7)
Diagram Reference: 42
Get Part
6AH4279440
Label, warning (ge
Diagram Reference: 43
Get Part
6AH4279450
Label, warning (ge
Diagram Reference: 44
Get Part
