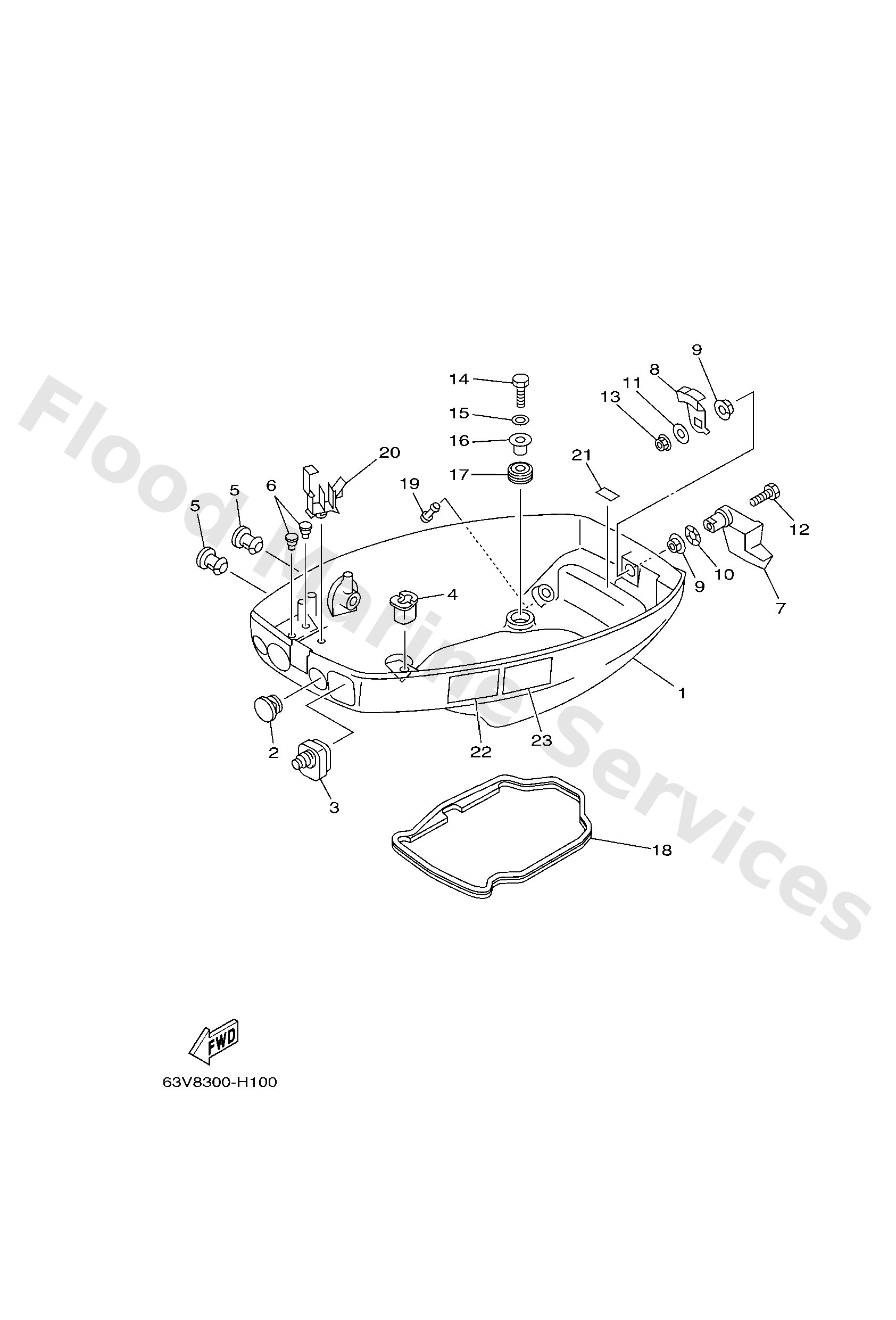

Diagram: BOTTOM COWLING
Parts List
Cowling, bottom
Diagram Reference: 1
Grommet
Diagram Reference: 2
Grommet
Diagram Reference: 3
Grommet
Diagram Reference: 4
Grommet
Diagram Reference: 5
Grommet (6e3)
Diagram Reference: 6
Lever, clamp
Diagram Reference: 7
Lever, clamp 2
Diagram Reference: 8
Bushing (6g1)
Diagram Reference: 9
Washer, wave (666)
Diagram Reference: 10
Washer,plate (6k8)
Diagram Reference: 11
Bolt
Diagram Reference: 12
Nut
Diagram Reference: 13
Washer, plain (646)
Diagram Reference: 15
Collar (6g1)
Diagram Reference: 16
Grommet (6g1)
Diagram Reference: 17
Rubber, seal 1
Diagram Reference: 18
Nipple, hose
Diagram Reference: 19
Clamp(63v)
Diagram Reference: 20
Mark 1
Diagram Reference: 21
Label, warning (ge
Diagram Reference: 22
Label, warning (ge
Diagram Reference: 23
