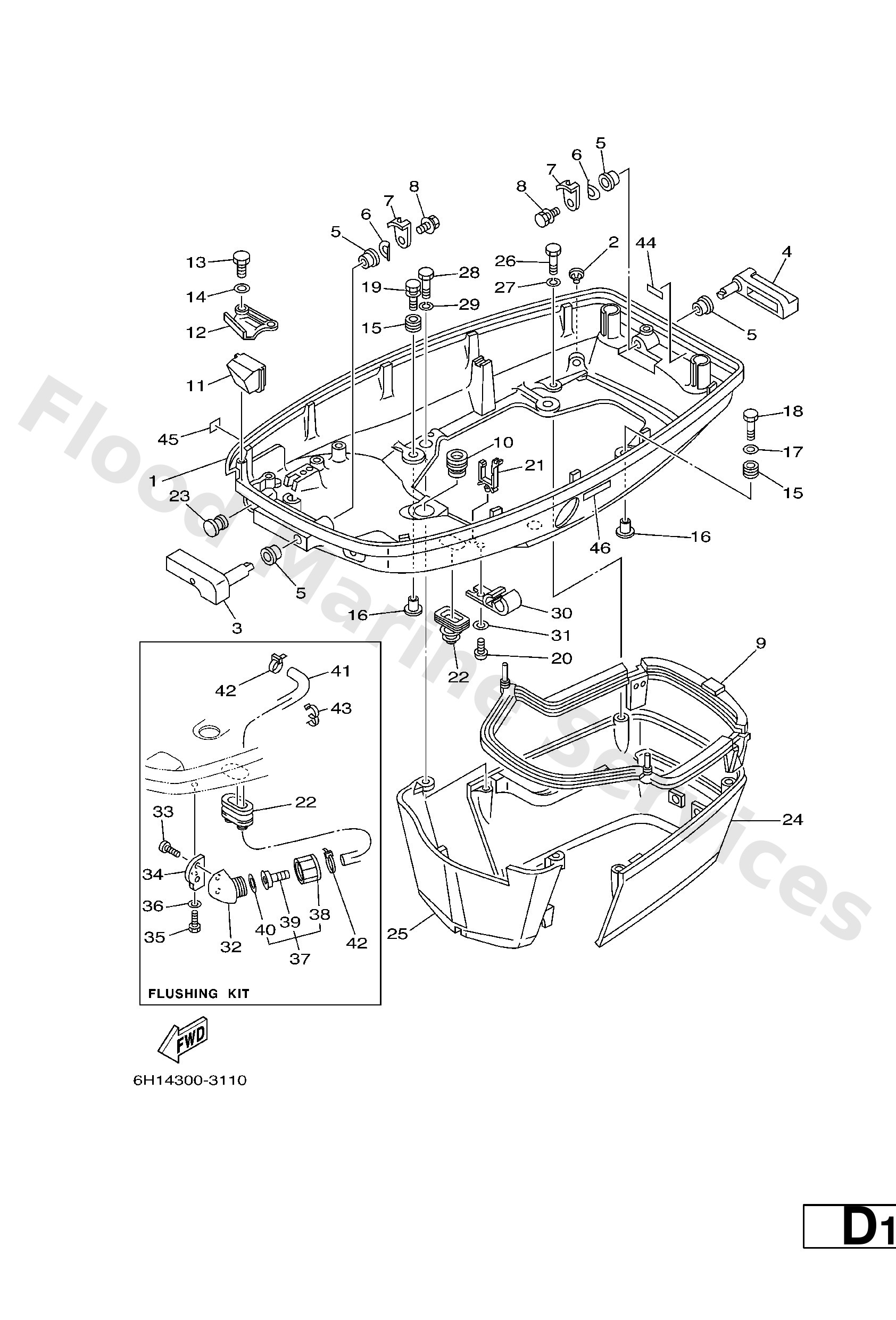

Diagram: BOTTOM COWLING

Diagram

Parts List

6H142711104D
Cowling, bottom
Diagram Reference: 1
Get Part
6H3--44391--01
Nipple, hose
Diagram Reference: 2
Get Part
688--42815--01--4D
Lever, clamp
Diagram Reference: 3
Get Part
68842817014D
Lever, clamp
Diagram Reference: 4
Get Part
90386--13M38
Bushing (697)
Diagram Reference: 5
Get Part
90206--13019
Washer, wave 6264283200
Diagram Reference: 6
Get Part
688--42816--00
Lever, clamp 2
Diagram Reference: 7
Get Part
90119--06M09
Bolt, with washer
Diagram Reference: 8
Get Part
688--42716--02
Rubber seal 1
Diagram Reference: 9
Get Part
663--42724--00
Grommet
Diagram Reference: 10
Get Part
688--42725--20
Grommet
Diagram Reference: 11
Get Part
688427380194
Plate, fitting
Diagram Reference: 12
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 13
Get Part
92995--06600 (FLUSHING KIT)
Washer, plain (646)
Diagram Reference: 36
Get Part
90480--09M12
Grommet (6a0)
Diagram Reference: 15
Get Part
90387--06M69
Collar (688)
Diagram Reference: 16
Get Part
90201--06416
Washer, plate(663)
Diagram Reference: 17
Get Part
97095--06030
Bolt(jf7)
Diagram Reference: 18
Get Part
90119--06M61
Bolt, with washer
Diagram Reference: 19
Get Part
90157--06M01
Screw (6e5)
Diagram Reference: 20
Get Part
90464--15M08
Clamp (6h1)
Diagram Reference: 21
Get Part
688--42726--10
Grommet
Diagram Reference: 22
Get Part
6H14272620 (FOR FLUSHING KIT)
Grommet
Diagram Reference: 22
Get Part
6G1--42748--00
Grommet
Diagram Reference: 23
Get Part
68842741014D
Apron
Diagram Reference: 24
Get Part
68842771014D
Apron
Diagram Reference: 25
Get Part
97095--06020 (FLUSHING KIT)
Bolt(7u8)
Diagram Reference: 35
Get Part
92995--06100
Washer(6a1)
Diagram Reference: 27
Get Part
6E5--24367--01
Clamp, fuel pipe 2
Diagram Reference: 30
Get Part
92990--06600
Washer, plain (646)
Diagram Reference: 31
Get Part
68T--12572--00 (FLUSHING KIT)
Adapter
Diagram Reference: 32
Get Part
90167--06002 (FLUSHING KIT)
Screw, tapping
Diagram Reference: 33
Get Part
6H1--12535--00 (FLUSHING KIT)
Plate
Diagram Reference: 34
Get Part
6R3--12580--00 (FLUSHING KIT)
Joint assembly
Diagram Reference: 37
Get Part
6R3--12581--00
Joint, hose 1
Diagram Reference: 38
Get Part
6R3--12582--00
Joint, hose 2
Diagram Reference: 39
Get Part
6R3--12583--00
Gasket, hose joint
Diagram Reference: 40
Get Part
6H1--24312--01 (FLUSHING KIT)
Pipe 2
Diagram Reference: 41
Get Part
90465--11M10 (FLUSHING KIT)
Clamp
Diagram Reference: 42
Get Part
90464--09M31 (FLUSHING KIT)
Clamp(6m7)
Diagram Reference: 43
Get Part
6G5--42791--10
Mark 1
Diagram Reference: 44
Get Part
6A1--28176--00
Label, Caution
Diagram Reference: 45
Get Part
6E3--8257H--00
Plate, Mark
Diagram Reference: 46
