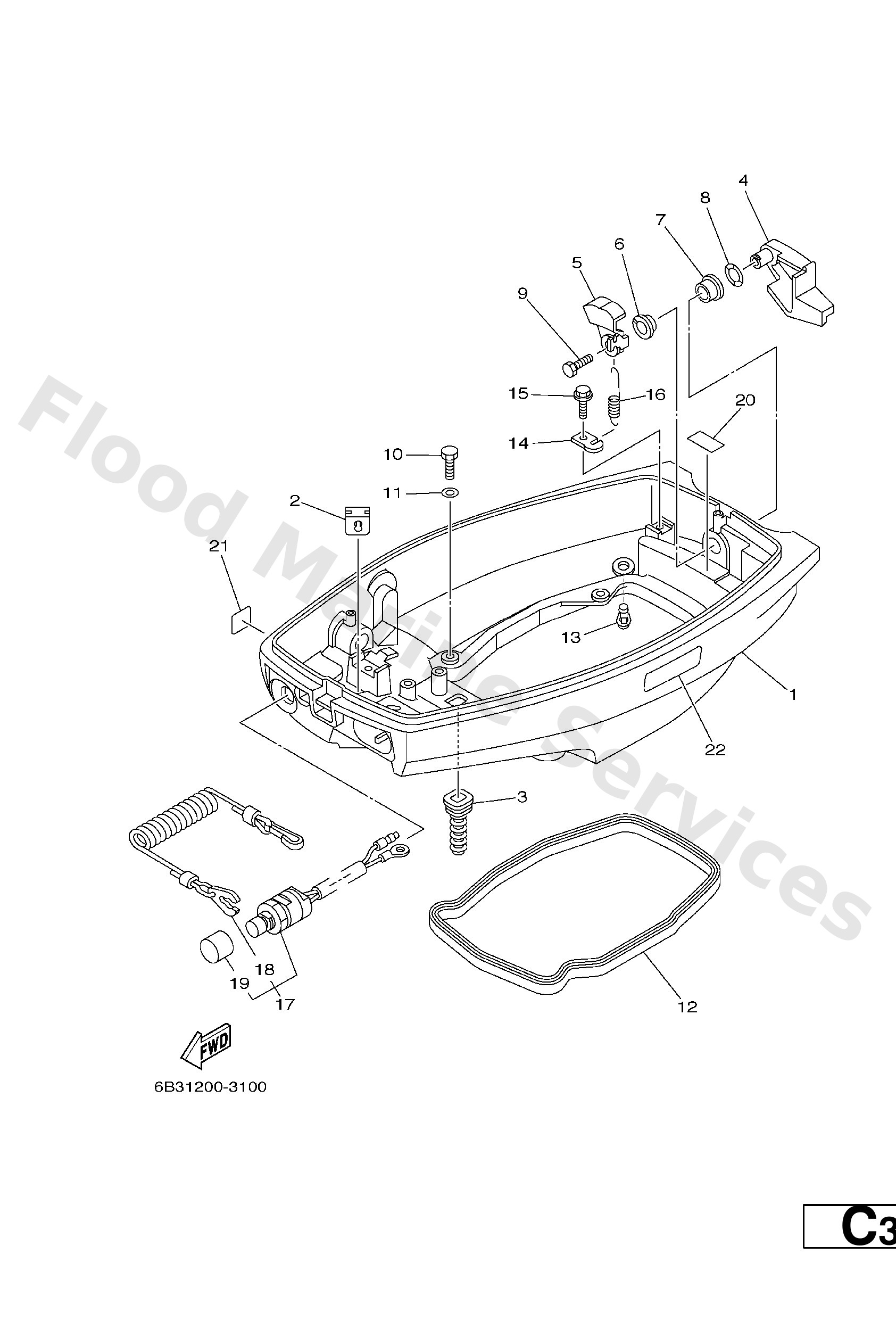

Diagram: BOTTOM COWLING

Diagram

Parts List

6B4−42711−00−4D
Cowling, bottom
Diagram Reference: 1
Get Part
61N−26326−00
Grommet
Diagram Reference: 2
Get Part
6B4−42727−00
Grommet
Diagram Reference: 3
Get Part
6B4−42815−00−4D
Lever, clamp
Diagram Reference: 4
Get Part
6B4−42816−00
Lever, clamp
Diagram Reference: 5
Get Part
90386−12M45
Bushing (6g1)
Diagram Reference: 6
Get Part
90386−12MA2
Bush
Diagram Reference: 7
Get Part
90206−12052
Washer, wave (666)
Diagram Reference: 8
Get Part
97095−06014
Bolt(gj3)
Diagram Reference: 9
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 10
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 11
Get Part
6B4−42716−00
Rubber, seal 1
Diagram Reference: 12
Get Part
6H3−44391−01
Nipple, hose
Diagram Reference: 13
Get Part
66T−43144−00
Hook, spring
Diagram Reference: 14
Get Part
90109−06M80
Bolt
Diagram Reference: 15
Get Part
90506−18009
Spring, tension
Diagram Reference: 16
Get Part
689−82575−04
Engine stop switch assembly
Diagram Reference: 17
Get Part
682−82556−00
Lanyard, stop switch
Diagram Reference: 18
Get Part
689−8257Y−00
Cap
Diagram Reference: 19
Get Part
6G5−42791−00
Mark 1
Diagram Reference: 20
Get Part
6G5−42791−10 (CARIB)
Mark 1
Diagram Reference: 20
Get Part
6A1−28176−00 (CARIB)
Label, Caution
Diagram Reference: 21
Get Part
6E3−8257H−00 (CARIB)
18 −
Diagram Reference: 22
Get Part
