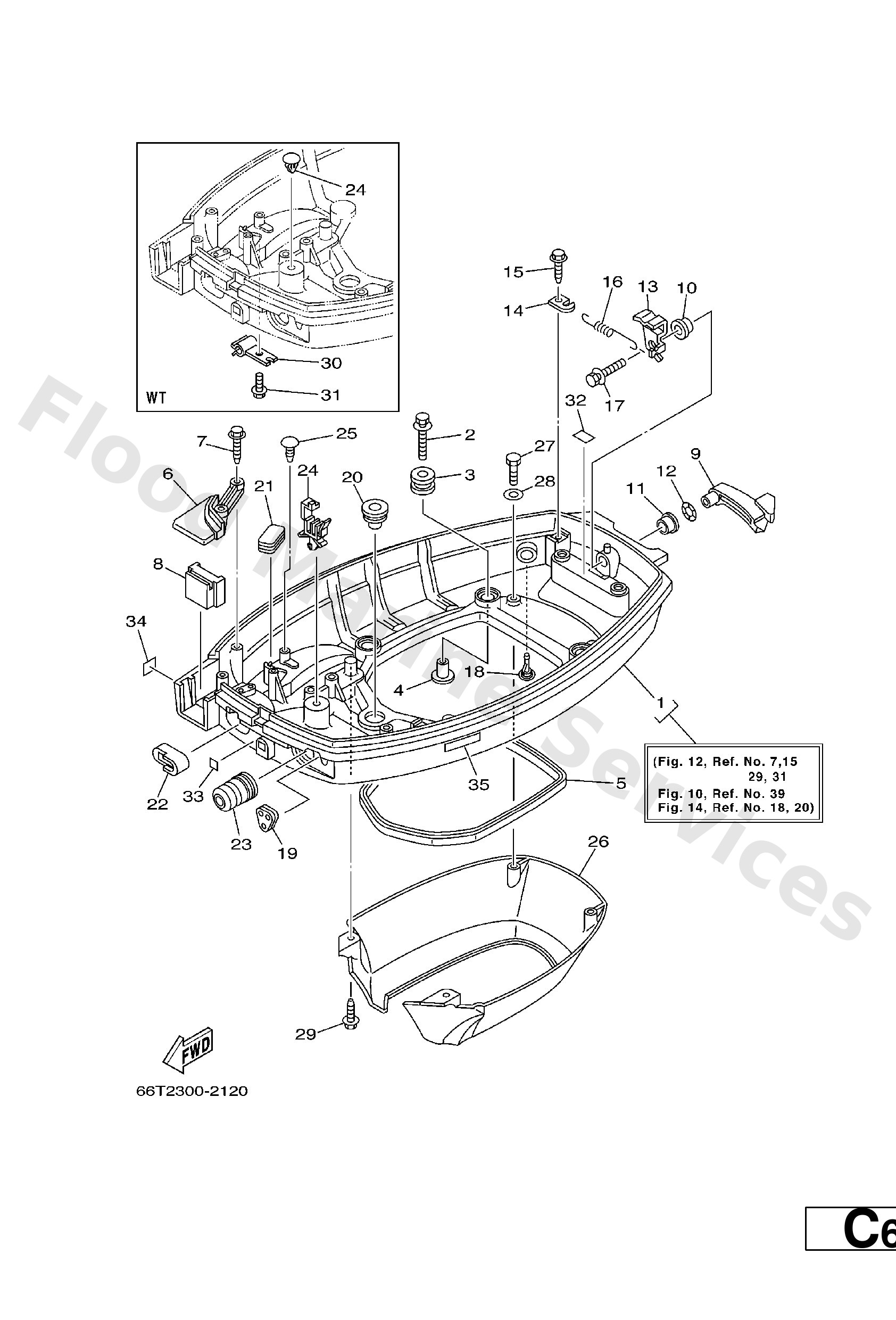

Diagram: BOTTOM COWLING

Diagram

Parts List

66T--42710--01--4D
Bottom cowling assembly
Diagram Reference: 1
Get Part
90119--06M61
Bolt, with washer
Diagram Reference: 2
Get Part
90480--09M21
Grommet (6e9)
Diagram Reference: 3
Get Part
9038706035
Coller (6e9)
Diagram Reference: 4
Get Part
66T--42716--00
Rubber, seal 1
Diagram Reference: 5
Get Part
66T42738005B
Plate, fitting
Diagram Reference: 6
Get Part
90109--06M81
Bolt
Diagram Reference: 7
Get Part
66T--42725--00
Grommet
Diagram Reference: 8
Get Part
66T4272520
Grommet
Diagram Reference: 8
Get Part
66T--42815--01--4D
Lever, clamp
Diagram Reference: 9
Get Part
90386--12M37
Bushing (6f5)
Diagram Reference: 10
Get Part
90386--12MA2
Bush
Diagram Reference: 11
Get Part
90206--12052
Washer, wave (666)
Diagram Reference: 12
Get Part
66T--42816--00
Lever, clamp
Diagram Reference: 13
Get Part
66T--43144--00
Hook, spring
Diagram Reference: 14
Get Part
90109--06M86
Bolt
Diagram Reference: 15
Get Part
90506--16M34
Spring, tension(64d)
Diagram Reference: 16
Get Part
90119--06M73
Bolt(gh1)
Diagram Reference: 17
Get Part
6E5--44391--00
Nipple, hose
Diagram Reference: 18
Get Part
65W--26326--10
Grommet
Diagram Reference: 19
Get Part
65W--26326--00
Grommet
Diagram Reference: 19
Get Part
676--42727--00
Grommet 4
Diagram Reference: 20
Get Part
6H4--42726--00
Grommet
Diagram Reference: 21
Get Part
6H1--42726--10
Grommet
Diagram Reference: 21
Get Part
66T--24329--00
Seal
Diagram Reference: 22
Get Part
65W--42726--00
Grommet
Diagram Reference: 23
Get Part
65W--42726--10
Grommet
Diagram Reference: 23
Get Part
90465--25M57
Clamp(63v)
Diagram Reference: 24
Get Part
90338--07M00
Plug(6j8)
Diagram Reference: 24
Get Part
90338--05M03
Plug (6h1)
Diagram Reference: 25
Get Part
66T--42741--00
Apron
Diagram Reference: 26
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 27
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 28
Get Part
90109--06M80
Bolt
Diagram Reference: 29
Get Part
90464--09M49
Clamp
Diagram Reference: 30
Get Part
6644279110
Mark 1
Diagram Reference: 32
Get Part
6A14279201
Mark (100)1)
Diagram Reference: 33
Get Part
6A1--28176--00
Label, Caution
Diagram Reference: 34
Get Part
6E3--8257H--00
Plate, Mark
Diagram Reference: 35
