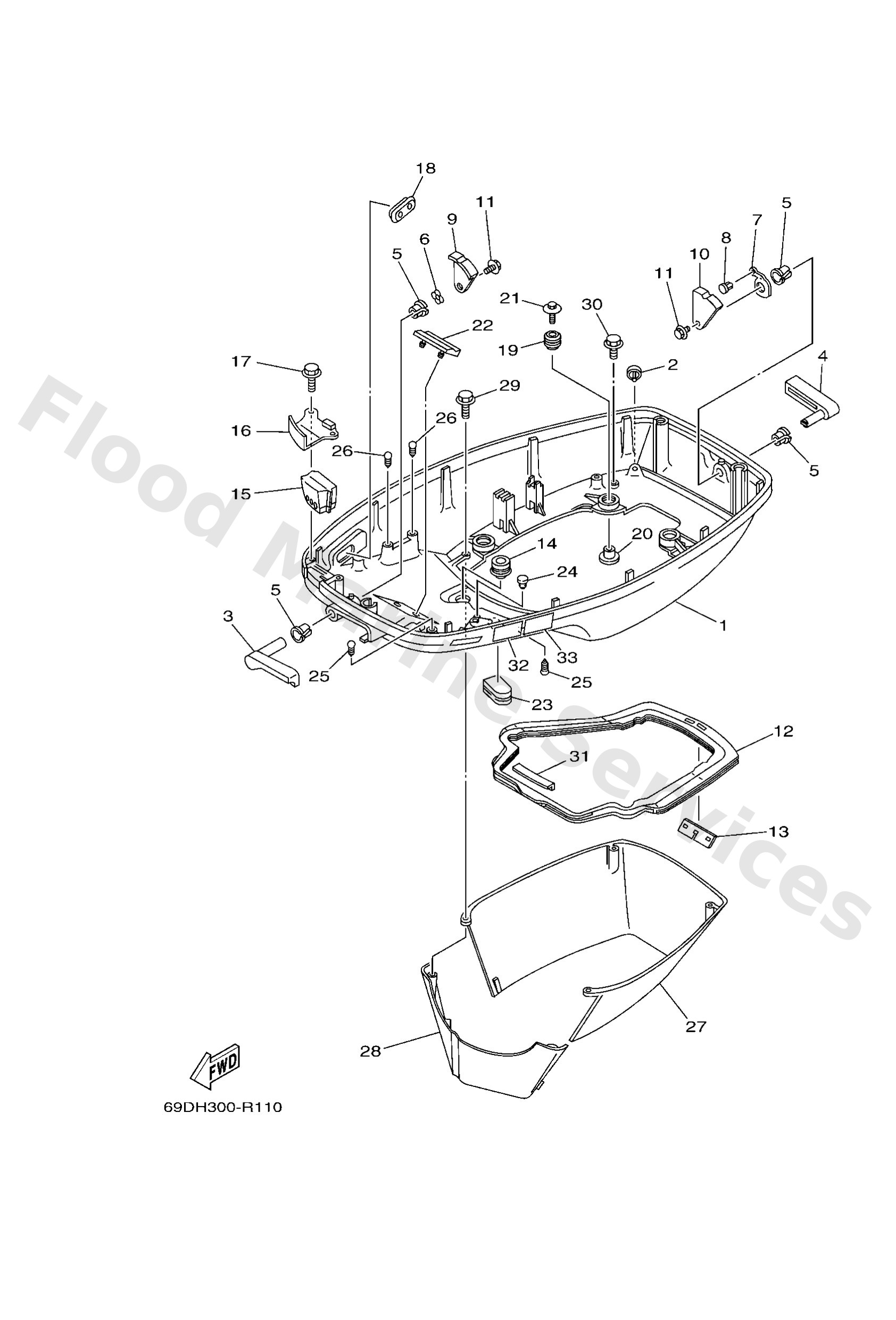

Diagram: BOTTOM COWLING

Diagram

Parts List

6H342711158D
Cowling, bottom 1
Diagram Reference: 1
Get Part
69D4439100
Nipple, hose
Diagram Reference: 2
Get Part
6H342815018D
Lever, clamp
Diagram Reference: 3
Get Part
6H342817018D
Lever, clamp
Diagram Reference: 4
Get Part
9038613M38
Bushing (697)
Diagram Reference: 5
Get Part
9020613M10
Washer, wave (6e5)
Diagram Reference: 6
Get Part
6H34281300
Spring, clamp lever
Diagram Reference: 7
Get Part
9026904M03
Rivet (6h3)
Diagram Reference: 8
Get Part
6H34281600
Lever, clamp 2
Diagram Reference: 9
Get Part
6H34281800
Lever, clamp 4
Diagram Reference: 10
Get Part
9011906M09
Bolt, with washer
Diagram Reference: 11
Get Part
6H34271602
Rubber, seal 1
Diagram Reference: 12
Get Part
6K54271700
Rubber, seal 2
Diagram Reference: 13
Get Part
6E54272400
Grommet
Diagram Reference: 14
Get Part
6K54272500
Grommet
Diagram Reference: 15
Get Part
6H34273801CA
Plate, fitting
Diagram Reference: 16
Get Part
9759506516
Bolt, with washer(6r6)
Diagram Reference: 17
Get Part
6H34272700
Grommet
Diagram Reference: 18
Get Part
6BG4274800
Grommet
Diagram Reference: 19
Get Part
9038706M69
Collar (688)
Diagram Reference: 20
Get Part
9011906M61
Bolt, with washer
Diagram Reference: 21
Get Part
6H34276800
Damper
Diagram Reference: 22
Get Part
6H44272600
Grommet
Diagram Reference: 23
Get Part
7038211900
Cover, lead wire
Diagram Reference: 24
Get Part
9033805M03
Plug (6h1)
Diagram Reference: 25
Get Part
6H342741018D
Apron
Diagram Reference: 27
Get Part
6H342771018D
Apron
Diagram Reference: 28
Get Part
9759506525
Bolt, hexagon w/w deep recess
Diagram Reference: 29
Get Part
9759506520
Bolt(7u8)
Diagram Reference: 30
Get Part
6H34271800
Rubber, seal 3
Diagram Reference: 31
Get Part
6EE4279440
Label, warning (general)
Diagram Reference: 32
Get Part
6EE4279450
Label, warning (general)
Diagram Reference: 33
Get Part
