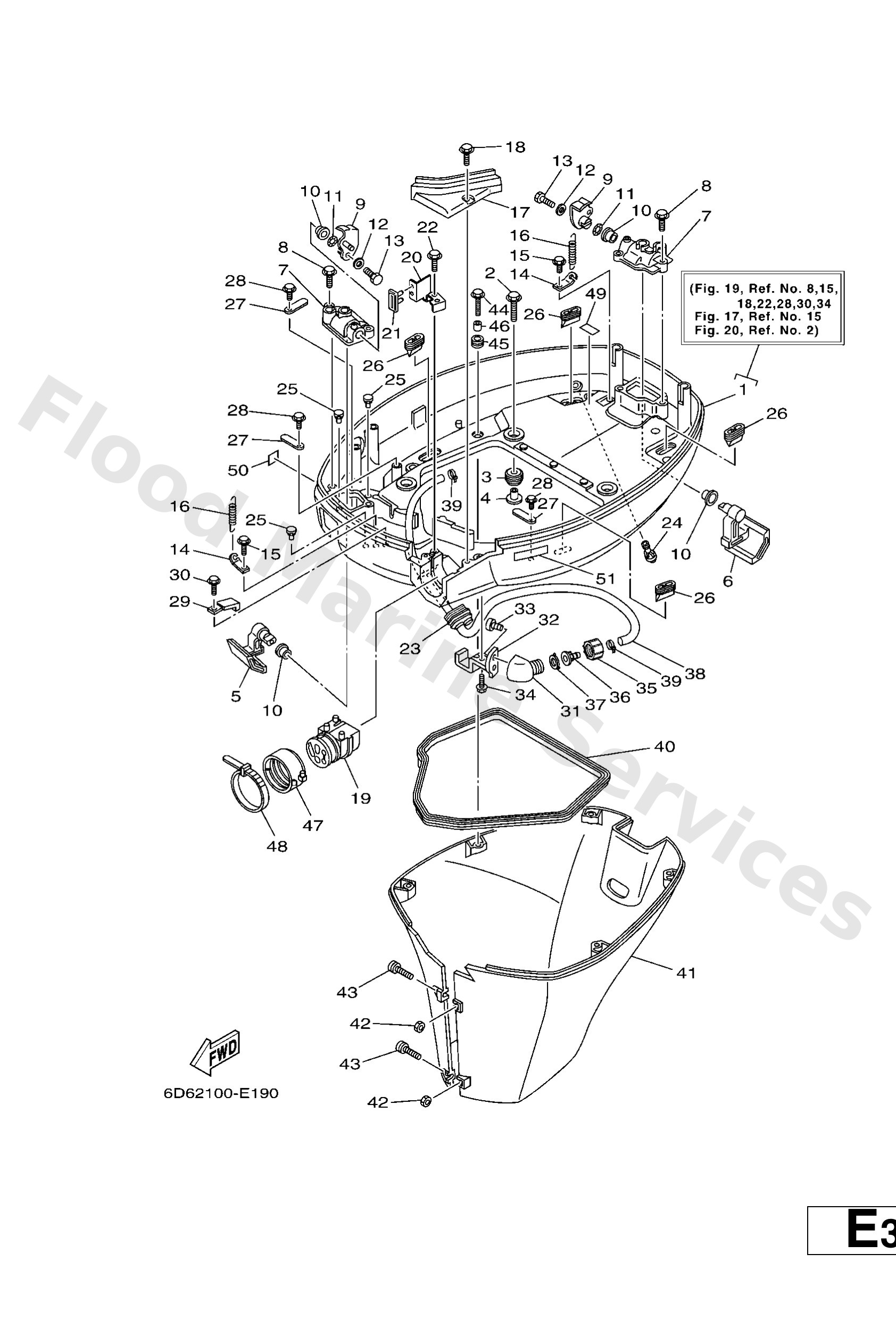

Diagram: BOTTOM COWLING
Parts List
Bottom cowling assembly
Diagram Reference: 1
Bolt, with washer
Diagram Reference: 2
Grommet (6e5)
Diagram Reference: 3
Coller (6e5)
Diagram Reference: 4
Lever, clamp
Diagram Reference: 5
Lever, clamp
Diagram Reference: 6
Plate, clamp
Diagram Reference: 7
Bolt
Diagram Reference: 8
Lever, clamp
Diagram Reference: 9
Bush(6l2)
Diagram Reference: 10
Washer, wave(6l2)
Diagram Reference: 11
Washer,plate (6k8)
Diagram Reference: 12
Bolt
Diagram Reference: 13
Hook, spring
Diagram Reference: 14
Bolt
Diagram Reference: 34
Spring, tension(64d)
Diagram Reference: 16
Plate, fitting
Diagram Reference: 17
Bolt
Diagram Reference: 18
Grommet
Diagram Reference: 19
Stay, clamp
Diagram Reference: 20
Rubber, seal 2
Diagram Reference: 21
Grommet
Diagram Reference: 23
Nipple, Hose
Diagram Reference: 24
Grommet
Diagram Reference: 25
Rubber, seal 2
Diagram Reference: 26
Plate
Diagram Reference: 27
Bolt
Diagram Reference: 28
Clamp (6h3)
Diagram Reference: 29
Adapter
Diagram Reference: 31
Plate
Diagram Reference: 32
Screw, tapping
Diagram Reference: 33
Joint, hose 1
Diagram Reference: 35
Joint, hose 2
Diagram Reference: 36
Gasket, hose joint
Diagram Reference: 37
Pipe 2
Diagram Reference: 38
Clamp
Diagram Reference: 39
Rubber seal 1
Diagram Reference: 40
Apron
Diagram Reference: 41
Nut, Hexagon
Diagram Reference: 42
Screw, with washer
Diagram Reference: 43
Bolt
Diagram Reference: 44
Grommet
Diagram Reference: 45
Coller (6e9)
Diagram Reference: 46
Fastner
Diagram Reference: 47
Clamp
Diagram Reference: 48
Label (sparkplug mark)
Diagram Reference: 49
Plate, Mark
