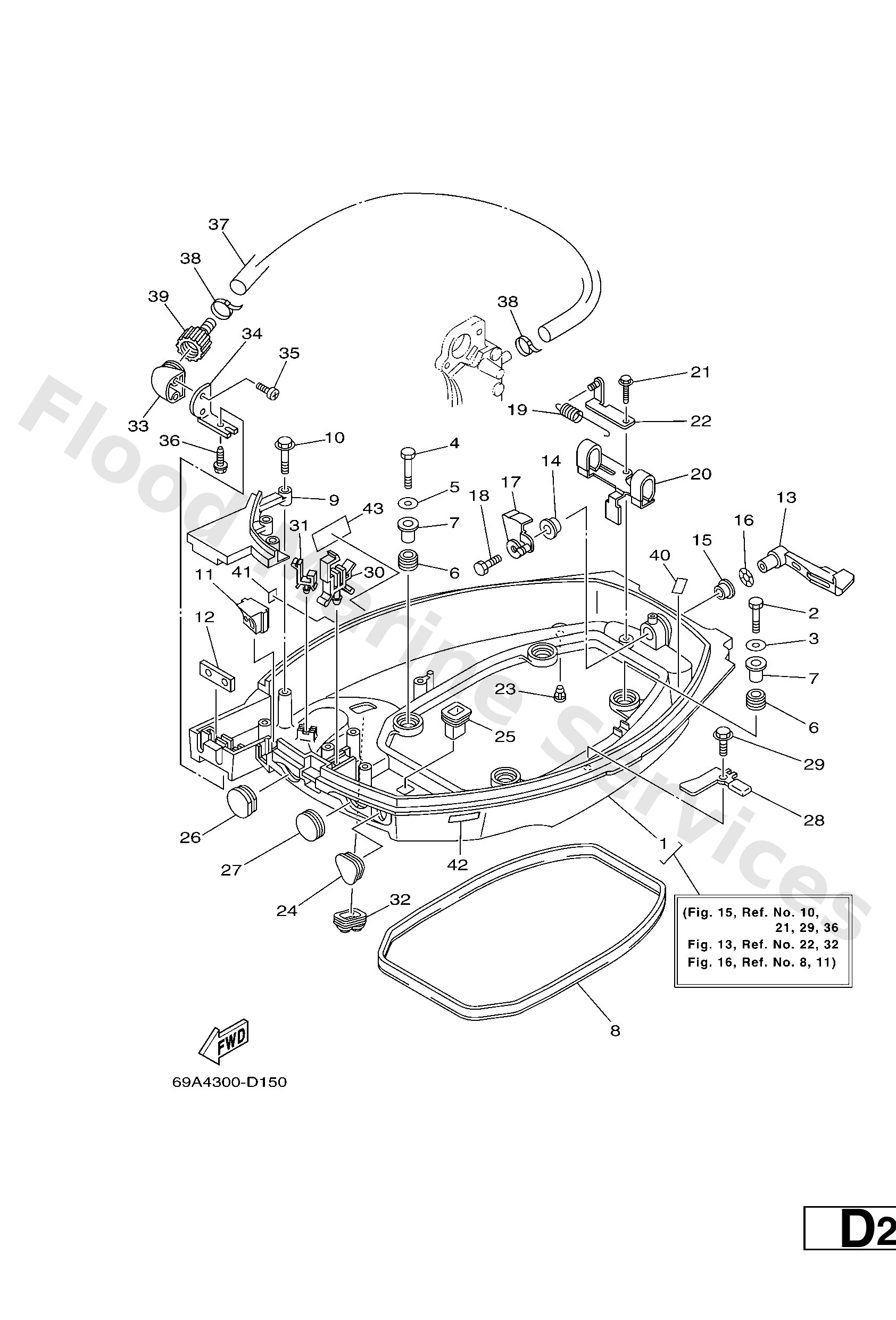

Diagram: BOTTOM COWLING
Parts List
Bottom cowling assembly
Diagram Reference: 1
Bolt(j52)
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Bolt
Diagram Reference: 4
Grommet (6g1)
Diagram Reference: 6
Collar (6g1)
Diagram Reference: 7
Rubber, seal 1
Diagram Reference: 8
Plate, fitting
Diagram Reference: 9
Bolt
Diagram Reference: 10
Grommet
Diagram Reference: 11
Grommet
Diagram Reference: 12
Lever, clamp 1
Diagram Reference: 13
Bushing (6f5)
Diagram Reference: 14
Bush
Diagram Reference: 15
Washer, wave (666)
Diagram Reference: 16
Lever, Clamp
Diagram Reference: 17
Bolt(gh1)
Diagram Reference: 18
Spring, Tension
Diagram Reference: 19
Bracket 2
Diagram Reference: 20
Bolt
Diagram Reference: 21
Hook, Spring
Diagram Reference: 22
Nipple, hose
Diagram Reference: 23
Grommet
Diagram Reference: 24
Grommet
Diagram Reference: 25
Grommet
Diagram Reference: 26
Grommet
Diagram Reference: 27
Bracket
Diagram Reference: 28
Bolt
Diagram Reference: 36
Clamp
Diagram Reference: 30
Clamp (6h1)
Diagram Reference: 31
Grommet
Diagram Reference: 32
Adapter
Diagram Reference: 33
Plate
Diagram Reference: 34
Screw, tapping
Diagram Reference: 35
Pipe 1
Diagram Reference: 37
Clamp
Diagram Reference: 38
Joint assembly
Diagram Reference: 39
Label
Diagram Reference: 40
Plate, Mark
Diagram Reference: 42
Mark
Diagram Reference: 43
