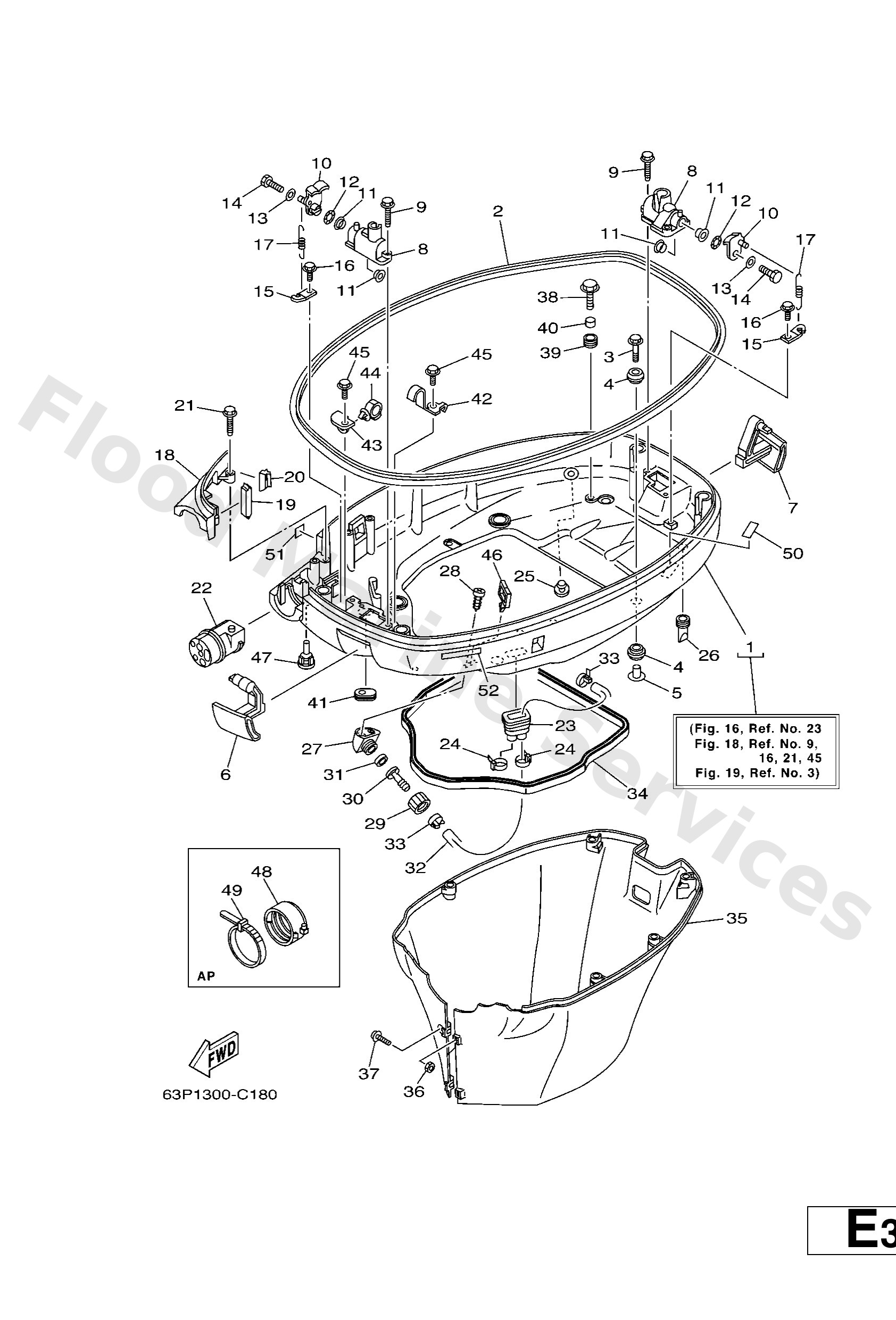

Diagram: BOTTOM COWLING
Parts List
Bottom cowling assembly
Diagram Reference: 1
Seal
Diagram Reference: 2
Bolt, with washer
Diagram Reference: 3
Grommet
Diagram Reference: 4
Coller (6e5)
Diagram Reference: 5
Lever, clamp
Diagram Reference: 6
Lever, clamp
Diagram Reference: 7
Plate, clamp
Diagram Reference: 8
Bolt
Diagram Reference: 9
Lever, clamp
Diagram Reference: 10
Bush(6l2)
Diagram Reference: 11
Washer, wave(6l2)
Diagram Reference: 12
Washer,plate (6k8)
Diagram Reference: 13
Bolt(7u8)
Diagram Reference: 14
Hook, spring
Diagram Reference: 15
Bolt
Diagram Reference: 16
Spring, tension(64d)
Diagram Reference: 17
Plate, fitting
Diagram Reference: 18
Rubber, seal 2
Diagram Reference: 19
Rubber, seal 3
Diagram Reference: 20
Grommet
Diagram Reference: 22
Grommet
Diagram Reference: 23
Clamp
Diagram Reference: 24
Nipple, hose
Diagram Reference: 25
Rubber, seal 2
Diagram Reference: 26
Adapter
Diagram Reference: 27
Screw, tapping(6k8)
Diagram Reference: 28
Joint, hose 1
Diagram Reference: 29
Joint, hose 2
Diagram Reference: 30
Gasket, hose joint
Diagram Reference: 31
Pipe 1
Diagram Reference: 32
Rubber seal 1
Diagram Reference: 34
Apron
Diagram Reference: 35
Nut(661)
Diagram Reference: 36
Screw, with washer
Diagram Reference: 37
Bolt
Diagram Reference: 38
Grommet (6e9)
Diagram Reference: 39
Coller (6e9)
Diagram Reference: 40
Grommet
Diagram Reference: 41
Stay, clamp
Diagram Reference: 43
Clamp(4ap)
Diagram Reference: 44
Clamp(4hm)
Diagram Reference: 46
Grommet
Diagram Reference: 47
Fastner
Diagram Reference: 48
Clamp
Diagram Reference: 49
Label (sparkplug mark)
Diagram Reference: 50
Plate, Mark
Diagram Reference: 52
