Yamaha Outboard Parts - BOTTOM COWLING - F2.5AMH (2003) | Flood Marine
New Search
Parts
New Outboards
Home
F2.5AMH (2003)
BOTTOM COWLING

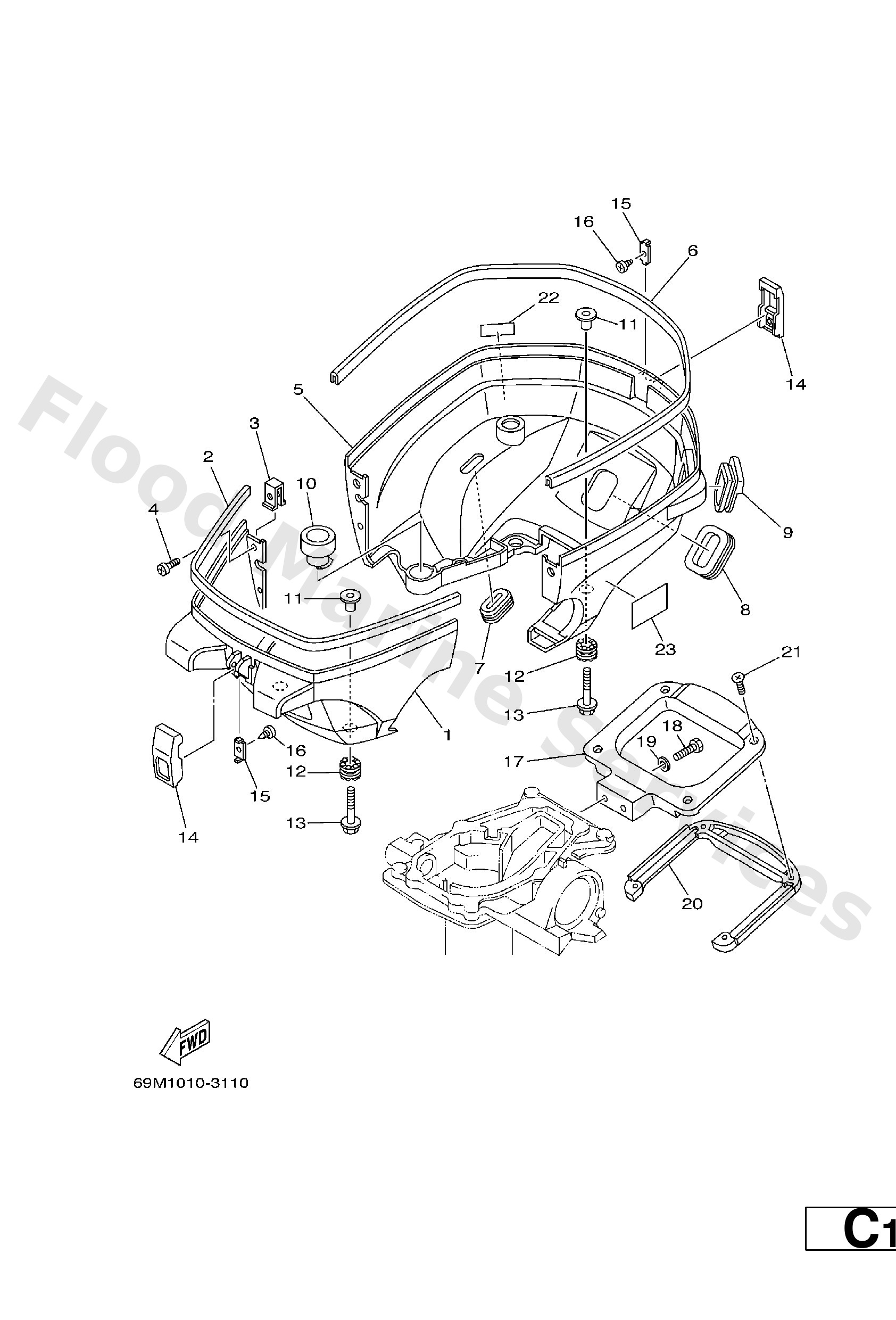

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
2
69M−42628−00
Seal
Loading…
↗
3
6L5−42774−00
Stay, apron 1
Loading…
↗
4
90157−05013
Screw, pan head
Loading…
↗
5
69M−G2712−00
Cowling, bottom 2
Loading…
↗
6
69M−42629−00
Seal
Loading…
↗
7
69M−G2727−00
Grommet
Loading…
↗
8
69M−G2724−00
Grommet
Loading…
↗
9
69M−G2725−00
Grommet
Loading…
↗
10
69M−E5316−00
Damper 1
Loading…
↗
11
69M−42758−00
Collar
Loading…
↗
12
69M−G2768−00
Damper
Loading…
↗
13
90119−06M17
Bolt, with washer
Loading…
↗
14
6L5−42647−00
Holder, clamp band
Loading…
↗
15
6L5−42823−00
Plate, stop
Loading…
↗
16
90167−03M02
Screw, tapping(6l5)
Loading…
↗
18
97095−06020
Bolt(7u8)
Loading…
↗
19
92995−06600
Washer, plain (646)
Loading…
↗
20
69M−G2735−00
Protector
Loading…
↗
21
90161−04003
Screw, tapping
Loading…
↗
22
69M−24591−00
Emblem, fuel cock
Loading…
↗
23
69M−13444−50
Mark
Loading…
↗
