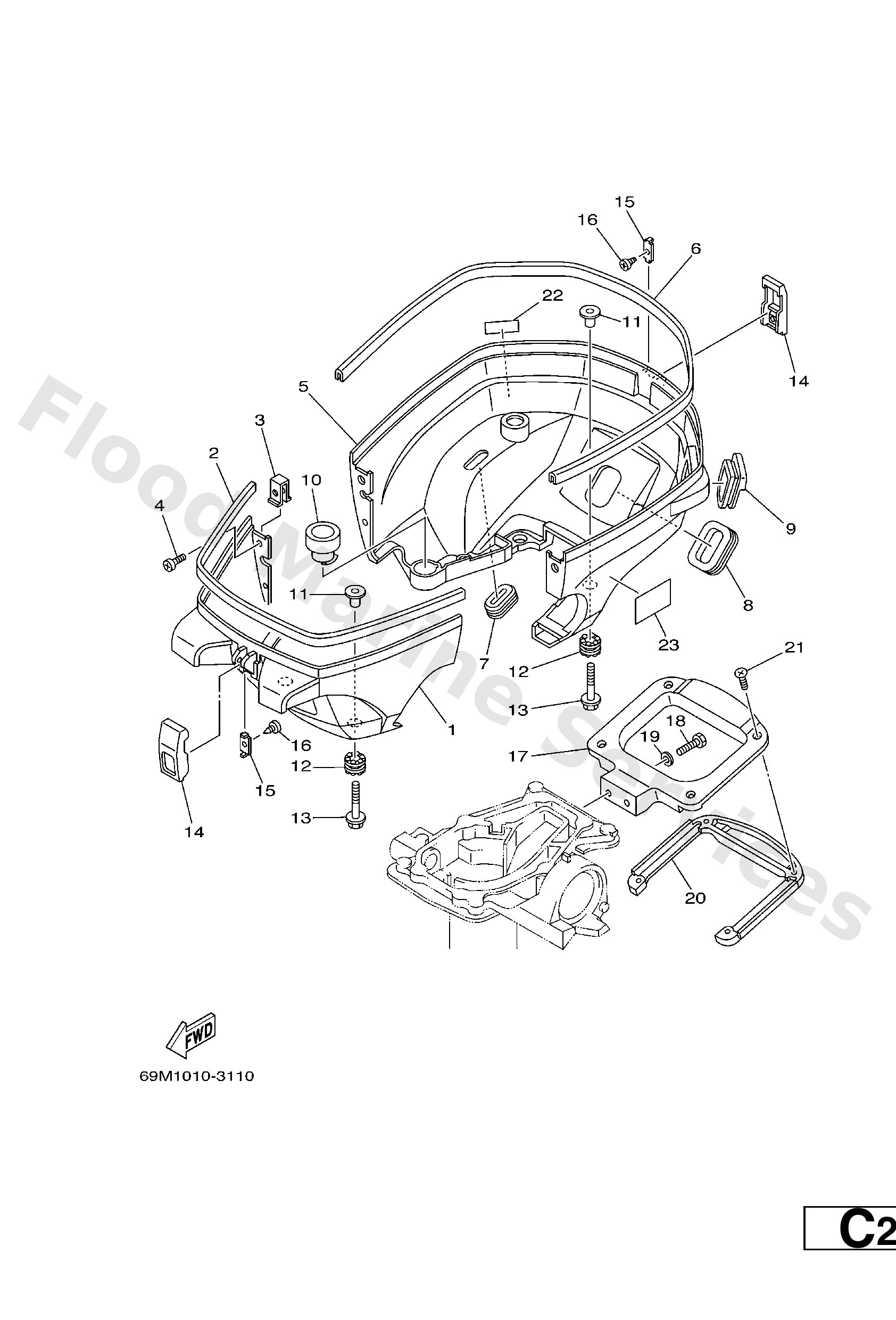

Diagram: BOTTOM COWLING
Parts List
Cowling,bottom 1
Diagram Reference: 1
Seal
Diagram Reference: 2
Stay, apron 1
Diagram Reference: 3
Screw, pan head
Diagram Reference: 4
Cowling, bottom 2
Diagram Reference: 5
Seal
Diagram Reference: 6
Grommet
Diagram Reference: 7
Grommet
Diagram Reference: 8
Grommet
Diagram Reference: 9
Damper 1
Diagram Reference: 10
Collar
Diagram Reference: 11
Damper
Diagram Reference: 12
Bolt, with washer
Diagram Reference: 13
Holder, clamp band
Diagram Reference: 14
Plate, stop
Diagram Reference: 15
Screw, tapping(6l5)
Diagram Reference: 16
Carring handle
Diagram Reference: 17
Bolt(7u8)
Diagram Reference: 18
Washer, plain (646)
Diagram Reference: 19
Protector
Diagram Reference: 20
Screw, tapping
Diagram Reference: 21
Emblem, fuel cock
Diagram Reference: 22
Mark
Diagram Reference: 23
