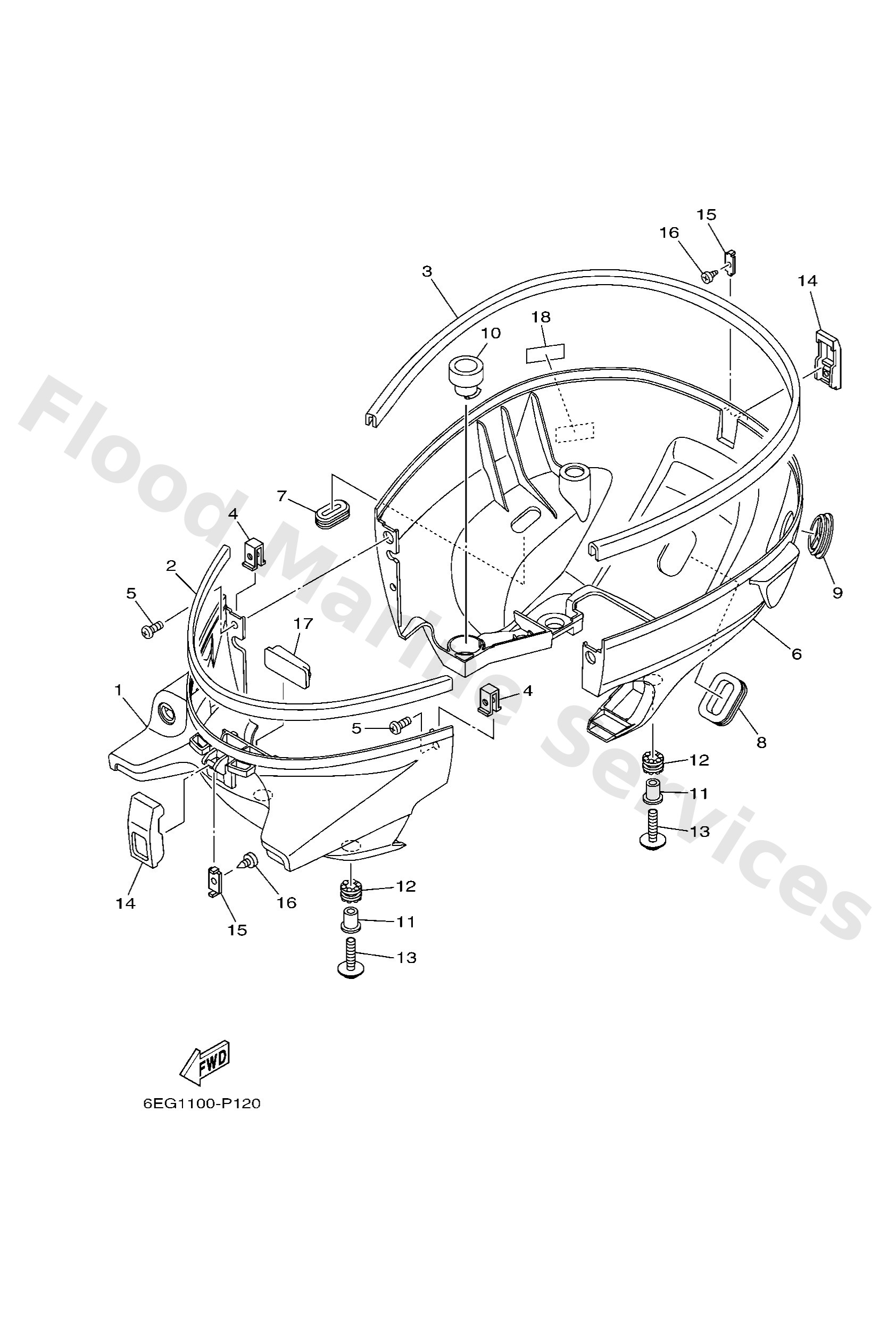

Diagram: BOTTOM COWLING
Parts List
Cowling, bottom 1
Diagram Reference: 1
Seal
Diagram Reference: 2
Seal
Diagram Reference: 3
Stay, apron 1
Diagram Reference: 4
Screw, pan head
Diagram Reference: 5
Cowling, bottom 2
Diagram Reference: 6
Grommet
Diagram Reference: 7
Grommet
Diagram Reference: 8
Cover, upper casing
Diagram Reference: 9
Damper 1
Diagram Reference: 10
Collar
Diagram Reference: 11
Damper
Diagram Reference: 12
Bolt, with washer
Diagram Reference: 13
Holder, clamp band
Diagram Reference: 14
Plate, stop
Diagram Reference: 15
Screw, tapping(6l5)
Diagram Reference: 16
Stopper, upper mou
Diagram Reference: 17
Emblem, fuel cock
Diagram Reference: 18
