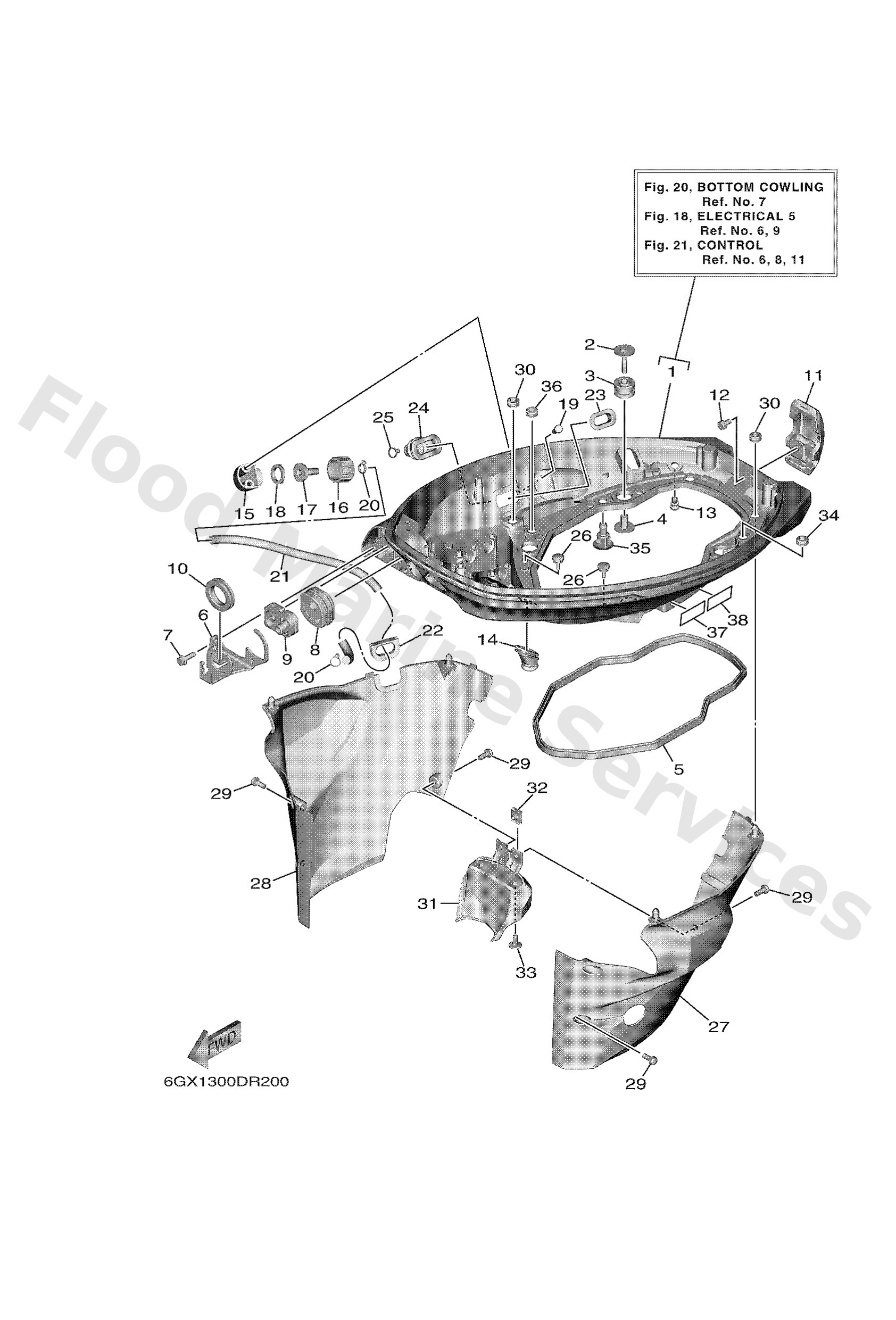

Diagram: BOTTOM COWLING

Diagram

Parts List

6FM42710008D
Bottom cowling assembly
Diagram Reference: 1
Get Part
68F8511900
Bolt
Diagram Reference: 2
Get Part
9048021M82
Grommet
Diagram Reference: 3
Get Part
9038706176
Collar
Diagram Reference: 4
Get Part
6FM4271600
Rubber, seal 1
Diagram Reference: 5
Get Part
6FM4276110
Stopper
Diagram Reference: 6
Get Part
9010906316
Bolt
Diagram Reference: 7
Get Part
6FM4272410
Grommet
Diagram Reference: 8
Get Part
6FM4272500
Grommet
Diagram Reference: 9
Get Part
6FM4272610
Grommet
Diagram Reference: 10
Get Part
6FM4280100
Cowling clamp comp.
Diagram Reference: 11
Get Part
9759506512
Bolt, hexagon w/w deep recess
Diagram Reference: 12
Get Part
6BL4439100
Nipple, hose
Diagram Reference: 13
Get Part
6AH4272700
Grommet
Diagram Reference: 14
Get Part
6DR1257200
Adapter
Diagram Reference: 15
Get Part
6R31258100
Joint, hose 1
Diagram Reference: 16
Get Part
6R31258200
Joint, hose 2
Diagram Reference: 17
Get Part
6R31258300
Gasket, hose joint
Diagram Reference: 18
Get Part
9778060520
Screw, tapping(6k8)
Diagram Reference: 19
Get Part
9046511M10
Clamp
Diagram Reference: 20
Get Part
9044511182
Hose (l370)
Diagram Reference: 21
Get Part
6AH4272600
Grommet
Diagram Reference: 22
Get Part
6BG4238400
Seal, cap
Diagram Reference: 23
Get Part
6BG4272400
Grommet
Diagram Reference: 24
Get Part
6H44274800
Grommet
Diagram Reference: 26
Get Part
6FM4274100
Apron
Diagram Reference: 27
Get Part
6FM4277100
Apron
Diagram Reference: 28
Get Part
9015906M11
Screw, with washer(6l2)
Diagram Reference: 29
Get Part
9048013M24
Grommet (6e9)
Diagram Reference: 30
Get Part
6FM4273500
Protector
Diagram Reference: 31
Get Part
90183061A8
Nut, spring
Diagram Reference: 32
Get Part
9011106144
Bolt,hex. socket button
Diagram Reference: 33
Get Part
6P24439100
Nipple, hose
Diagram Reference: 35
Get Part
6EE4279440
Label, warning (general)
Diagram Reference: 37
Get Part
6EE4279450
Label, warning (general)
Diagram Reference: 38
Get Part
