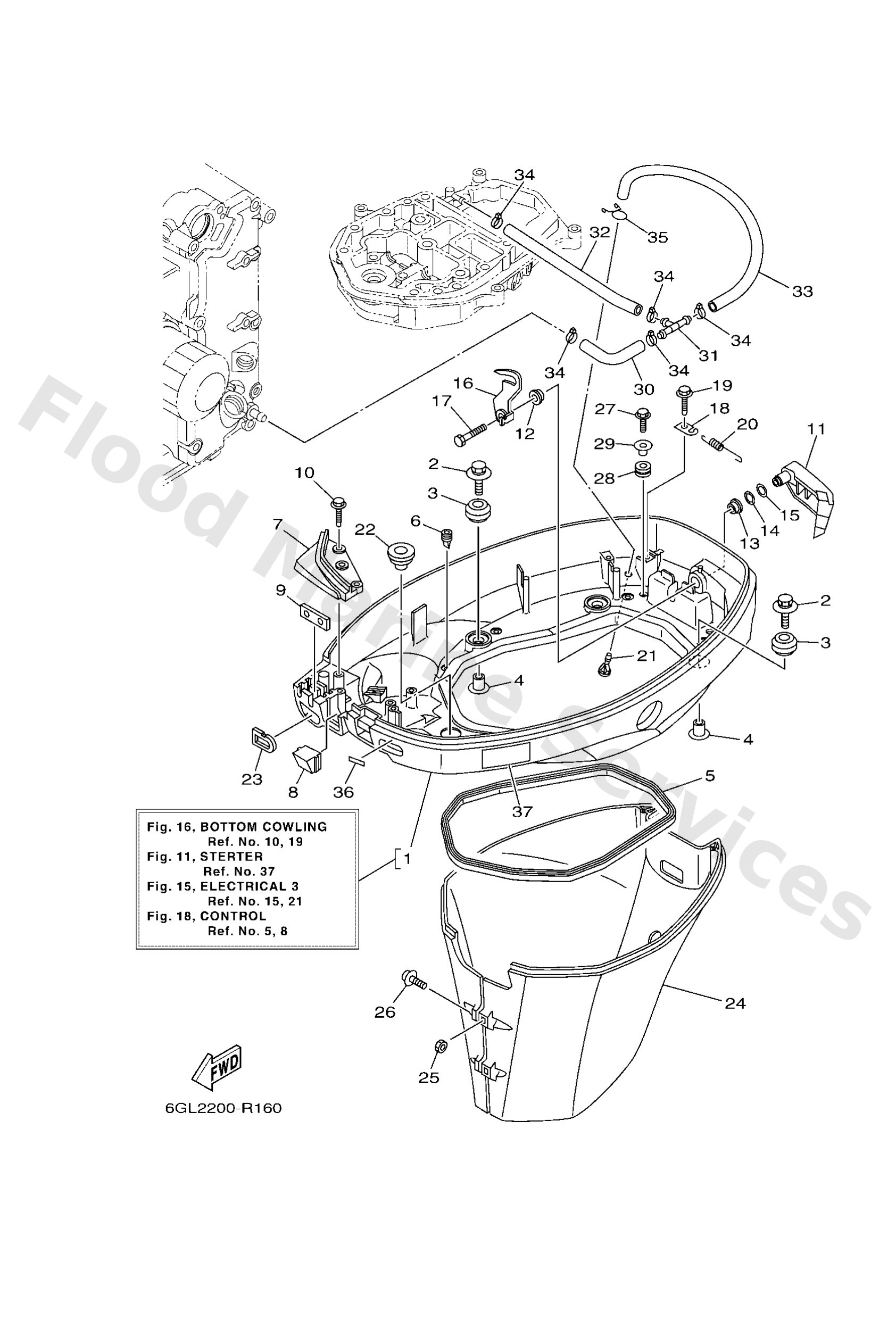

Diagram: BOTTOM COWLING

Diagram

Parts List

6GL42710008D
Bottom cowling assembly
Diagram Reference: 1
Get Part
9011906291
Bolt, with washer
Diagram Reference: 2
Get Part
6BG4274801
Grommet
Diagram Reference: 3
Get Part
9038706M69
Collar (688)
Diagram Reference: 4
Get Part
62Y4271601
Rubber seal 1
Diagram Reference: 5
Get Part
65W4271700
Rubber, seal 2
Diagram Reference: 6
Get Part
67C42738008D
Plate, fitting
Diagram Reference: 7
Get Part
67C4272501
Grommet
Diagram Reference: 8
Get Part
62Y4272701
Grommet
Diagram Reference: 9
Get Part
9010906M81
Bolt
Diagram Reference: 10
Get Part
67C42815008D
Lever, clamp
Diagram Reference: 11
Get Part
9038612M37
Bushing (6f5)
Diagram Reference: 12
Get Part
9038612MA2
Bush
Diagram Reference: 13
Get Part
9020612052
Washer, wave (666)
Diagram Reference: 14
Get Part
9020112M07
Washer, plate
Diagram Reference: 15
Get Part
67C4281601
Lever, clamp
Diagram Reference: 16
Get Part
97D9506014
Bolt, hexagon deep recess
Diagram Reference: 17
Get Part
66T4314400
Hook, spring
Diagram Reference: 18
Get Part
9010906M86
Bolt
Diagram Reference: 19
Get Part
9050618M40
Spring, tension
Diagram Reference: 20
Get Part
6BL4439100
Nipple, hose
Diagram Reference: 21
Get Part
6764272701
Grommet
Diagram Reference: 22
Get Part
61N2432901
Seal
Diagram Reference: 23
Get Part
67C42741108D
Apron
Diagram Reference: 24
Get Part
9538006600
Nut(661)
Diagram Reference: 25
Get Part
9798006325
Screw, with washer
Diagram Reference: 26
Get Part
9010906M80
Bolt
Diagram Reference: 27
Get Part
9048013M24
Grommet (6e9)
Diagram Reference: 28
Get Part
9038706M43
Coller (6e9)
Diagram Reference: 29
Get Part
6GL1257600
Hose 1
Diagram Reference: 30
Get Part
6882437800
Pipe, joint
Diagram Reference: 31
Get Part
9044509095
-
Diagram Reference: 32
Get Part
9044509104
Hose (l1500)
Diagram Reference: 33
Get Part
9046511M10
Clamp
Diagram Reference: 34
Get Part
9046708M18
Clip
Diagram Reference: 35
Get Part
67C8541500
Mark, signal lamp
Diagram Reference: 36
Get Part
6EE4279441
-
Diagram Reference: 37
Get Part
