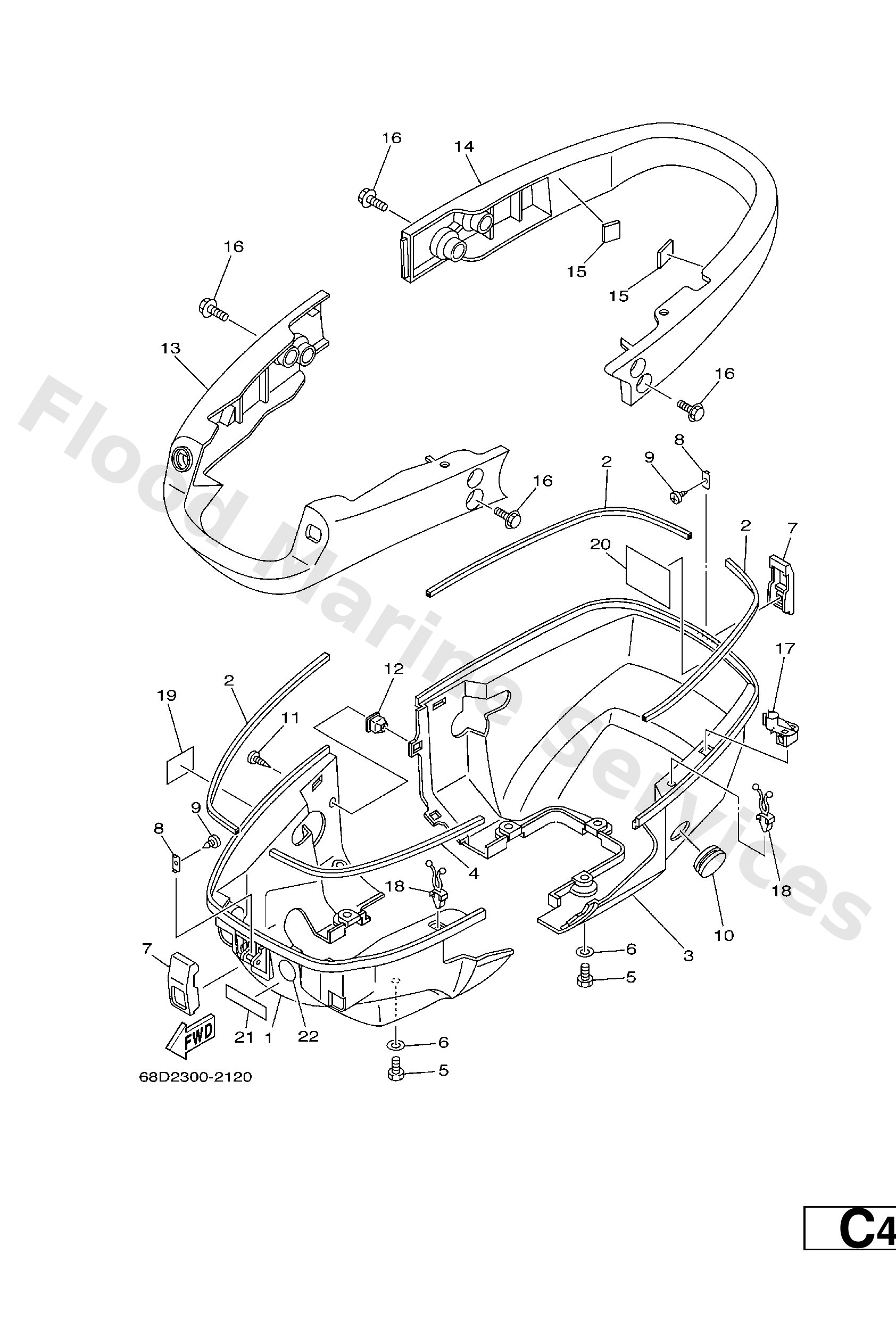

Diagram: BOTTOM COWLING

Diagram

Parts List

68DG271101
Cowling bottom 1
Diagram Reference: 1
Get Part
68DG262800
Seal rubber 1
Diagram Reference: 2
Get Part
68DG271201
Cowling bottom 2
Diagram Reference: 3
Get Part
68DG262900
Seal
Diagram Reference: 4
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 5
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 6
Get Part
6L54264700
Holder, clamp band
Diagram Reference: 7
Get Part
6L54282300
Plate, stop
Diagram Reference: 8
Get Part
9016703M02
Screw, tapping(6l5)
Diagram Reference: 9
Get Part
9048022M72
Grommet
Diagram Reference: 10
Get Part
9016105001
-
Diagram Reference: 11
Get Part
9048010004
Grommet
Diagram Reference: 12
Get Part
68DG273100
Carring, handle
Diagram Reference: 13
Get Part
68DG273500
Protector
Diagram Reference: 14
Get Part
67D4266200
Damper
Diagram Reference: 15
Get Part
9011906M79
Bolt, with washer
Diagram Reference: 16
Get Part
9046407M50
Clamp
Diagram Reference: 17
Get Part
9046407078
Clamp(81k)
Diagram Reference: 18
Get Part
67D1344450
-
Diagram Reference: 19
Get Part
68DE213860
Mark, Caution
Diagram Reference: 20
Get Part
68DH257H00
-
Diagram Reference: 21
Get Part
6G82415E00 (FOR SAV)
Label, Caution
Diagram Reference: 22
Get Part
