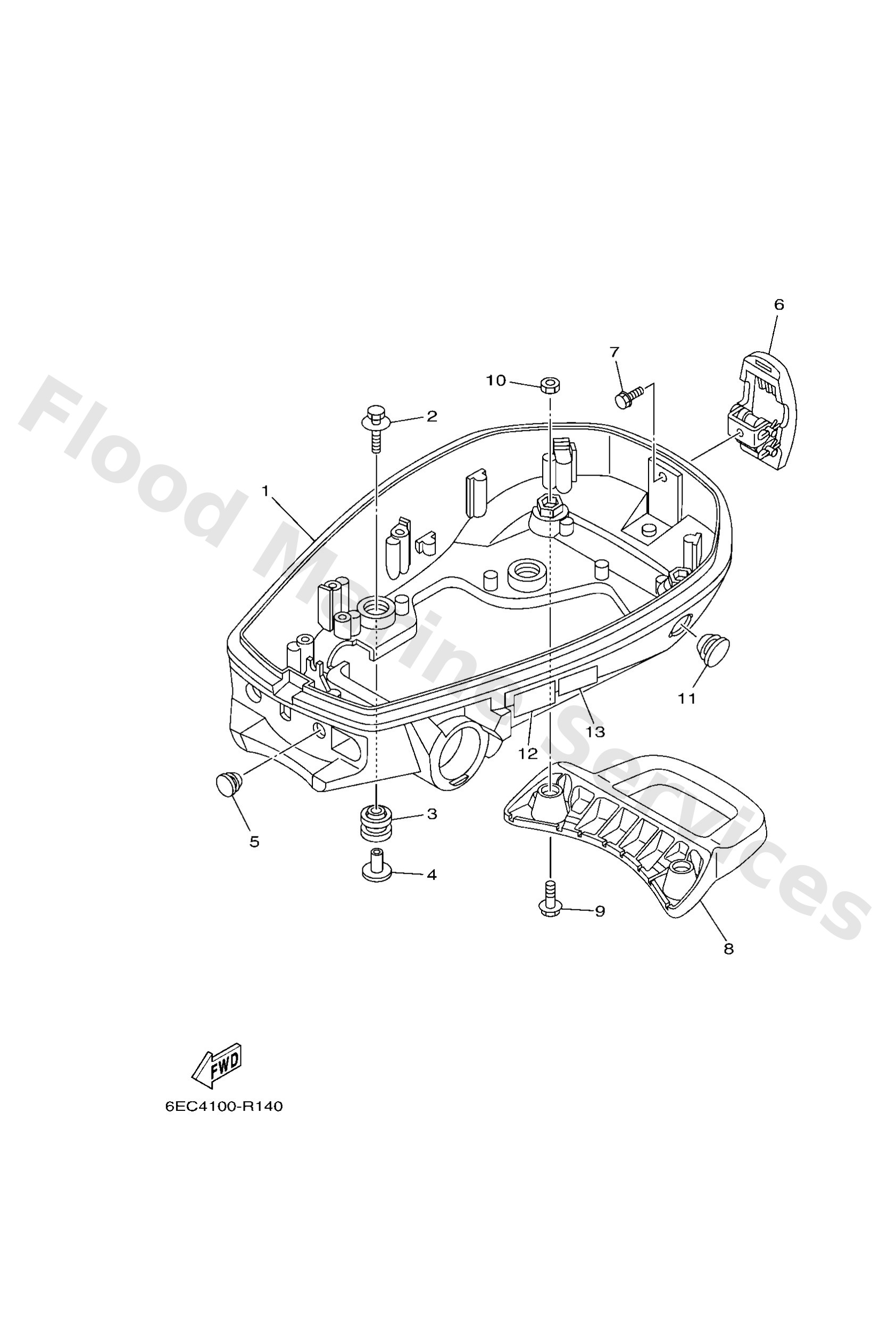

Diagram: BOTTOM COWLING

Diagram

Parts List

6EE42711008D
Cowling, Bottom 1
Diagram Reference: 1
Get Part
9011906300
Bolt, with washer
Diagram Reference: 2
Get Part
9048021M82
Grommet
Diagram Reference: 3
Get Part
9038706176
Collar
Diagram Reference: 4
Get Part
9048014M14
Grommet (6e0)
Diagram Reference: 5
Get Part
68T4280100
Cowling clamp comp.
Diagram Reference: 6
Get Part
97E9506512
Bolt, hexagon w/w deep recess
Diagram Reference: 7
Get Part
6EE4273100
Carrying handle
Diagram Reference: 8
Get Part
97E9508520
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Get Part
9538008600
Nut (661)
Diagram Reference: 10
Get Part
9048022M72
Grommet
Diagram Reference: 11
Get Part
6EE4279451
-
Diagram Reference: 12
Get Part
6EE1343760
Mark, Caution
Diagram Reference: 13
Get Part
