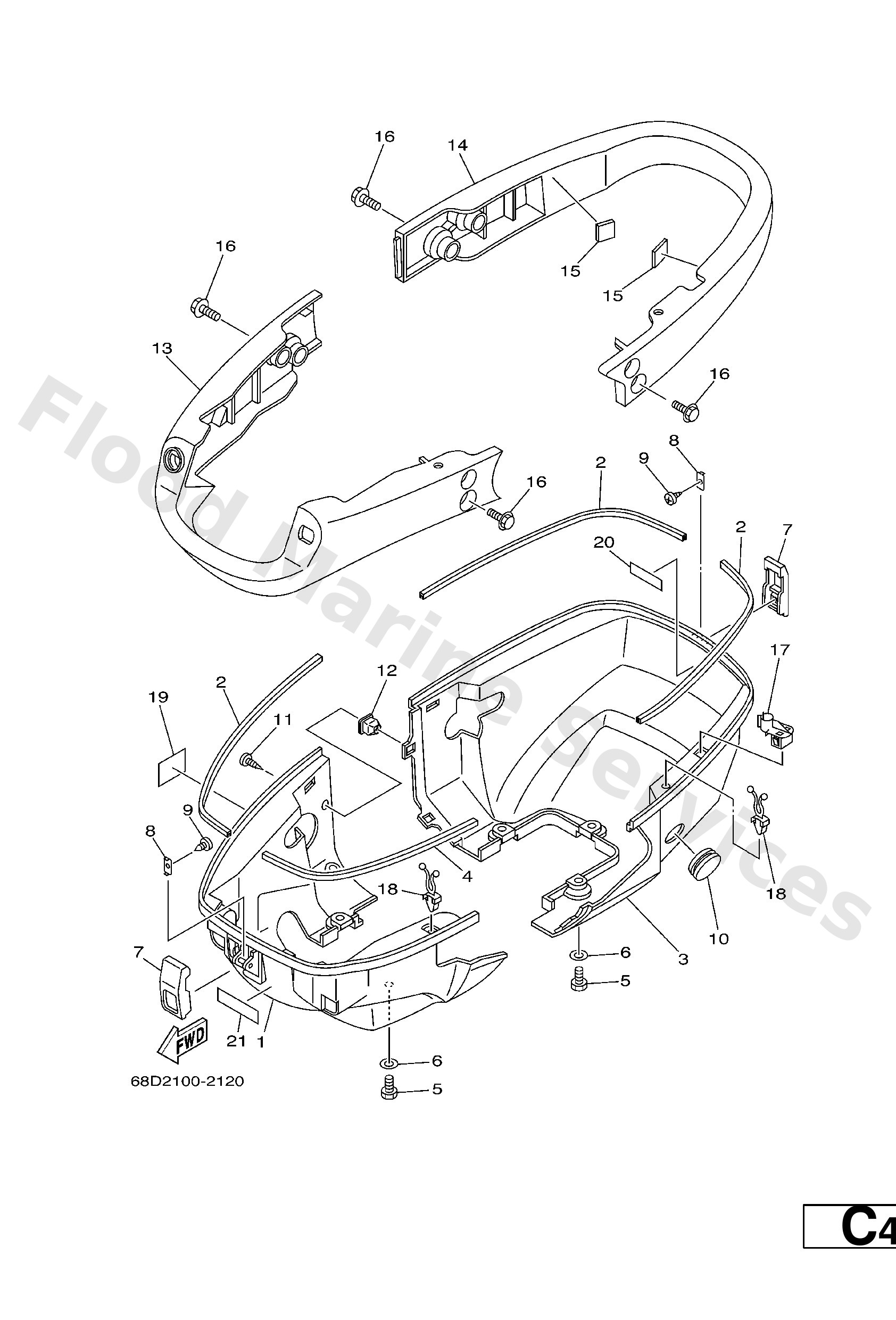

Diagram: BOTTOM COWLING

Diagram

Parts List

68D−G2711−01
Cowling bottom 1
Diagram Reference: 1
Get Part
68D−G2628−00
Seal rubber 1
Diagram Reference: 2
Get Part
68D−G2712−01
Cowling bottom 2
Diagram Reference: 3
Get Part
68D−G2629−00
Seal
Diagram Reference: 4
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 5
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 6
Get Part
6L5−42647−00
Holder, clamp band
Diagram Reference: 7
Get Part
6L5−42823−00
Plate, stop
Diagram Reference: 8
Get Part
90167−03M02
Screw, tapping(6l5)
Diagram Reference: 9
Get Part
90480−22M72
Grommet
Diagram Reference: 10
Get Part
90161−05001
12 −
Diagram Reference: 11
Get Part
90480−10004
Grommet
Diagram Reference: 12
Get Part
68D−G2731−00
Carring, handle
Diagram Reference: 13
Get Part
68D−G2735−00
Protector
Diagram Reference: 14
Get Part
67D−42662−00
Damper
Diagram Reference: 15
Get Part
90119−06M79
Bolt, with washer
Diagram Reference: 16
Get Part
90464−07M50
Clamp
Diagram Reference: 17
Get Part
90464−07078
Clamp(81k)
Diagram Reference: 18
Get Part
67D−13444−40 (FOR USA,OCEANIA)
Mark
Diagram Reference: 19
Get Part
67D−13444−50 (FOR CANADA,CARIB)
Mark
Diagram Reference: 19
Get Part
68D−E2138−40 (FOR USA,OCEANIA)
12 −
Diagram Reference: 20
Get Part
68D−E2138−50 (FOR CANADA)
12 −
Diagram Reference: 20
Get Part
68D−E2138−60 (FOR CARIB)
12 −
Diagram Reference: 20
Get Part
68D−H257H−00 (FOR CARIB)
Plate, Mark
Diagram Reference: 21
Get Part
