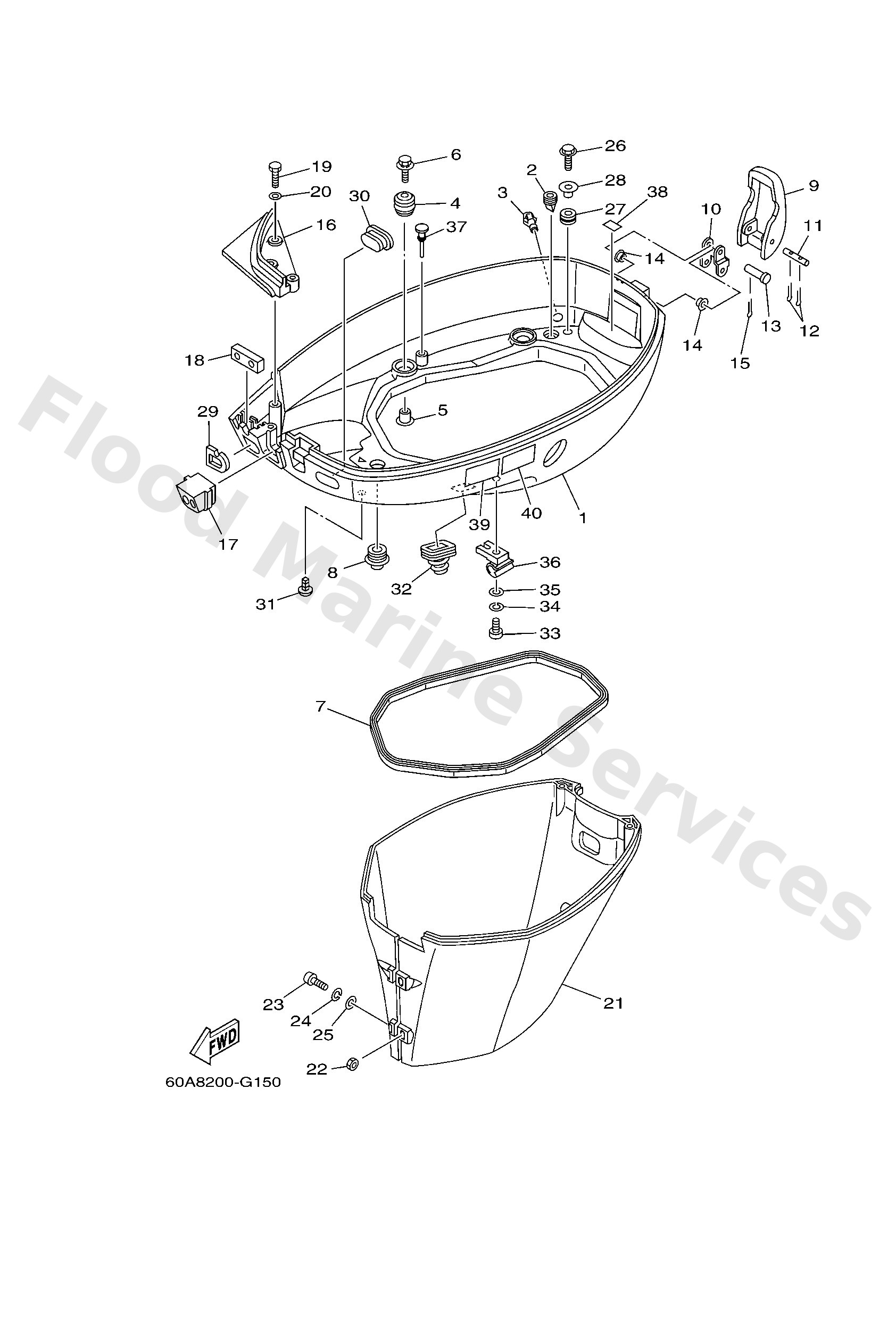

Diagram: BOTTOM COWLING
Parts List
Cowling, bottom 1
Diagram Reference: 1
Rubber, seal 2
Diagram Reference: 2
Nipple, hose
Diagram Reference: 3
Grommet
Diagram Reference: 4
Collar (688)
Diagram Reference: 5
Bolt, with washer
Diagram Reference: 6
Rubber seal 1
Diagram Reference: 7
Grommet
Diagram Reference: 8
Plate, clamp
Diagram Reference: 9
Lever, clamp
Diagram Reference: 10
Pin(62y)
Diagram Reference: 11
Pin, cotter
Diagram Reference: 12
Pin, clevis(62y)
Diagram Reference: 13
Bush 626412910000
Diagram Reference: 14
Plate, fitting
Diagram Reference: 16
Grommet
Diagram Reference: 17
Grommet
Diagram Reference: 18
Bolt(7u8)
Diagram Reference: 19
Washer, plain (646)
Diagram Reference: 20
Apron
Diagram Reference: 21
Nut(661)
Diagram Reference: 22
Screw, pan head(6b0)
Diagram Reference: 23
Washer(6a1)
Diagram Reference: 24
Washer, plain (646)
Diagram Reference: 25
Bolt
Diagram Reference: 26
Grommet (6e9)
Diagram Reference: 27
Coller (6e9)
Diagram Reference: 28
Seal
Diagram Reference: 29
Grommet
Diagram Reference: 30
Plug (6h1)
Diagram Reference: 31
Grommet
Diagram Reference: 32
Clamp(62y)
Diagram Reference: 36
Grommet
Diagram Reference: 37
Label
Diagram Reference: 38
Label, warning (ge
Diagram Reference: 39
Label, warning (ge
Diagram Reference: 40
