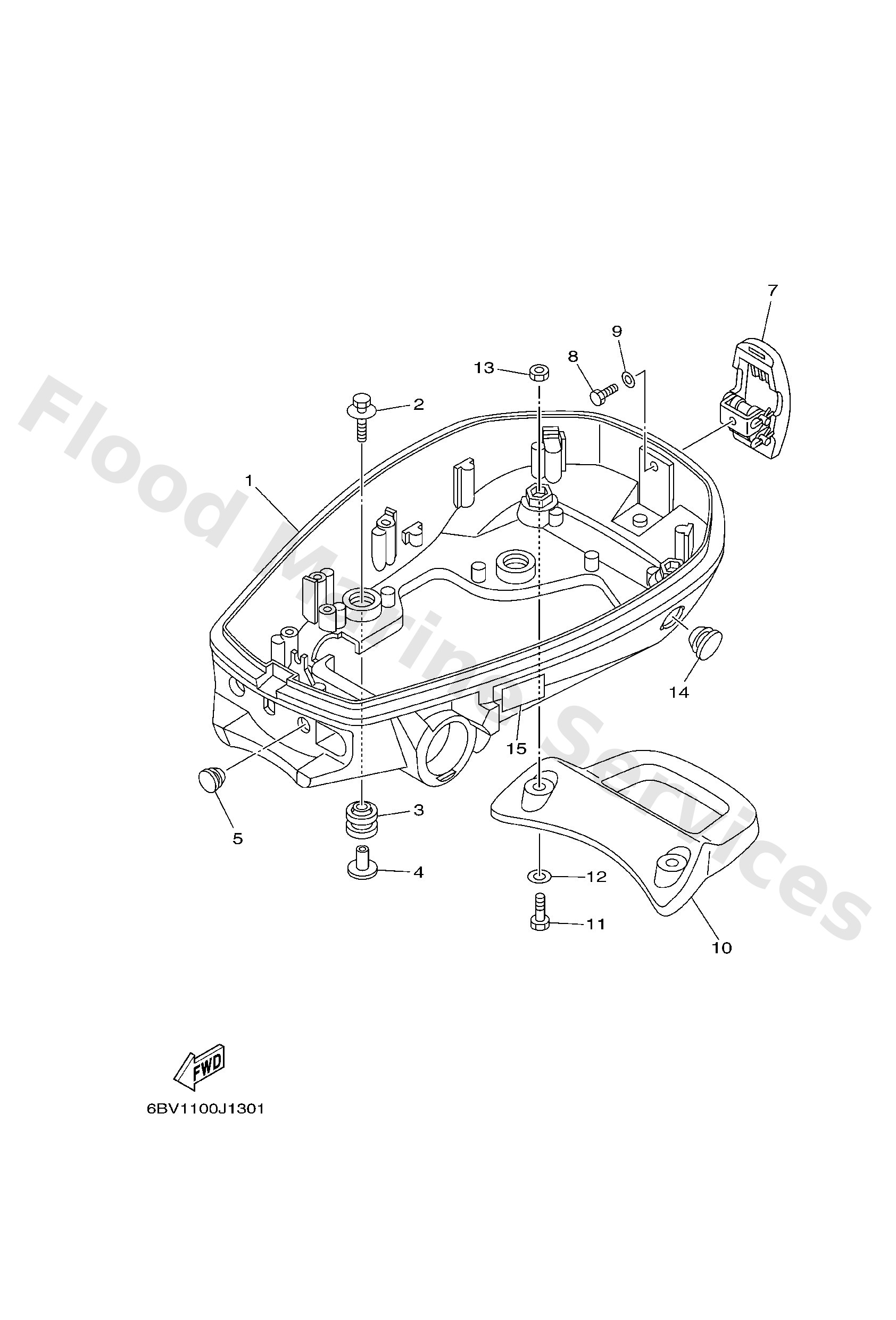

Diagram: BOTTOM COWLING
Parts List
Cowling, bottom 1
Diagram Reference: 1
Bolt
Diagram Reference: 2
Grommet
Diagram Reference: 3
Collar
Diagram Reference: 4
Grommet (6e0)
Diagram Reference: 5
Cowling clamp comp.
Diagram Reference: 7
Bolt(gh1)
Diagram Reference: 8
Washer, plain (646)
Diagram Reference: 9
Carrying handle
Diagram Reference: 10
Bolt, hexagon
Diagram Reference: 11
Washer, plain (663)
Diagram Reference: 12
Nut (661)
Diagram Reference: 13
Grommet
Diagram Reference: 14
Label, warning (ge
Diagram Reference: 15
