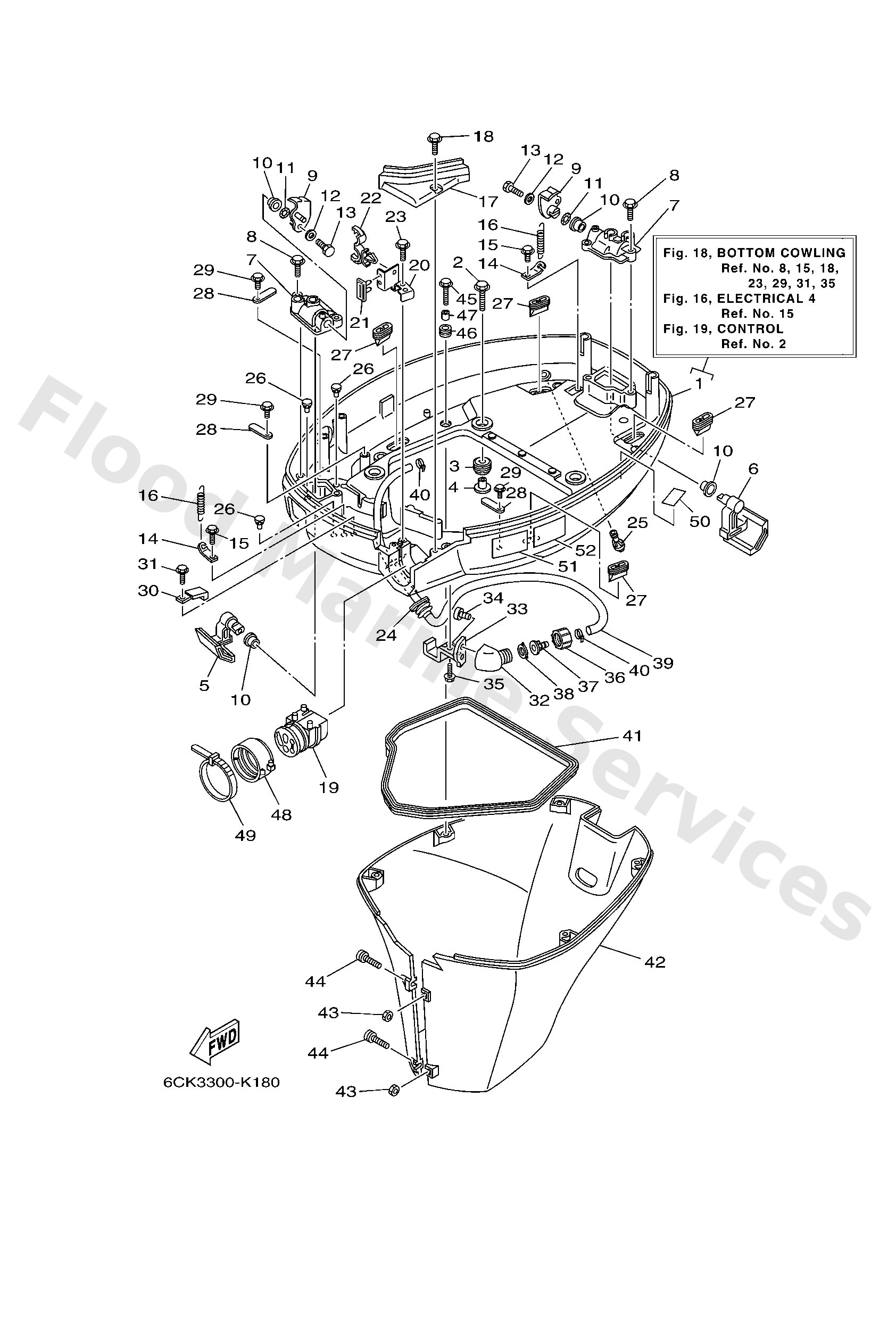

Diagram: BOTTOM COWLING
Parts List
Bottom cowling assy
Diagram Reference: 1
Grommet (6e5)
Diagram Reference: 3
Collar
Diagram Reference: 4
Lever, clamp
Diagram Reference: 5
Lever, clamp
Diagram Reference: 6
Plate, clamp
Diagram Reference: 7
Bolt
Diagram Reference: 8
Lever, clamp
Diagram Reference: 9
Bush
Diagram Reference: 10
Washer, Wave
Diagram Reference: 11
Washer,plate (6k8)
Diagram Reference: 12
Bolt
Diagram Reference: 13
Hook, spring
Diagram Reference: 14
Bolt
Diagram Reference: 35
Spring, tension(64d)
Diagram Reference: 16
Plate, fitting
Diagram Reference: 17
Bolt
Diagram Reference: 18
Grommet
Diagram Reference: 19
Stay, clamp
Diagram Reference: 20
Rubber, seal 2
Diagram Reference: 21
Clamp
Diagram Reference: 22
Grommet
Diagram Reference: 24
Nipple, hose
Diagram Reference: 25
Rubber, seal 2
Diagram Reference: 27
Plate
Diagram Reference: 28
Bolt
Diagram Reference: 29
Clamp (6h3)
Diagram Reference: 30
Adapter
Diagram Reference: 32
Plate
Diagram Reference: 33
Screw, tapping
Diagram Reference: 34
Joint, Hose 1
Diagram Reference: 36
Joint, hose 2
Diagram Reference: 37
Gasket, Hose Joint
Diagram Reference: 38
Pipe 2
Diagram Reference: 39
Clamp
Diagram Reference: 40
Rubber seal 1
Diagram Reference: 41
Apron
Diagram Reference: 42
Nut, Hexagon
Diagram Reference: 43
Screw, with washer
Diagram Reference: 44
Bolt
Diagram Reference: 45
Grommet
Diagram Reference: 46
Collar
Diagram Reference: 47
Fastner
Diagram Reference: 48
Clamp
Diagram Reference: 49
Label (sparkplug mark)
Diagram Reference: 50
Label, warning (ge
Diagram Reference: 51
Label, warning (ge
Diagram Reference: 52
