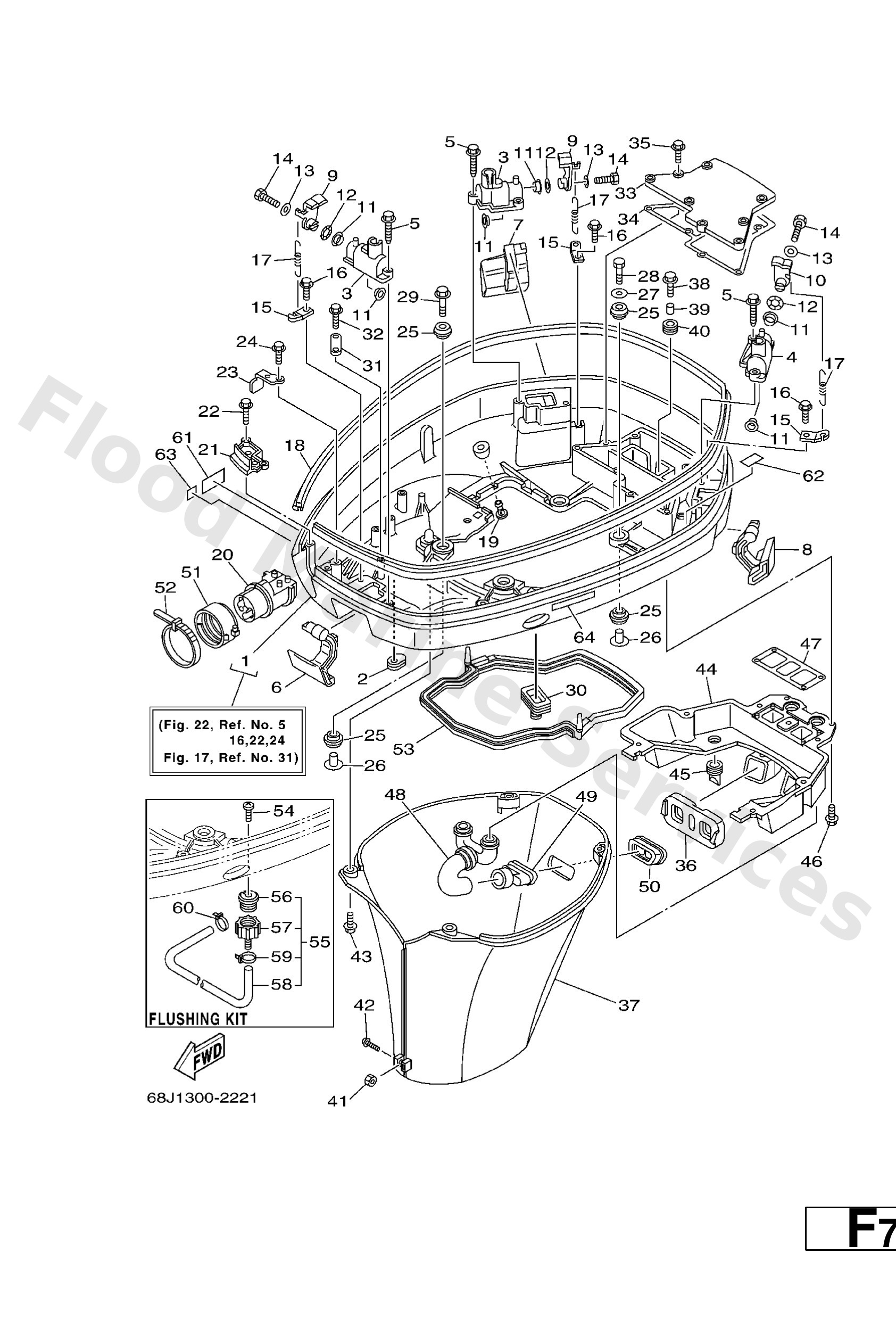

Diagram: BOTTOM COWLING

Diagram

Parts List

68F42710008D
-
Diagram Reference: 1
Get Part
61A--42727--00
Grommet
Diagram Reference: 2
Get Part
68F428280094
Plate, clamp
Diagram Reference: 3
Get Part
68F428281094
Plate, clamp
Diagram Reference: 4
Get Part
90109--06M82
Bolt
Diagram Reference: 5
Get Part
68F42815008D
Lever, clamp
Diagram Reference: 6
Get Part
68F42816008D
Lever, clamp
Diagram Reference: 7
Get Part
68F42817008D
Lever, clamp
Diagram Reference: 8
Get Part
68F4281800
Lever, clamp
Diagram Reference: 9
Get Part
67F4281800
Lever, clamp
Diagram Reference: 10
Get Part
90386--15M73
Bush(6l2)
Diagram Reference: 11
Get Part
90206--15M18
Washer, wave(6l2)
Diagram Reference: 12
Get Part
90201--06068
Washer,plate (6k8)
Diagram Reference: 13
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 14
Get Part
64D--43144--00
Hook, spring
Diagram Reference: 15
Get Part
90109--06M80
Bolt
Diagram Reference: 16
Get Part
90506--16M34
Spring, tension(64d)
Diagram Reference: 17
Get Part
68F4261500
Seal
Diagram Reference: 18
Get Part
6E5--44391--00
Nipple, hose
Diagram Reference: 19
Get Part
68F4272501
Grommet
Diagram Reference: 20
Get Part
68F42738005B
Plate, fitting
Diagram Reference: 21
Get Part
90109--06M86
Bolt
Diagram Reference: 22
Get Part
64D--42738--10--5B
Plate, fitting
Diagram Reference: 23
Get Part
90480--22M81
Grommet
Diagram Reference: 25
Get Part
90387--08M37
Coller (6e5)
Diagram Reference: 26
Get Part
90201--08M54
Washer, plate (6e5)
Diagram Reference: 27
Get Part
97075--08035
Bolt(70w)
Diagram Reference: 28
Get Part
90119--08M22
Bolt, with washer
Diagram Reference: 29
Get Part
688--42726--10
Grommet
Diagram Reference: 30
Get Part
6E5--82588--00
Plate
Diagram Reference: 31
Get Part
95895--06020
Bolt, flange(jk3)
Diagram Reference: 32
Get Part
68F427230094
Cover, bottom
Diagram Reference: 33
Get Part
68F4272100
Gasket 1
Diagram Reference: 34
Get Part
68F4276900
Seal, Rubber
Diagram Reference: 36
Get Part
68F42741004D (L)
Apron
Diagram Reference: 37
Get Part
90387--06M43
Coller (6e9)
Diagram Reference: 39
Get Part
90480--13M24
Grommet (6e9)
Diagram Reference: 40
Get Part
95380--06600
Nut(661)
Diagram Reference: 41
Get Part
90159--06M03
Screw (6g5)
Diagram Reference: 42
Get Part
95895--06016
Bolt, flange deep recess
Diagram Reference: 43
Get Part
68F4277100
Apron
Diagram Reference: 44
Get Part
61A--42717--00
Rubber, seal 2
Diagram Reference: 45
Get Part
68F4272200
Gasket 2
Diagram Reference: 47
Get Part
68F1257700 (L)
Hose 2
Diagram Reference: 48
Get Part
68F1258201 (L)
Joint, hose 2
Diagram Reference: 49
Get Part
68F4271800
Rubber, seal 3
Diagram Reference: 50
Get Part
68F--42753--00
Fastner
Diagram Reference: 51
Get Part
90464--20258
Clamp
Diagram Reference: 52
Get Part
6E5--42716--10
Rubber seal 1
Diagram Reference: 53
Get Part
90169--05M00
Screw truss head tapping
Diagram Reference: 54
Get Part
6R3Y125J70
Flushing kit
Diagram Reference: 55
Get Part
6R31257200
Adapter
Diagram Reference: 56
Get Part
6R31258000
Joint assembly
Diagram Reference: 57
Get Part
9044511M35
Hose (l700)
Diagram Reference: 58
Get Part
9046511M10
Clamp
Diagram Reference: 59
Get Part
68F2415E60
Label, Caution
Diagram Reference: 61
Get Part
68H4279101
Mark 1
Diagram Reference: 62
Get Part
6A1--28176--00
Label, Caution
Diagram Reference: 63
Get Part
6E3--8257H--00
Plate, Mark
Diagram Reference: 64
Get Part
