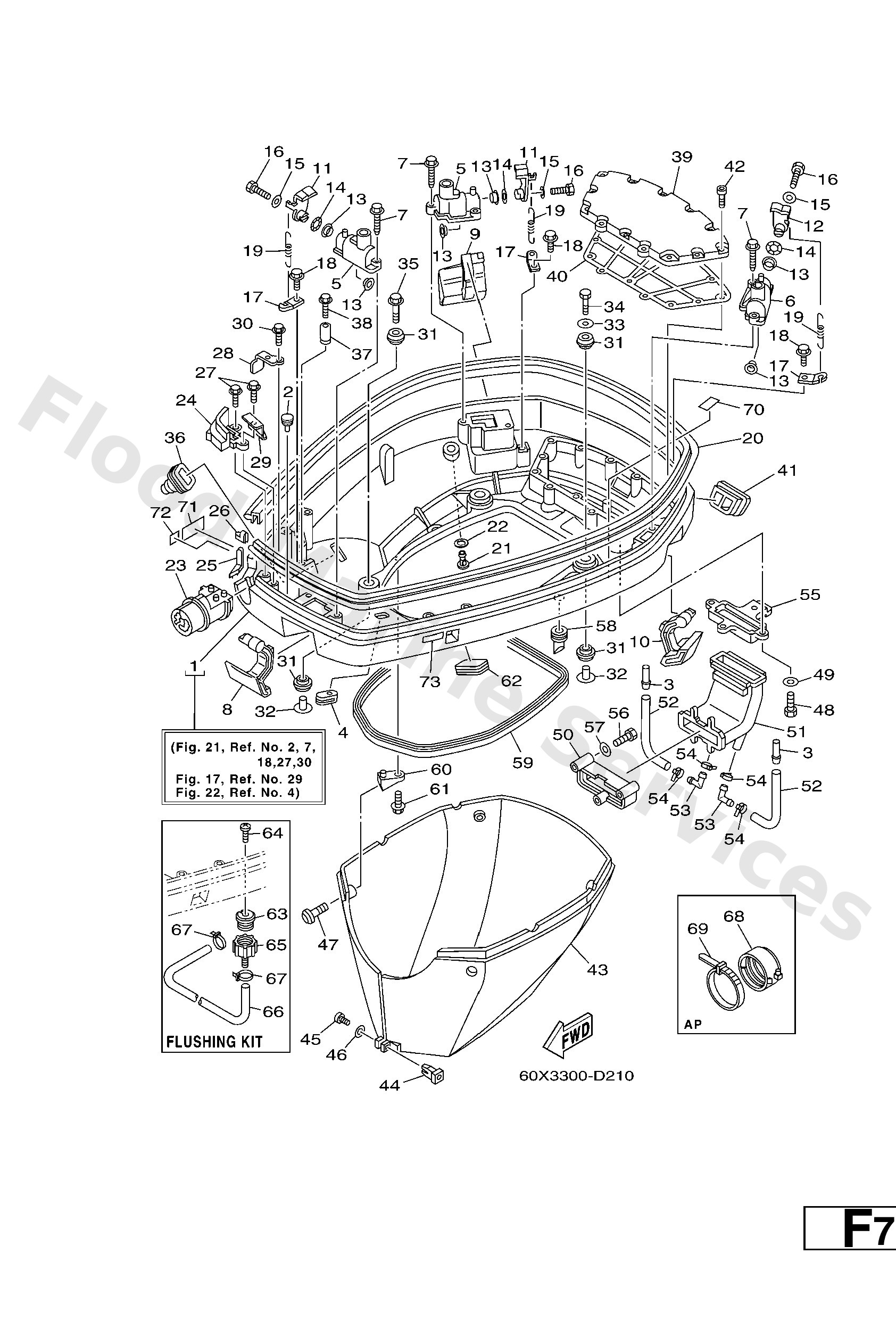

Diagram: BOTTOM COWLING

Diagram

Parts List

60V42710018D
Bottom cowling assembly
Diagram Reference: 1
Get Part
6H44274800
Grommet
Diagram Reference: 2
Get Part
6E52437700
Pipe, joint
Diagram Reference: 3
Get Part
61A4272700
Grommet
Diagram Reference: 4
Get Part
68F428280194
Plate, clamp
Diagram Reference: 5
Get Part
68F428281094
Plate, clamp
Diagram Reference: 6
Get Part
9010906M82
Bolt
Diagram Reference: 7
Get Part
60V42815008D
Lever, Clamp
Diagram Reference: 8
Get Part
60V42816008D
Lever, clamp
Diagram Reference: 9
Get Part
60V42817008D
Lever, clamp
Diagram Reference: 10
Get Part
68F4281801
Lever, clamp
Diagram Reference: 11
Get Part
6D84281800
Lever, clamp
Diagram Reference: 12
Get Part
9038615M73
Bush(6l2)
Diagram Reference: 13
Get Part
9020615M18
Washer, wave(6l2)
Diagram Reference: 14
Get Part
9020106068
Washer,plate (6k8)
Diagram Reference: 15
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 16
Get Part
64D4314400
Hook, spring
Diagram Reference: 17
Get Part
9010906M80
Bolt
Diagram Reference: 18
Get Part
9050616M34
Spring, tension(64d)
Diagram Reference: 19
Get Part
60V4261501
Seal
Diagram Reference: 20
Get Part
60V4439100
Nipple, Hose
Diagram Reference: 21
Get Part
60V4274700
Pad
Diagram Reference: 22
Get Part
60V4272500
Grommet
Diagram Reference: 23
Get Part
60V42738028D
Plate, fitting
Diagram Reference: 24
Get Part
60V4271601
Rubber, seal 1
Diagram Reference: 25
Get Part
60V4271700
Rubber, seal 2
Diagram Reference: 26
Get Part
9010906M81
Bolt
Diagram Reference: 27
Get Part
64D42738105B
Plate, fitting
Diagram Reference: 28
Get Part
60V4273810
Plate, Fitting
Diagram Reference: 29
Get Part
9048022M81
Grommet
Diagram Reference: 31
Get Part
9038708M37
Coller (6e5)
Diagram Reference: 32
Get Part
9020108M54
Washer, plate (6e5)
Diagram Reference: 33
Get Part
9707508035
Bolt(70w)
Diagram Reference: 34
Get Part
9011908M22
Bolt, with washer
Diagram Reference: 35
Get Part
6884272610
Grommet
Diagram Reference: 36
Get Part
6E58258800
Plate
Diagram Reference: 37
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 38
Get Part
60V42723005B
Cover, bottom
Diagram Reference: 39
Get Part
60V42721A0
Gasket 1
Diagram Reference: 40
Get Part
60V4271800
Rubber, seal 3
Diagram Reference: 41
Get Part
9011006038
Bolt, hexagon socket head
Diagram Reference: 42
Get Part
60V42741008D
Apron
Diagram Reference: 43
Get Part
60V4275600
Stay, clamp
Diagram Reference: 44
Get Part
9788004016
Screw, with washer(61b)
Diagram Reference: 45
Get Part
9299004600
Washer, plain (646)
Diagram Reference: 46
Get Part
9011106034
Bolt,hex. socket button
Diagram Reference: 47
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 48
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 49
Get Part
60V1258100
Joint, hose 1
Diagram Reference: 50
Get Part
60V1257600
Hose 1
Diagram Reference: 51
Get Part
60V1258800
Hose 5
Diagram Reference: 52
Get Part
60X2437600
Pipe, joint 1
Diagram Reference: 53
Get Part
9046511M10 (FLUSHING KIT)
Clamp
Diagram Reference: 67
Get Part
60V4277100
Apron
Diagram Reference: 55
Get Part
9707508055
-
Diagram Reference: 56
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 57
Get Part
61A4271700
Rubber, seal 2
Diagram Reference: 58
Get Part
61A4271600
Rubber seal 1
Diagram Reference: 59
Get Part
60V4277400
Stay, Apron 1
Diagram Reference: 60
Get Part
9589506016
Bolt, flange deep recess
Diagram Reference: 61
Get Part
6H44272600
Grommet
Diagram Reference: 62
Get Part
6R31257200 (FLUSHING KIT)
Adapter
Diagram Reference: 63
Get Part
9016905M00 (FLUSHING KIT)
Screw truss head tapping
Diagram Reference: 64
Get Part
6R31258000 (FLUSHING KIT)
Joint assembly
Diagram Reference: 65
Get Part
9044511M36 (FLUSHING KIT)
Hose (l700)
Diagram Reference: 66
Get Part
68F4275300 (AP)
Fastner
Diagram Reference: 68
Get Part
9046420258 (AP)
Clamp
Diagram Reference: 69
Get Part
68H4279101
Mark 1
Diagram Reference: 70
Get Part
60V2415E60
Label, Caution
Diagram Reference: 71
Get Part
6A12817600
-
Diagram Reference: 72
Get Part
6E38257H00
Plate, Mark
Diagram Reference: 73
Get Part
