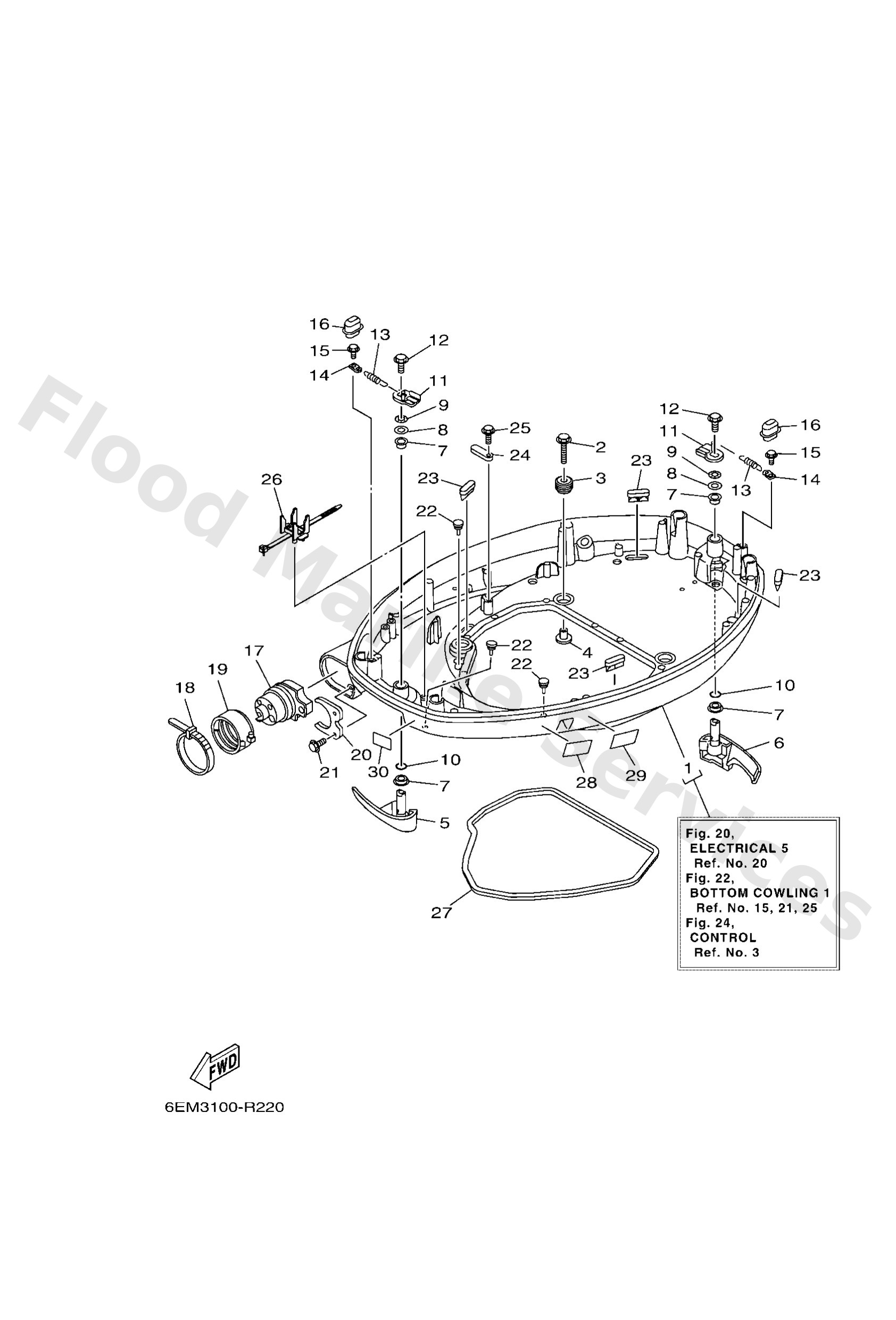

Diagram: BOTTOM COWLING 1
Parts List
Bottom cowling assembly
Diagram Reference: 1
Bolt, with washer
Diagram Reference: 2
Grommet (6e5)
Diagram Reference: 3
Coller (6e5)
Diagram Reference: 4
Lever, clamp
Diagram Reference: 5
Lever, clamp
Diagram Reference: 6
Bush(6l2)
Diagram Reference: 7
Washer, plate(j41)
Diagram Reference: 8
Washer, wave(6l2)
Diagram Reference: 9
O-ring (6g8)
Diagram Reference: 10
Lever, clamp
Diagram Reference: 11
Bolt, flange deep recess
Diagram Reference: 12
Spring, tension
Diagram Reference: 13
Hook, spring
Diagram Reference: 14
Bolt
Diagram Reference: 15
Cap
Diagram Reference: 16
Grommet
Diagram Reference: 17
Clamp
Diagram Reference: 18
Fastner
Diagram Reference: 19
Stopper
Diagram Reference: 20
Grommet
Diagram Reference: 22
Rubber, seal 2
Diagram Reference: 23
Plate
Diagram Reference: 24
Bolt
Diagram Reference: 25
Clamp
Diagram Reference: 26
Rubber seal 1
Diagram Reference: 27
Label, warning (general)
Diagram Reference: 28
Label, warning (general)
Diagram Reference: 29
Mark
Diagram Reference: 30
